Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

A photo diode in the solar sensor detects solar radiation and sends signals to the integration control and panel.

Fig 1: Graphing Photo Diode Resistance To Detected Solar Radiation Relationship
G01118893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

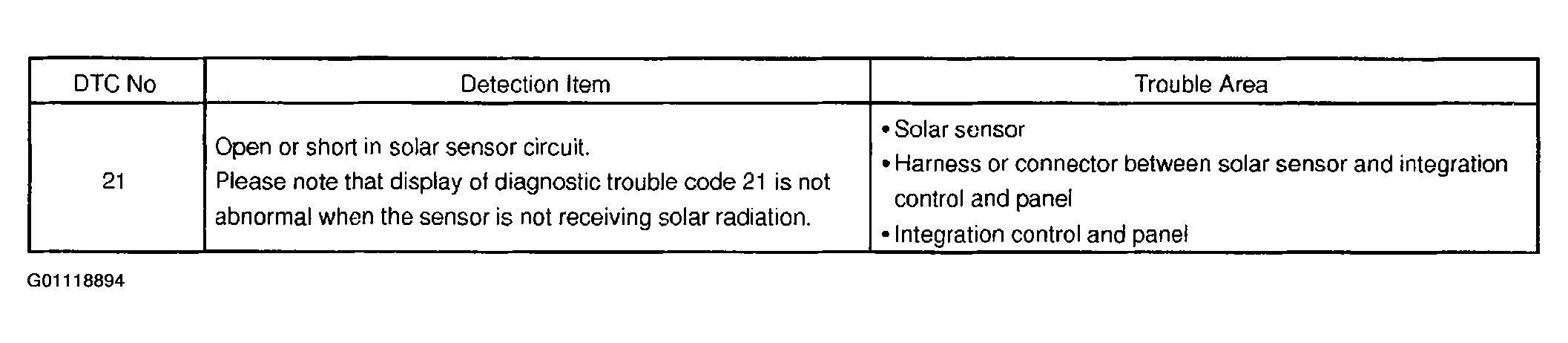

Fig 2: DTC 21 Detected Conditions & Trouble Areas
G01118894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
