Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the rear evaporator temperature and sends the appropriate signals to the integration control and panel.

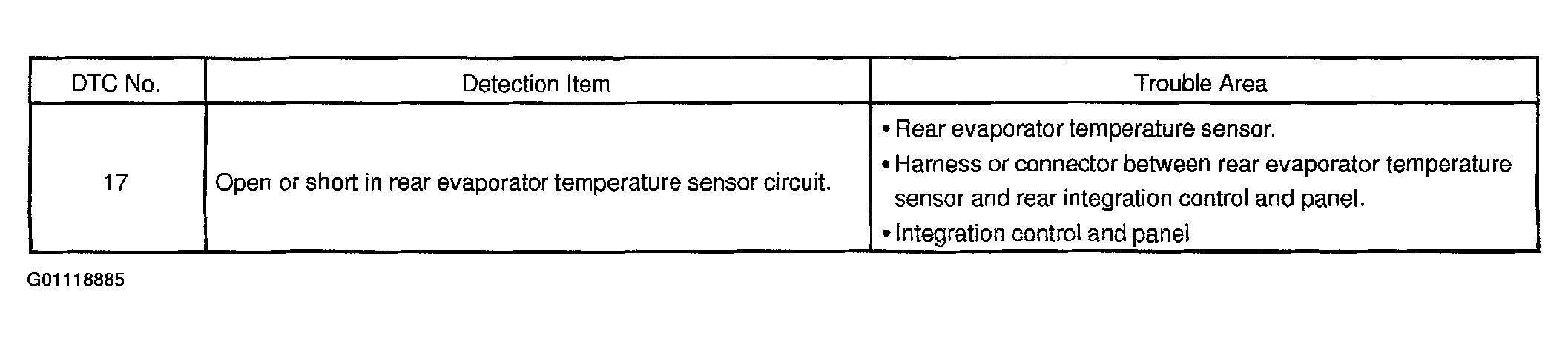

Fig 1: DTC 17 Detected Conditions & Trouble Areas
G01118885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
