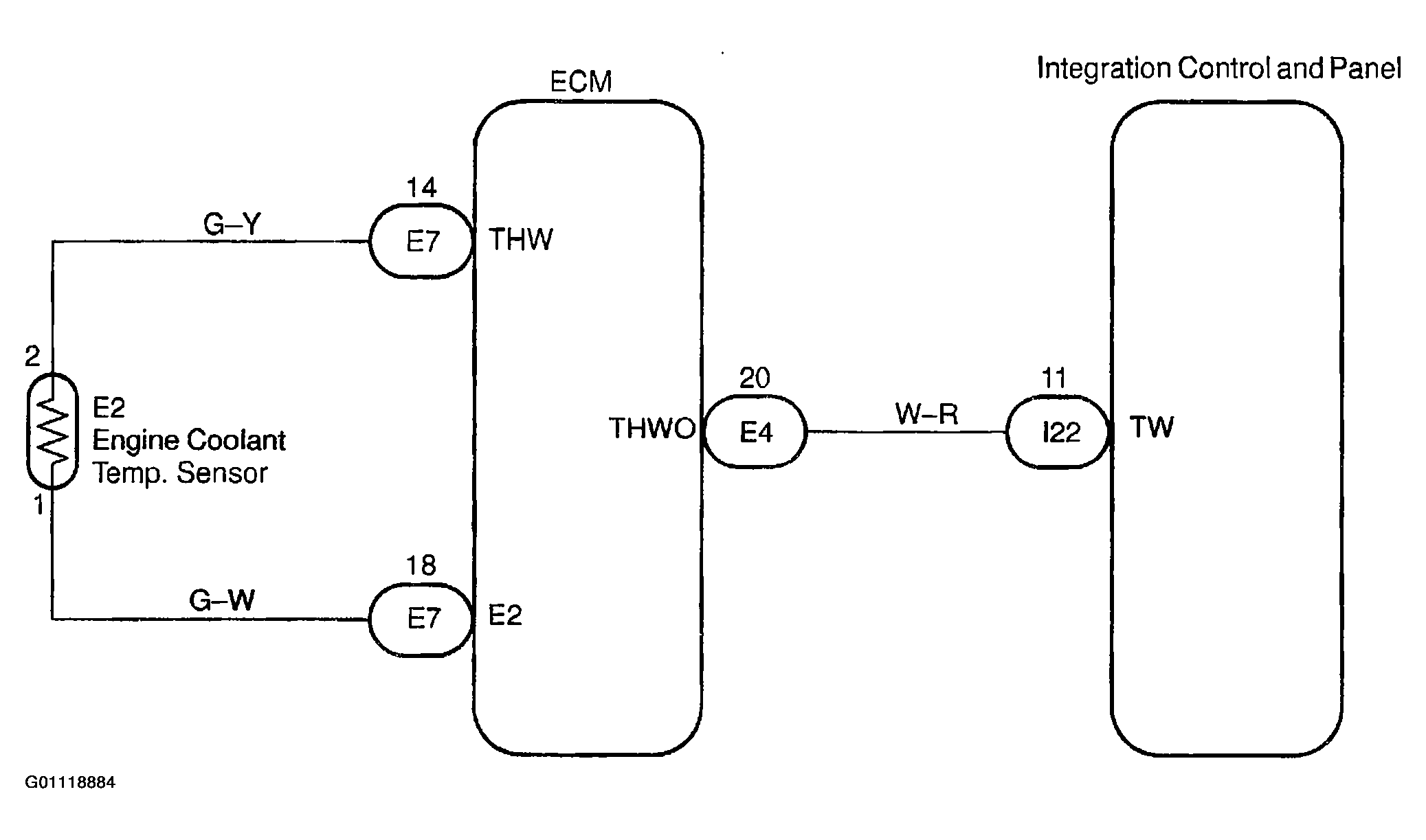

DTC 14: Engine Coolant Temperature Sensor Circuit: Wiring Diagram
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
For complete AC system wiring diagrams, see AIR CONDITIONING in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
