Circuit Description
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

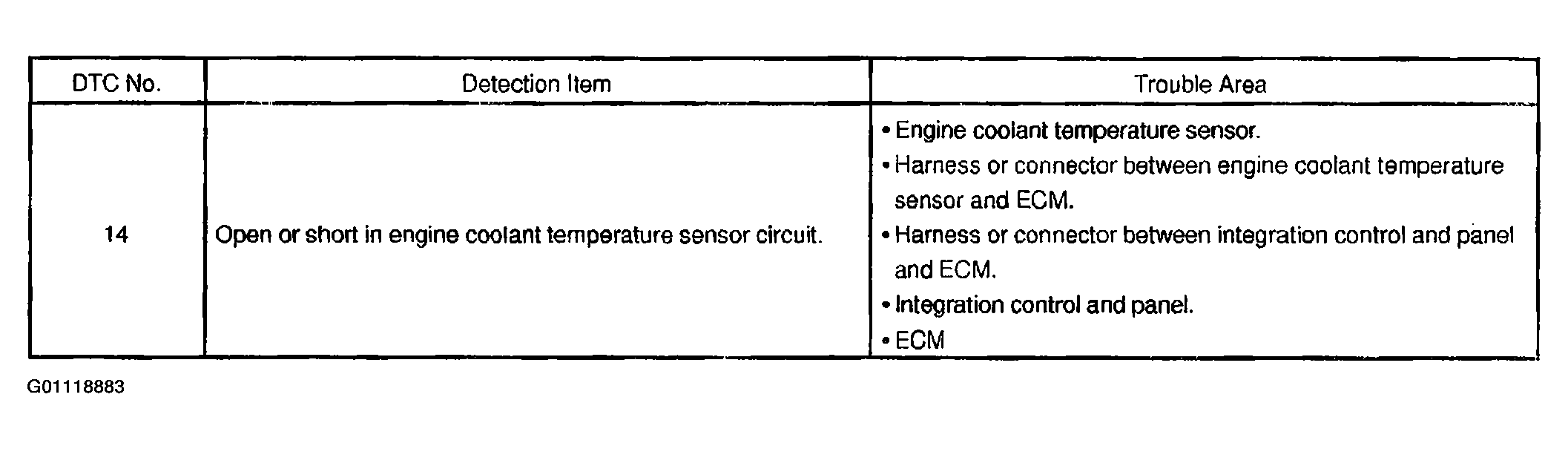

This sensor detects the engine coolant temperature and sends the appropriate signals to the integration control and panel. These signals are used for warm up control when engine is cold.
