Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the ambient temperature and sends the appropriate signals to the integration control and panel.

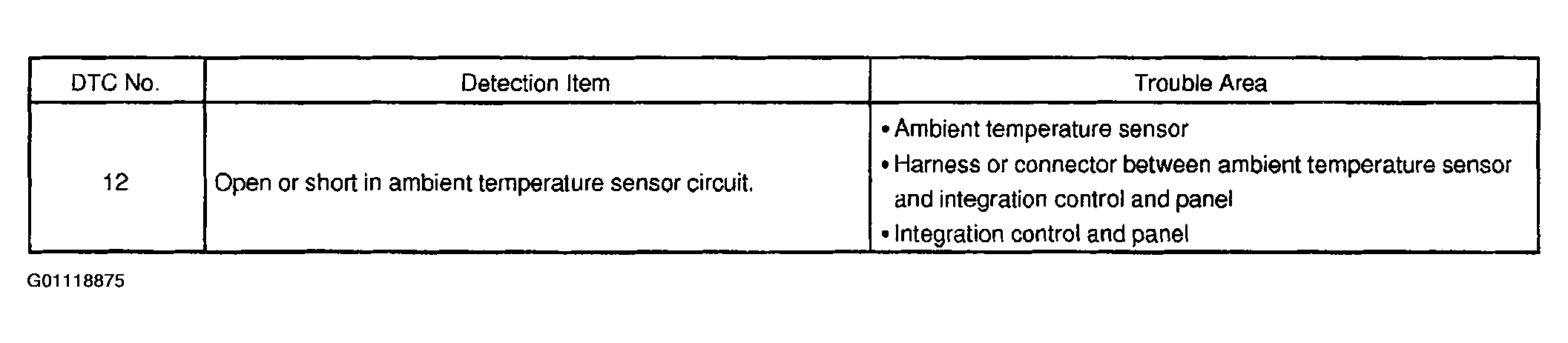

Fig 1: DTC 12 Detected Conditions & Trouble Areas
G01118875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
