Circuit Description

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature inside the cabin and sends the appropriate signals to the integration control and panel.

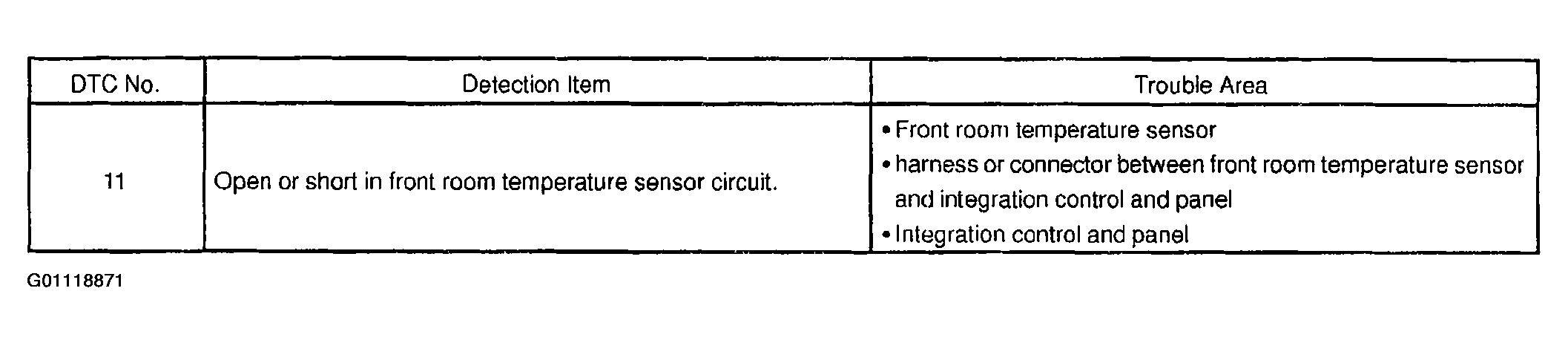

Fig 1: DTC 11 Detected Conditions & Trouble Areas
G01118871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
