THERMISTOR (for Rear A/C): Inspection

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove side heater cover  .
  2. Remove thermistor  :
    1. Disconnect the connector and connector clamp. See Fig 1.
      2. CAUTION: Tape the screwdriver tip before use.

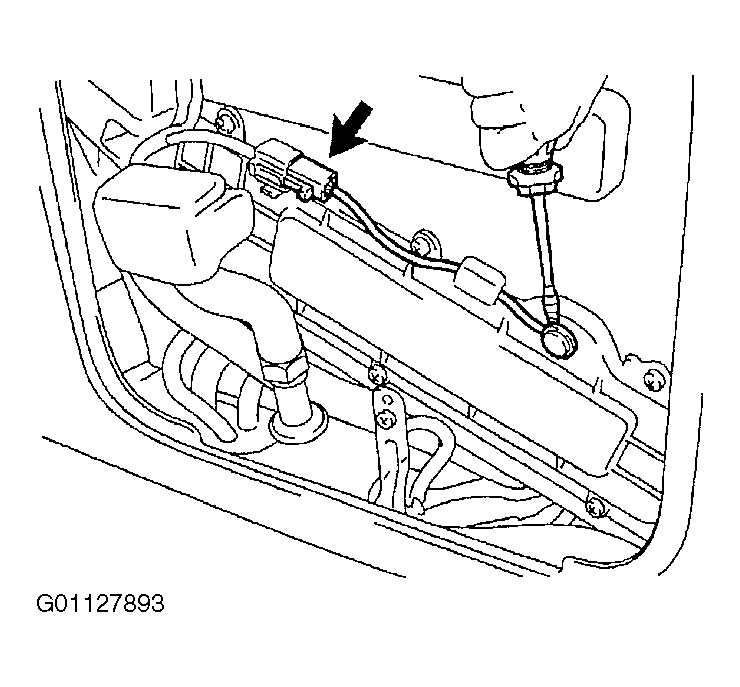

      Fig 1: Removing Thermistor (Rear)
      G01127893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pull out the sensor
    3. Release the 2 claws and remove the sensor from bracket plate. See Fig 2.
  3. Inspect thermistor .
  4. Install thermistor  .
  5. Install side heater cover  .
    Fig 2: Locating Bracket Plate Claws
    G01127894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
