Rear A/C Expansion Valve: Removal

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE:

    At the time of installation, please refer to the following item. Evacuate air from refrigeration system.

    Charge system with refrigerant and inspect the leakage of refrigerant.

    Specified amount:

    Dual A/C: 1050 +/- 50 g (37.03 +/- 1.76 oz.)

  1. Discharge refrigerant from refrigeration system  .
    2. NOTE: It is not necessary to drain out all coolant.
  2. Drain engine coolant from radiator  .
  3. Remove rear seat outer belt floor anchors  .
  4. Remove backdoor scuff plate  .
  5. Remove rear door scuff plate right side  .
  6. Remove upper back door garnish  .
  7. Remove rear window side garnish right side  .
  8. Remove rear quarter trim panel right side  .
  9. Remove quarter pillar garnish right side  .
    10. CAUTION: Cap the open fittings immediately to keep moisture or dirt out of the system.

    At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install them to the tubes.

  10. Disconnect liquid and suction tubes  .

    Remove the 2 bolts and disconnect the both tubes. See Figure.

    Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

  11. Remove rear A/C unit  :

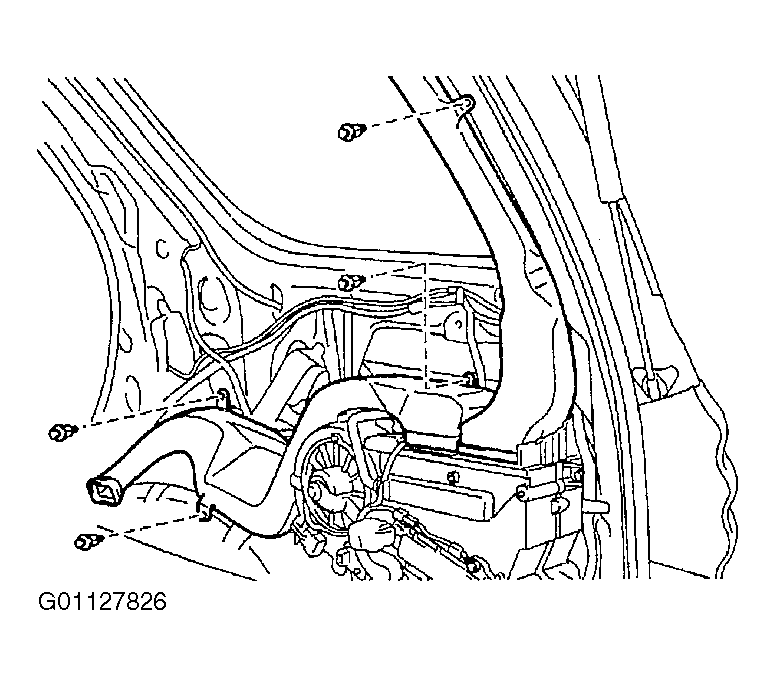

    1. Remove the 3 clips and cover. See Figure.
    2. Remove the 2 air ducts.
    3. Disconnect the connectors and wire harness clamps.
  12. Remove expansion valve  :

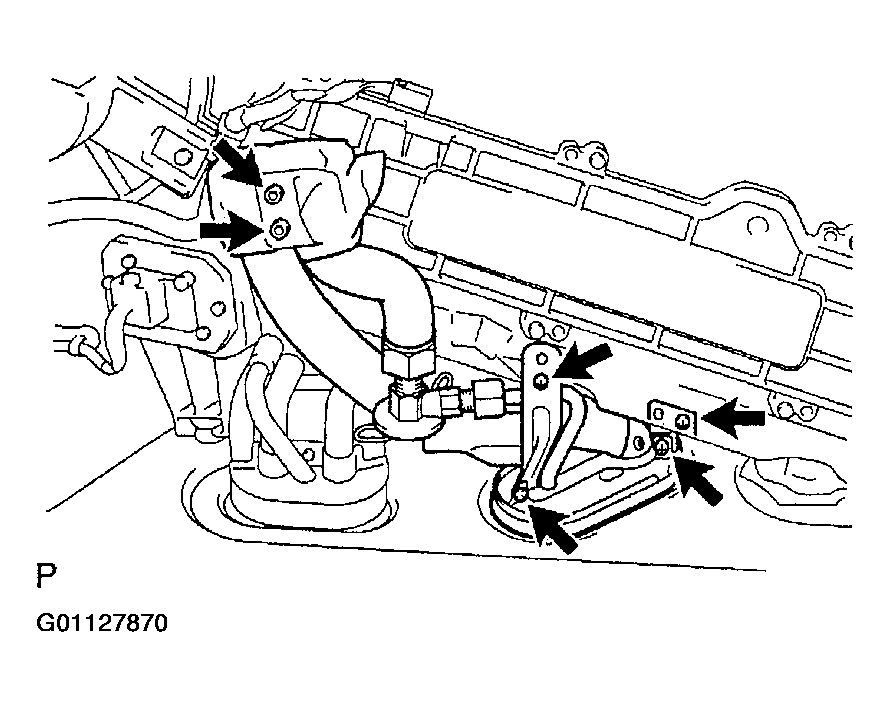

    1. Remove the 4 screws and 2 brackets. See Figure.
      2. NOTE:

      At the time of installation, please refer to the following item. Do not refuse the packing.

    2. Pry out the packings.
    3. Using a hexagon wrench (5.0 mm, 0.20 in.), remove the 2 bolts.

      Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

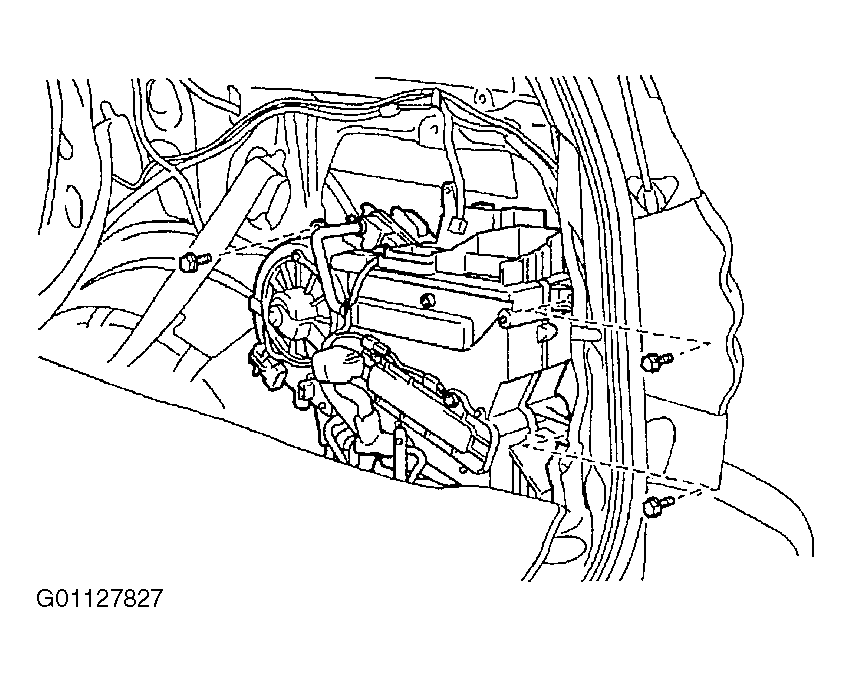

    4. Remove the 3 bolts. See Figure.
    5. Lift the A/C unit until the tube and accessary is removed.
    6. Remove the tube and accessary.
  13. Remove evaporator  :
    1. Remove the 8 screws and cover. See Figure.
    2. Pull out the evaporator.
