Remove A/C Amplifier

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 2 screws and heater control switch. See Fig 1.

Fig 1: Locating Heater Control Switch Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 4 screws and A/C amplifier and PC board. See Fig 2.

Fig 2: Locating A/C Amplifier & PC Board Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 3 bulbs from PC board. See Fig 3.

Fig 3: Locating PC Board Bulbs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

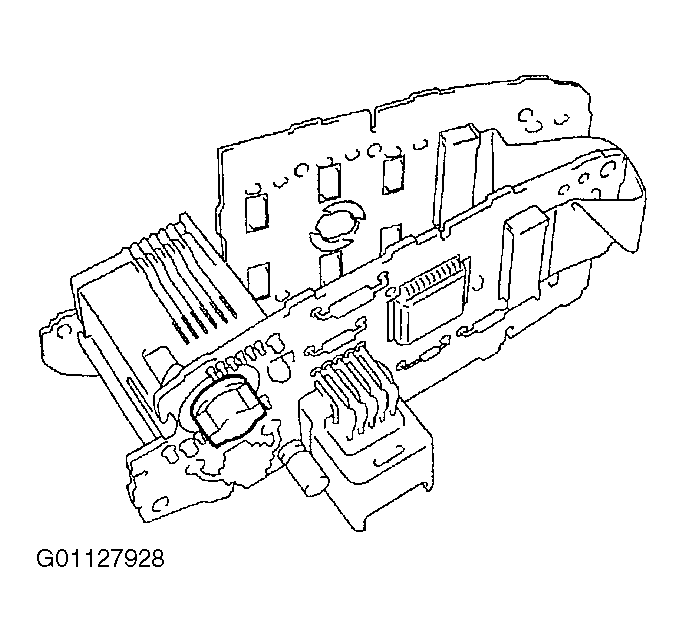

Remove the bulb from A/C amplifier. See Fig 4.

Fig 4: Locating A/C Amplifier Bulbs
