Remove Drive Belt

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the drive belt tension by turning the drive belt tensioner counterclockwise, and remove the drive belt. See Fig 1.

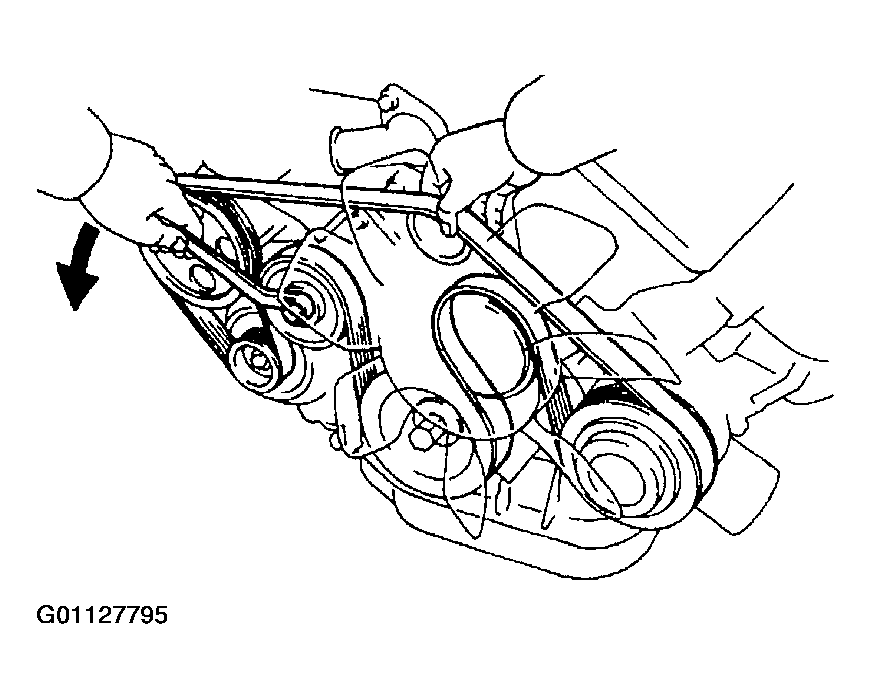

Fig 1: Removing Drive Belt
G01127795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
