Compressor And Magnetic Clutch: Removal

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Run engine at idle speed with A/C on for approx. 10 minutes .
Stop engine .
Disconnect negative (-) terminal cable from battery .
Discharge refrigerant from refrigeration system .

CAUTION: Cap the open fitting immediately to keep moisture or dirt out of the system.

Disconnect discharge and suction hoses :
Remove the 2 nuts and disconnect the both hoses. See Fig 1.
Remove drive belt . See REMOVAL .

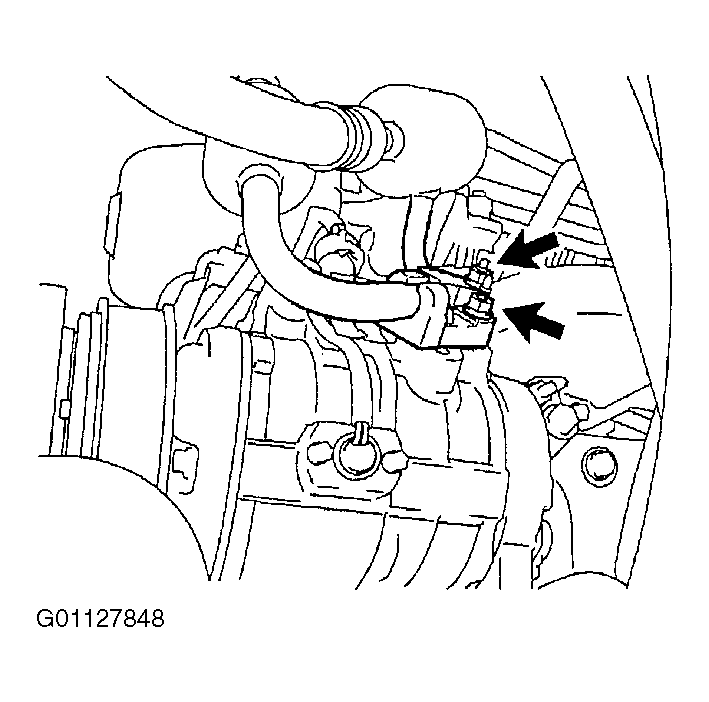

Fig 1: Locating Discharge And Suction Hose Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove compressor :
1. Disconnect the connector.
2. Remove the 3 bolts and nut. See Fig 2.
3. Remove the cooler bracket.
4. Remove the compressor.

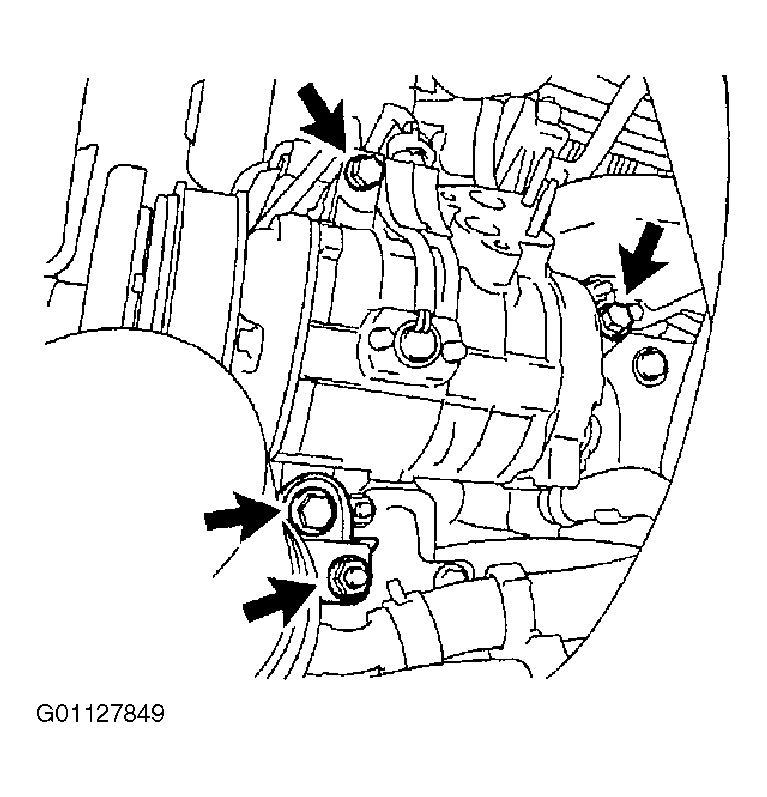

Fig 2: Locating Compressor Mounting Bolts & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
