Air Mix Servomotor: Inspection

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air mix servomotor  :
    1. Disconnect the connector. See Fig 1.
    2. Remove the 3 screws and servomotor.
  2. Inspect  air mix damper position servomotor  .
  3. Inspect  air mix servomotor circuit  .
  4. Install air mix servomotor  .

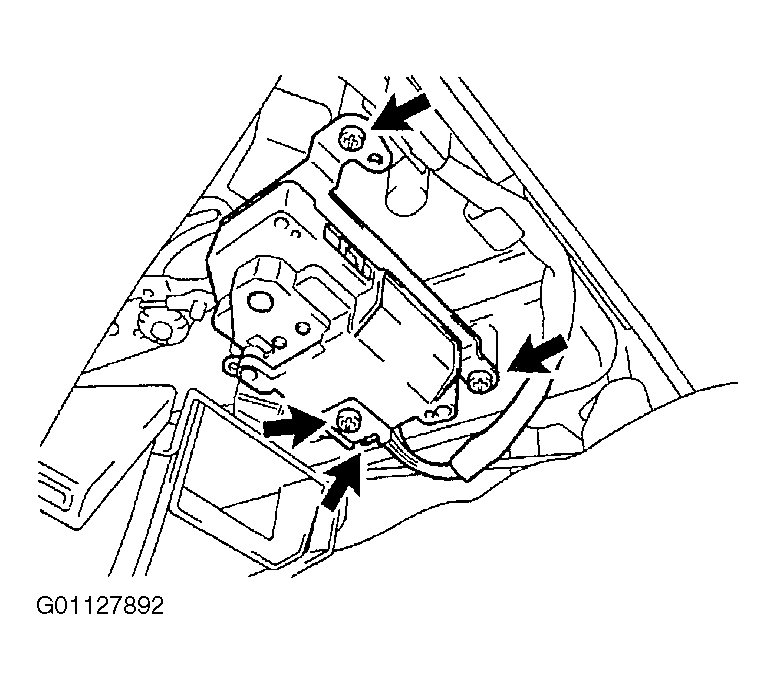

    Fig 1: Locating Air Mix Servomotor Mounting Screws & Connector
    G01127892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
