AIR CONDITIONER CONTROL ASSEMBLY (Center Cluster Integration): Removal
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
Remove center cluster integration panel:

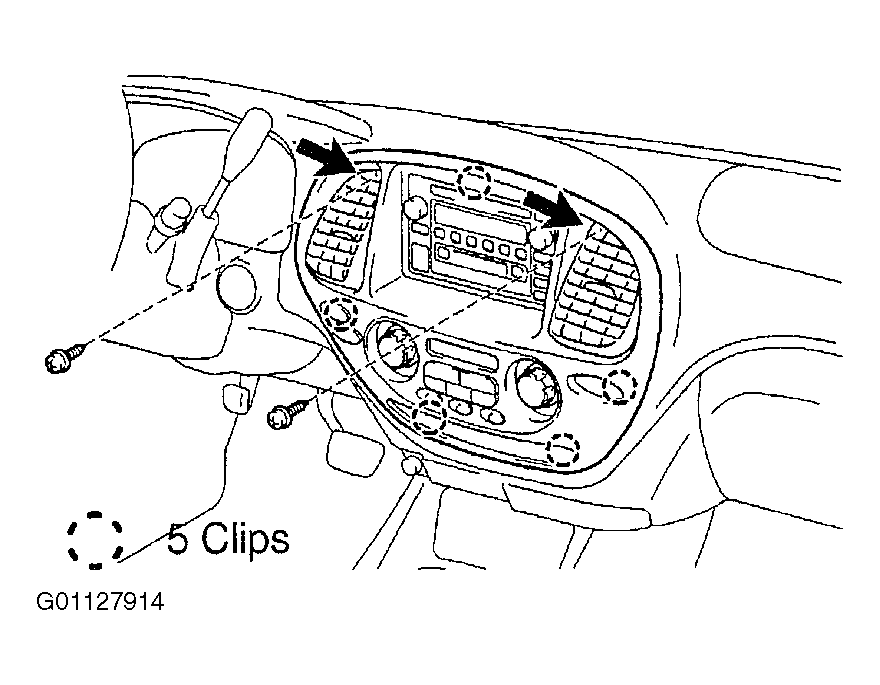

- Remove the 2 screws. See Fig 1.
- Remove integration control panel by pulling the portions indicated by arrows in the illustration.
- Disconnect the connector.
