AIR CONDITIONER CONTROL ASSEMBLY (Center Cluster Integration): Disassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

Remove Bulbs
Remove the 3 bulbs.

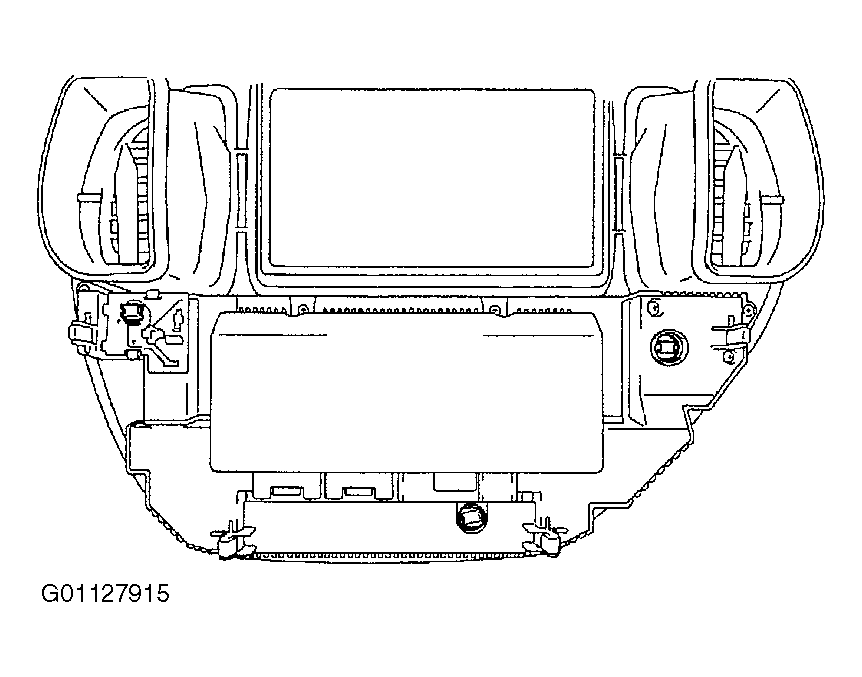

Fig 1: Locating Center Cluster Integration Panel Bulbs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove A/C Amplifier :
1. Remove the 7 screws and heater control housing.

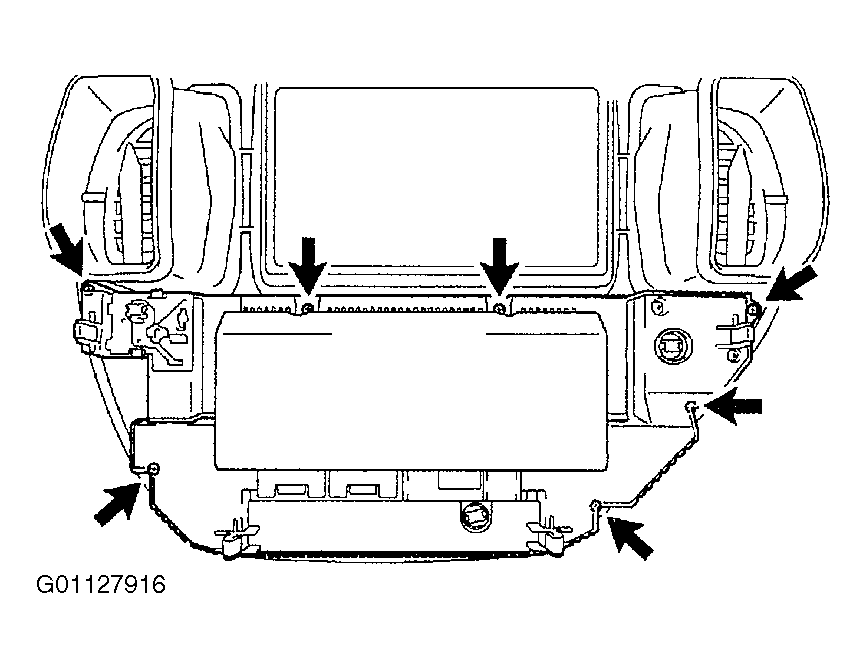

  Fig 2: Locating Heater Control Housing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.
3. Remove the 3 screws and A/C amplifier.

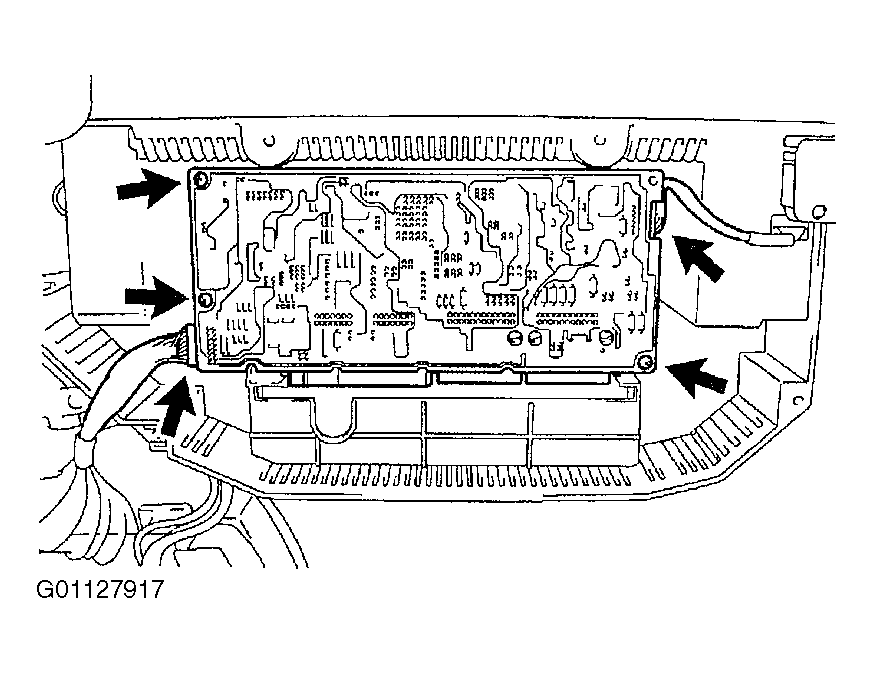

  Fig 3: Locating A/C Amplifier Connectors & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the passenger seat belt indicator circuit. See Fig 4.
Fig 4: Locating Passenger Seat Belt Indicator Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Integration Circuit
1. Remove the 2 knobs. See Fig 5.
2. Remove the 2 nuts and 2 watches.

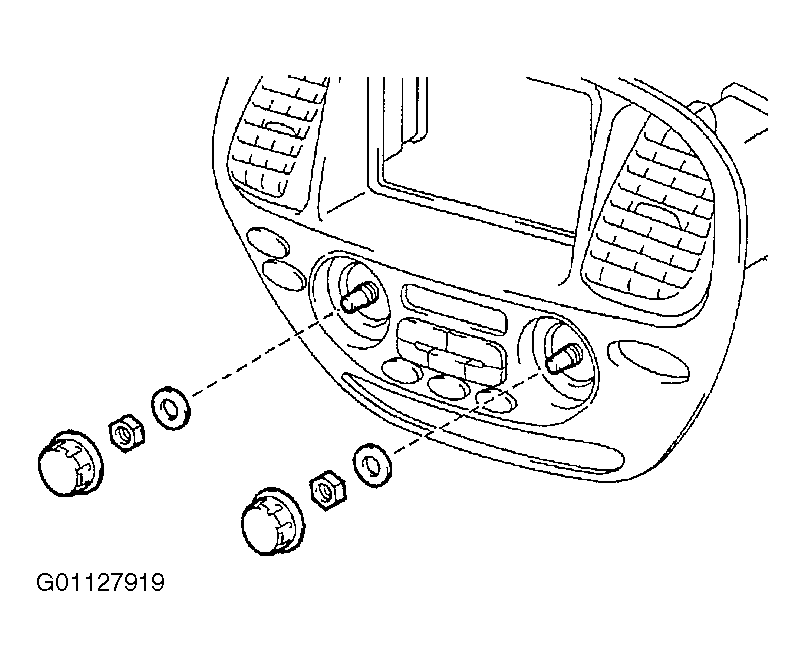

  Fig 5: Removing Integration Circuit Knobs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bulbs. See Fig 6.

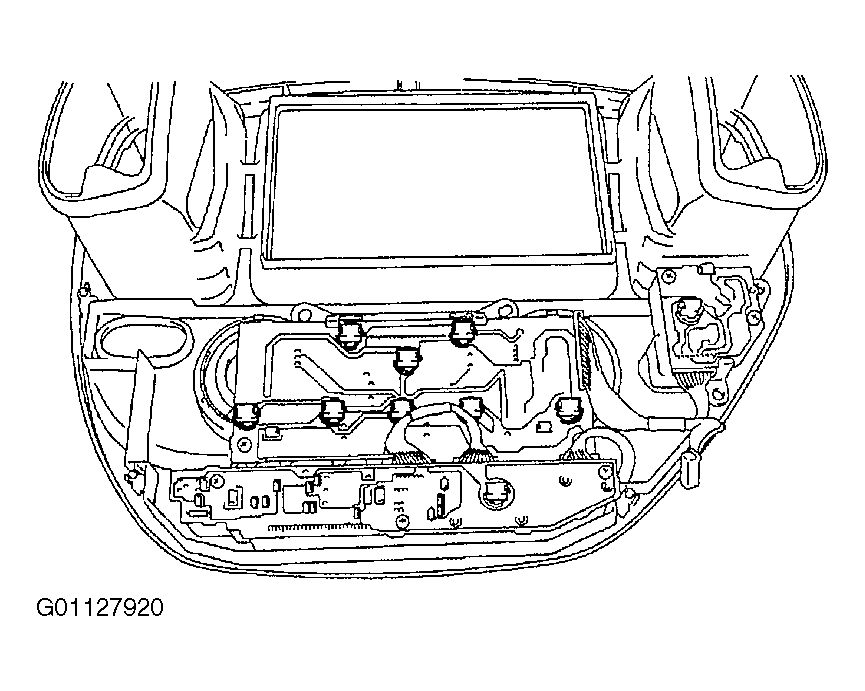

  Fig 6: Locating Integration Circuit Bulbs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 7 screws and integration circuit. See Fig 7.

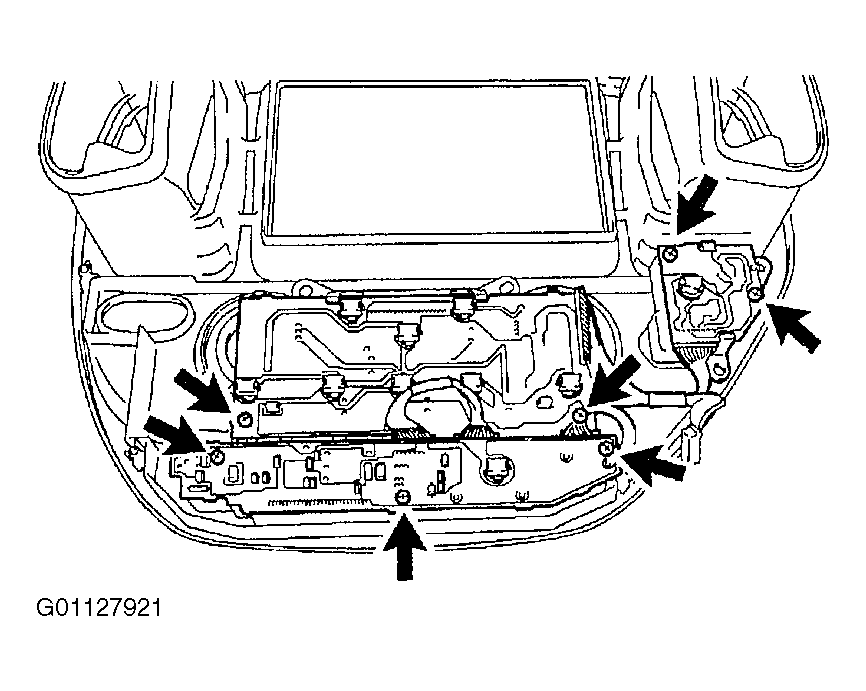

Fig 7: Locating Integration Circuit Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
