AIR CONDITIONER CONTROL ASSEMBLY (Center Cluster Integration): Components

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For air conditioner control (center cluster integration) components, see illustration. See Fig 1.

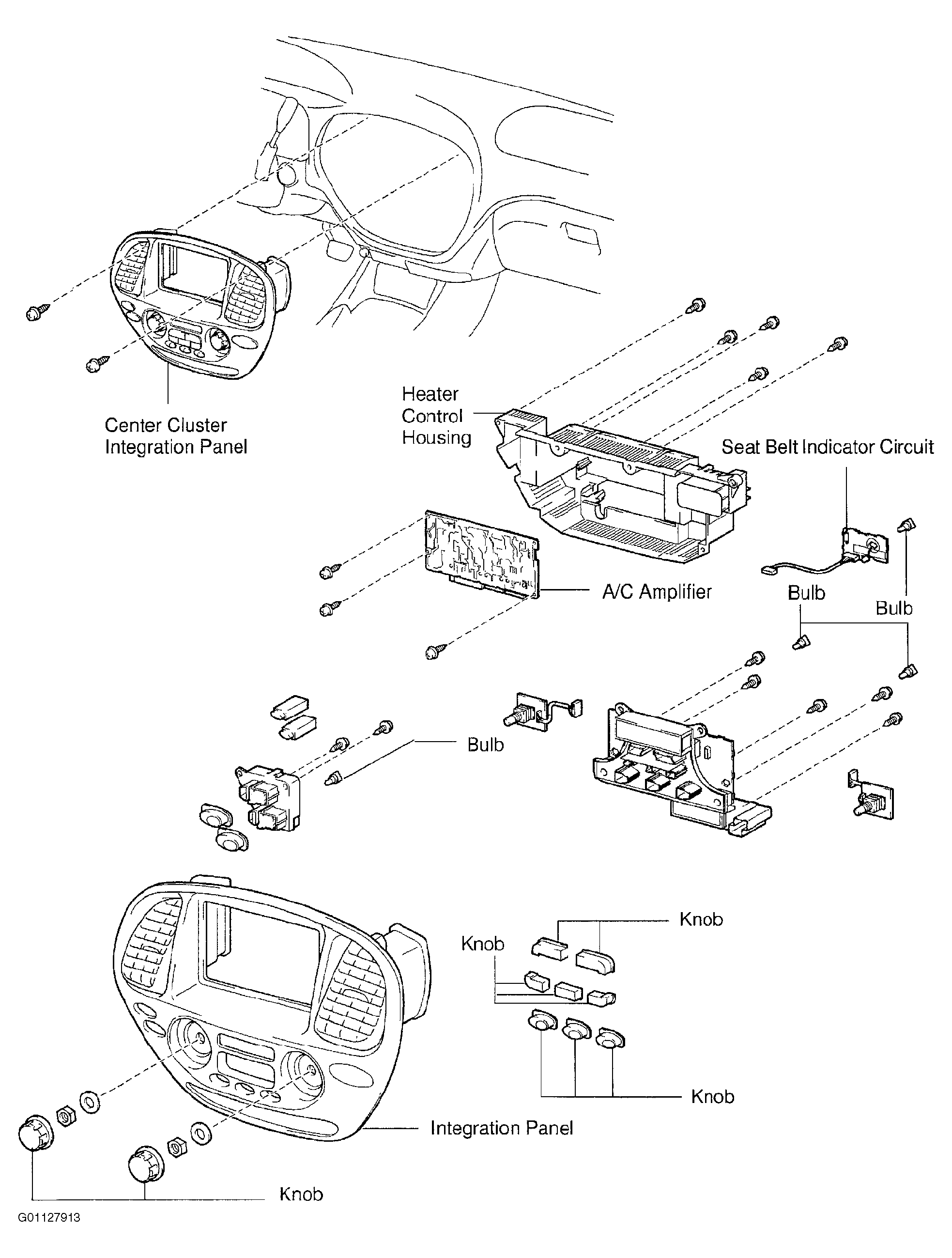

Fig 1: Locating Air Conditioner Control (Center Cluster Integration) Components
G01127913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
