Diagnosis Circuit
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

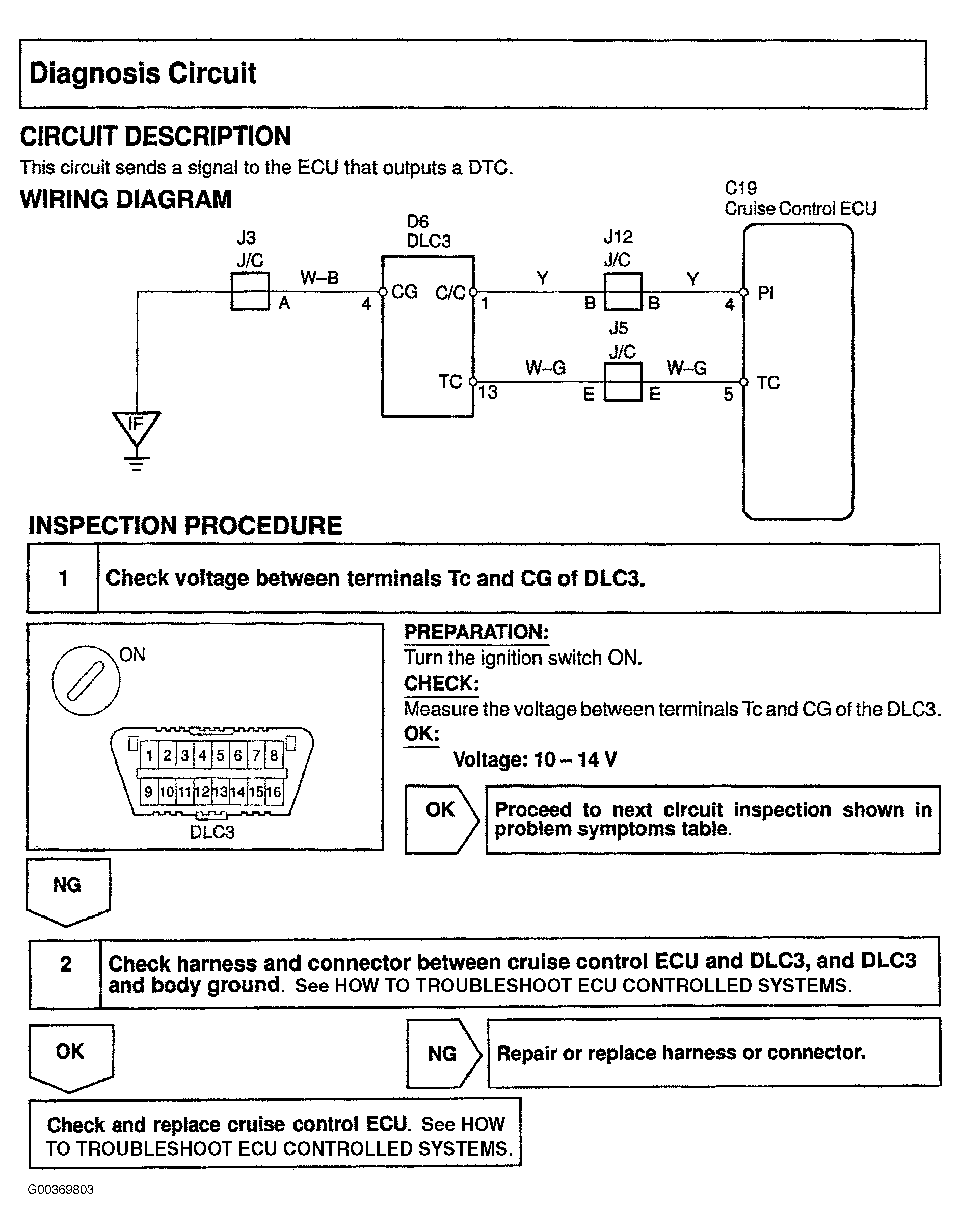

For diagnosis circuit testing procedure, see Fig 1.
For diagnosis circuit testing procedure, see Fig 1.
