Clutch Switch Circuit (M/T)

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For clutch switch circuit (M/T) testing procedure, see Fig 1 and Fig 2 .

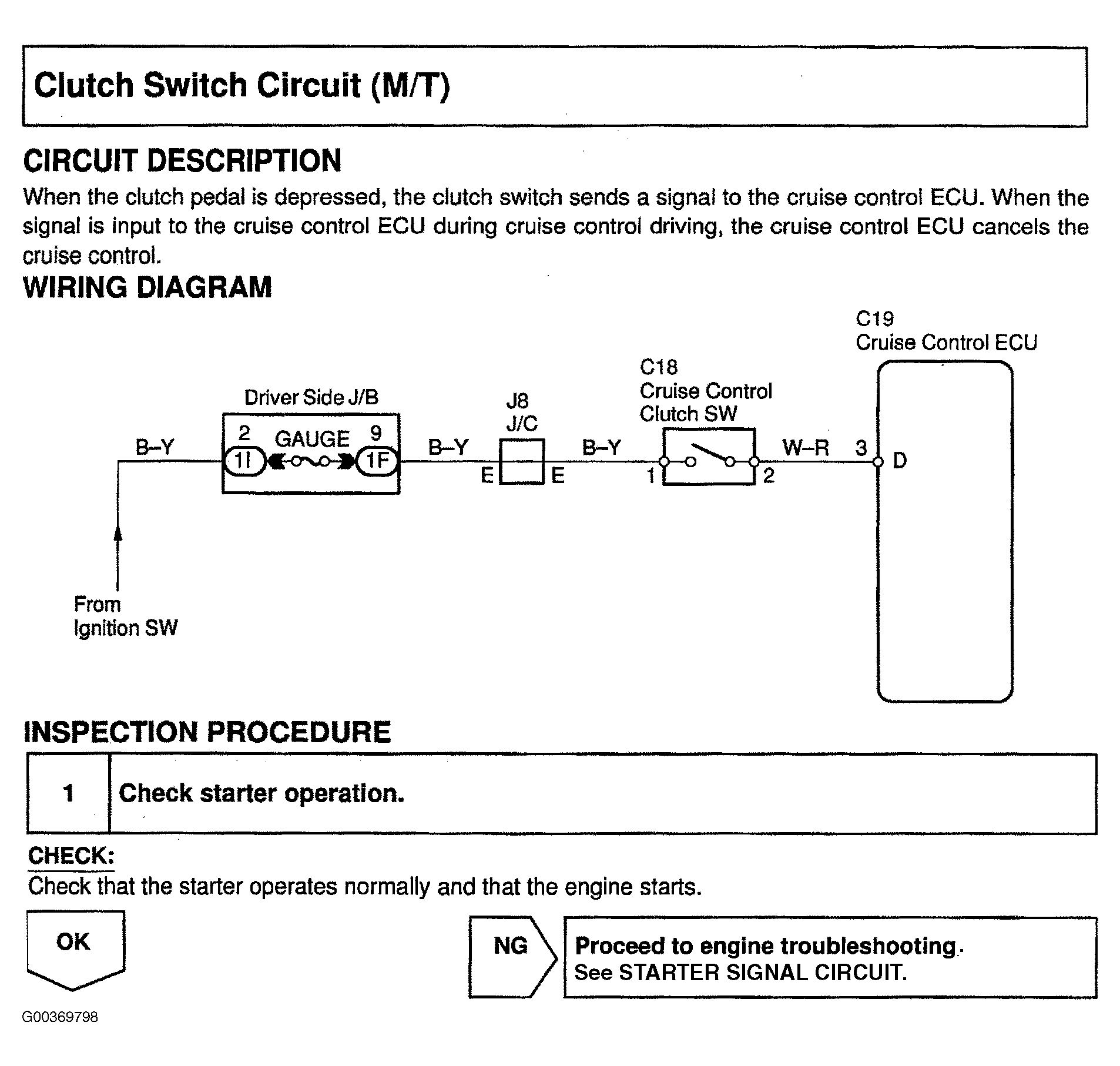

Fig 1: Testing Clutch Switch Circuit (1 of 2)

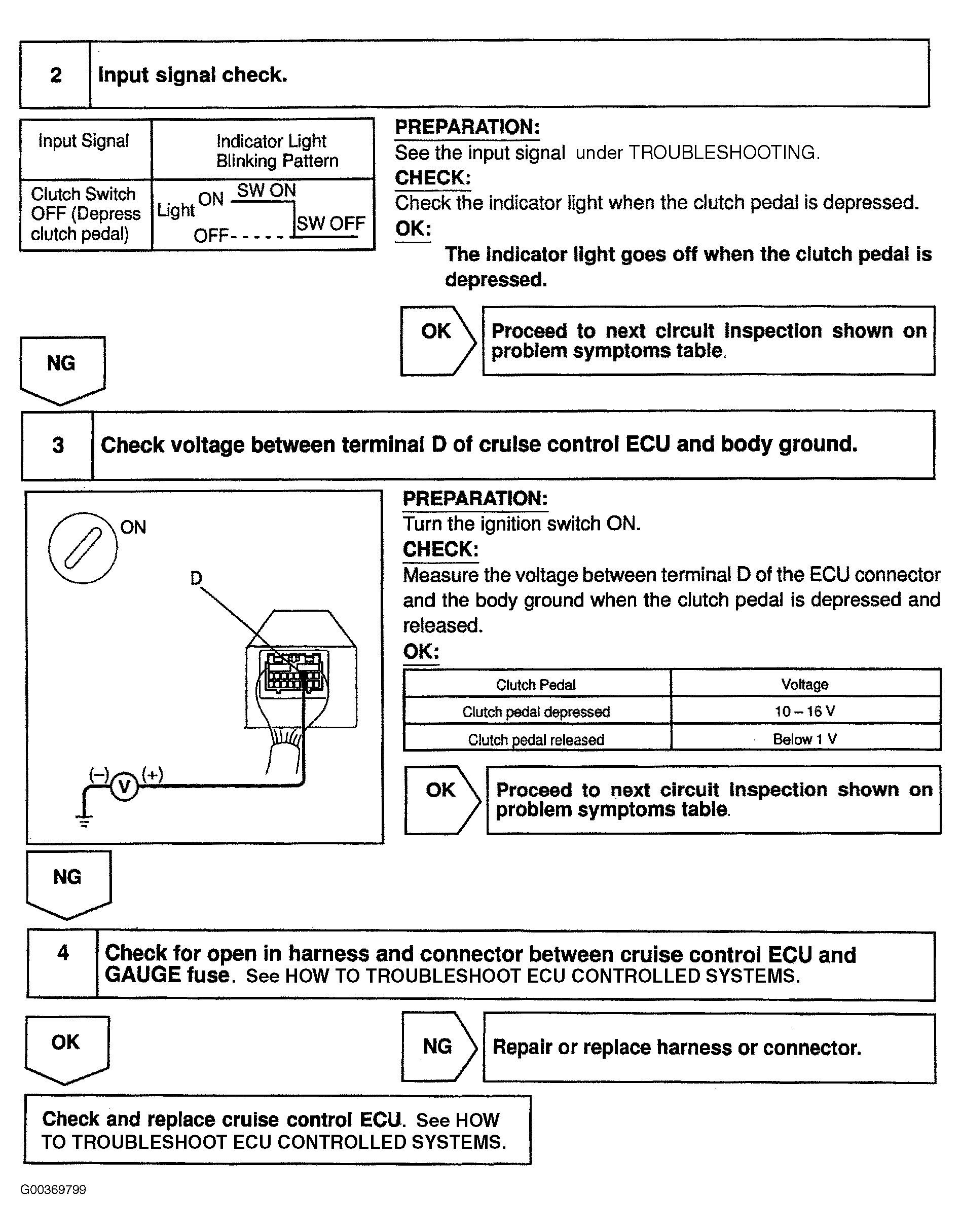

Fig 2: Testing Clutch Switch Circuit (2 of 2)
