DTC 51: Idle Signal Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 51: Idle signal circuit diagnostic procedure, see Fig 1 and Fig 2 .

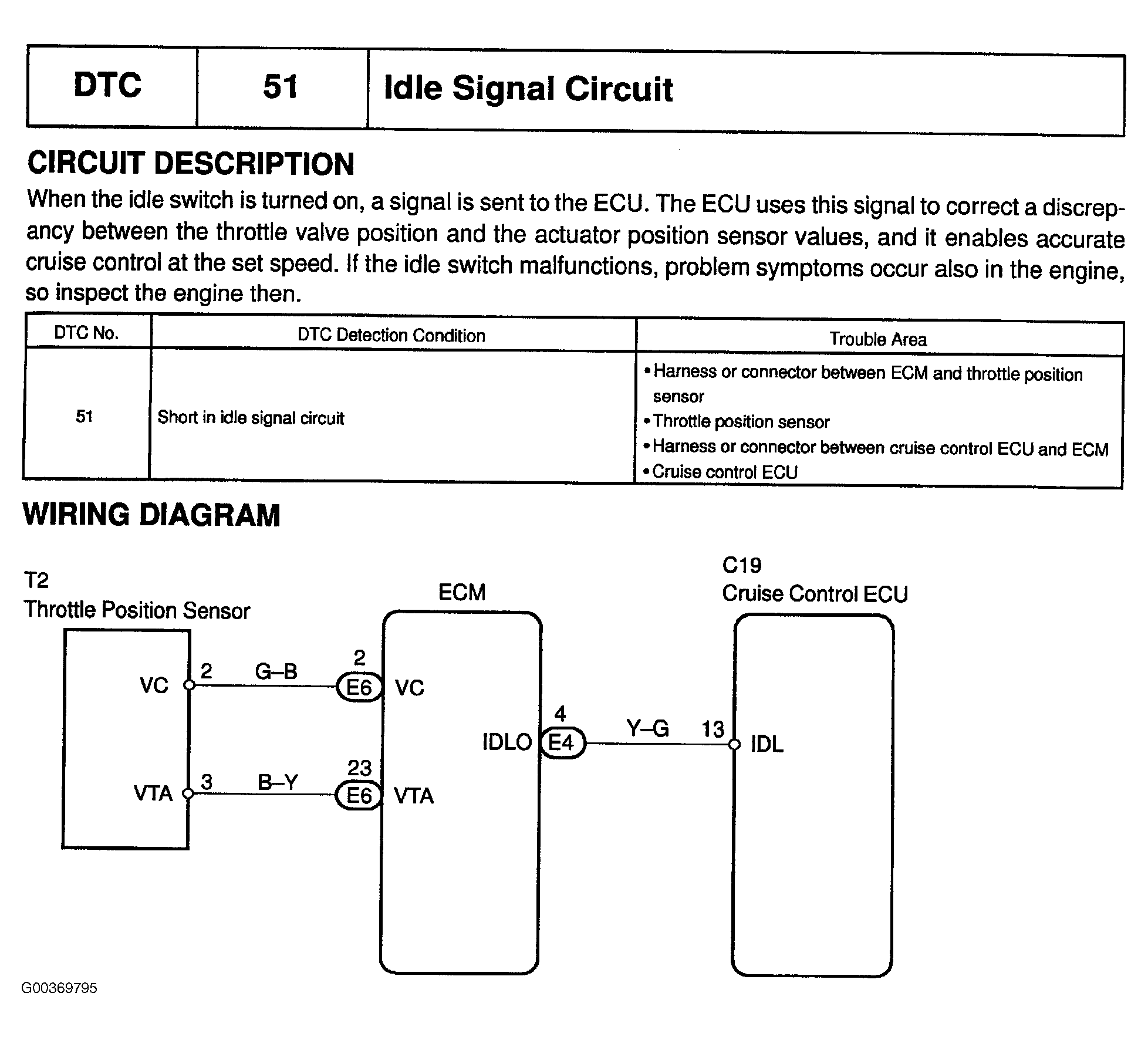

Fig 1: Diagnosing DTC 51: (1 of 2)
G00369795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

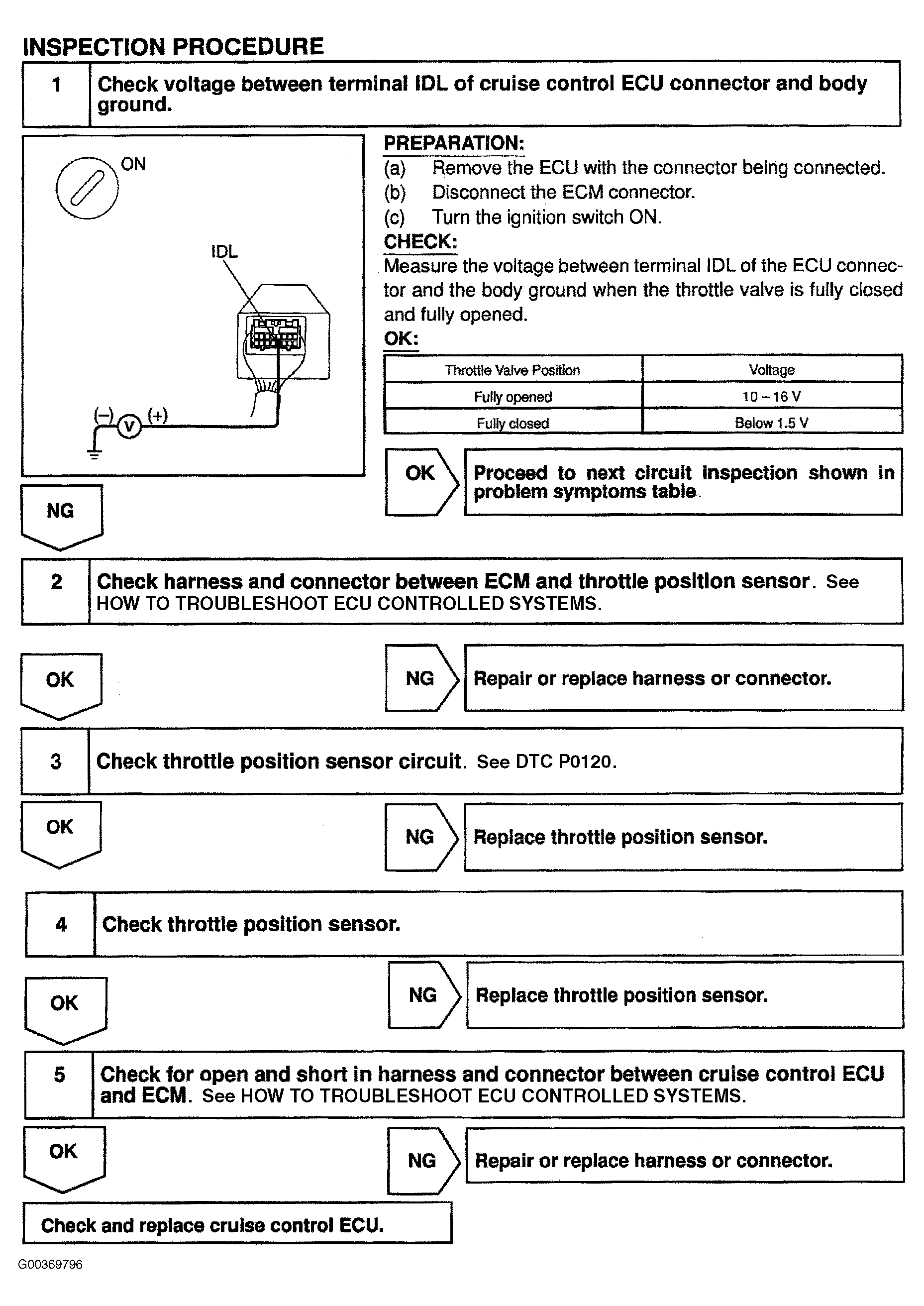

Fig 2: Diagnosing DTC 51: (2 of 2)
G00369796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
