DTC 14: Actuator Mechanical Malfunction

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 14: Actuator mechanical malfunction diagnostic procedure, see Fig 1and Fig 2 .

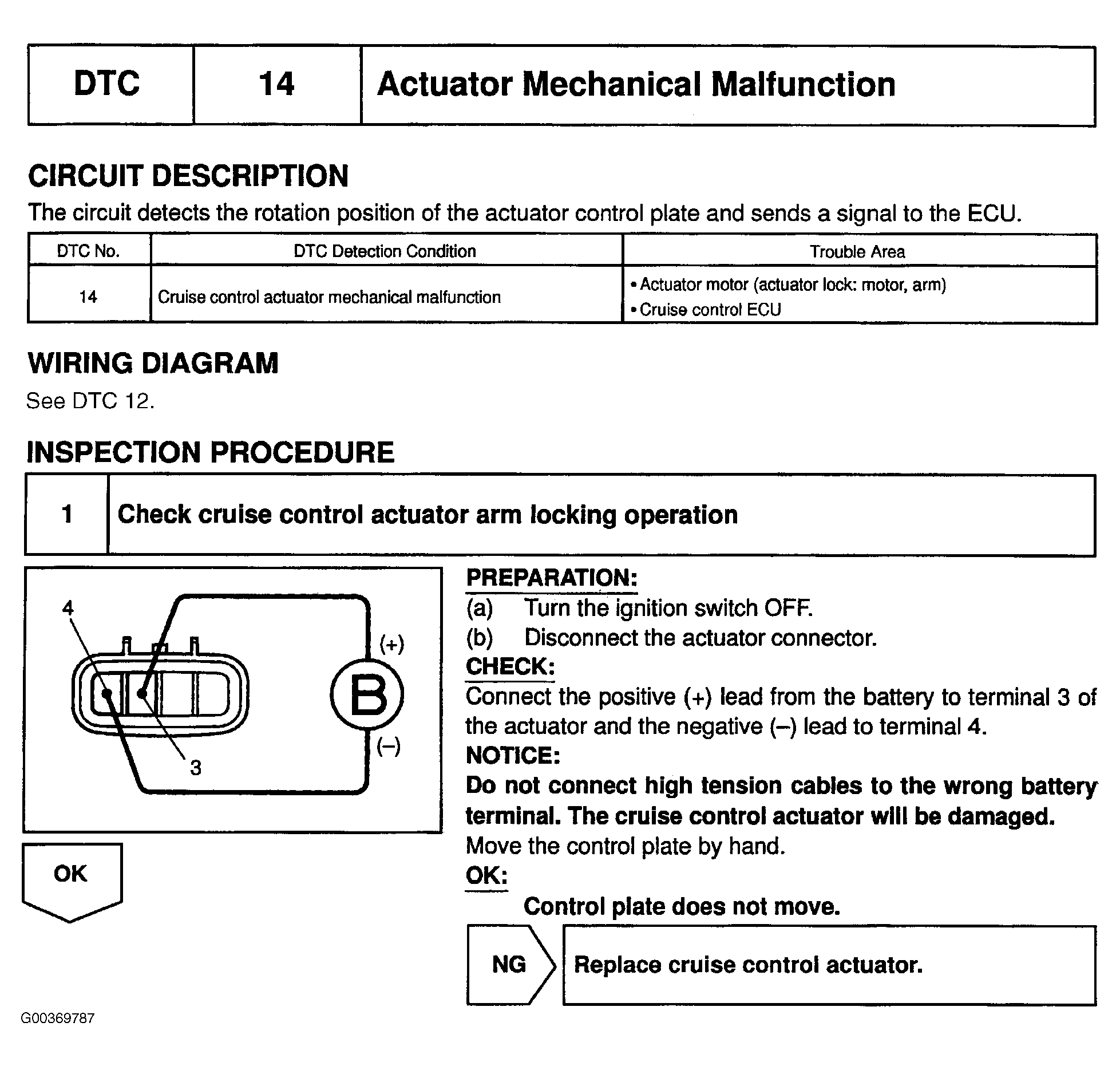

Fig 1: Diagnosing DTC 14 (1 of 2)
G00369787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

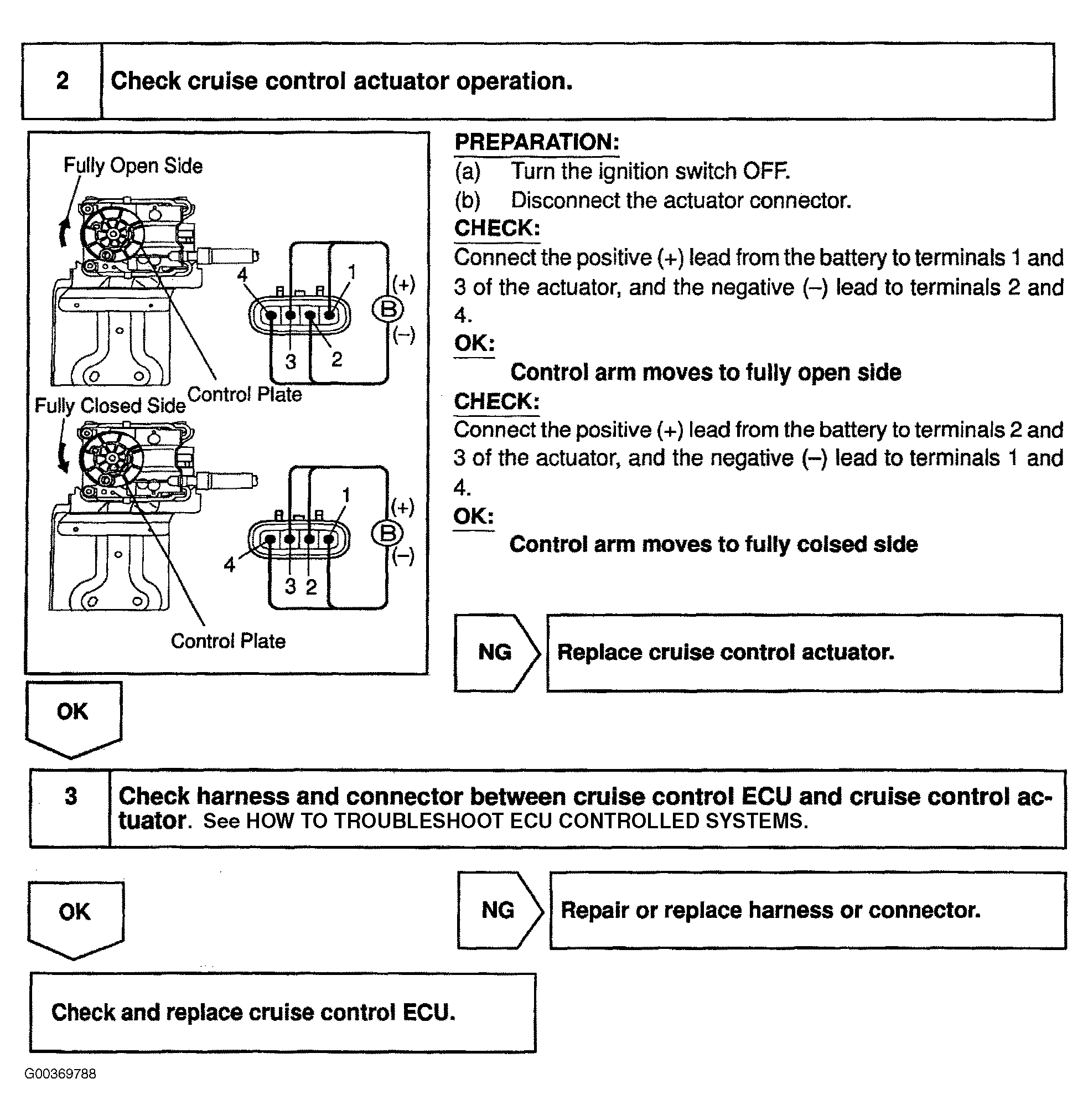

Fig 2: Diagnosing DTC 14 (2 of 2)
G00369788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
