DTC 12: Actuator Magnetic Clutch Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For DTC 12: Actuator magnetic clutch circuit diagnostic procedure, see Fig 1-Fig 3 .

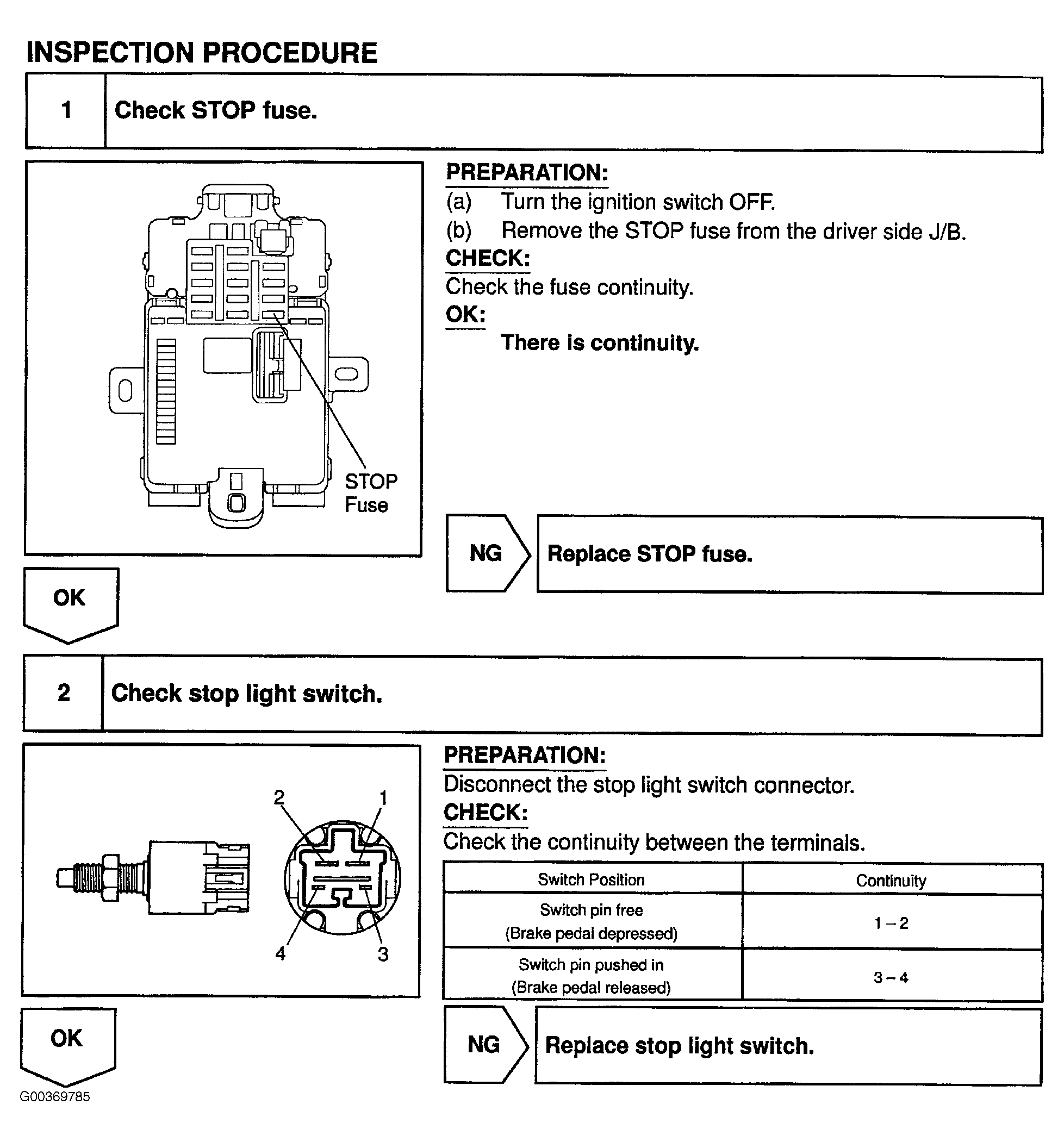

Fig 1: Diagnosing DTC 12 (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

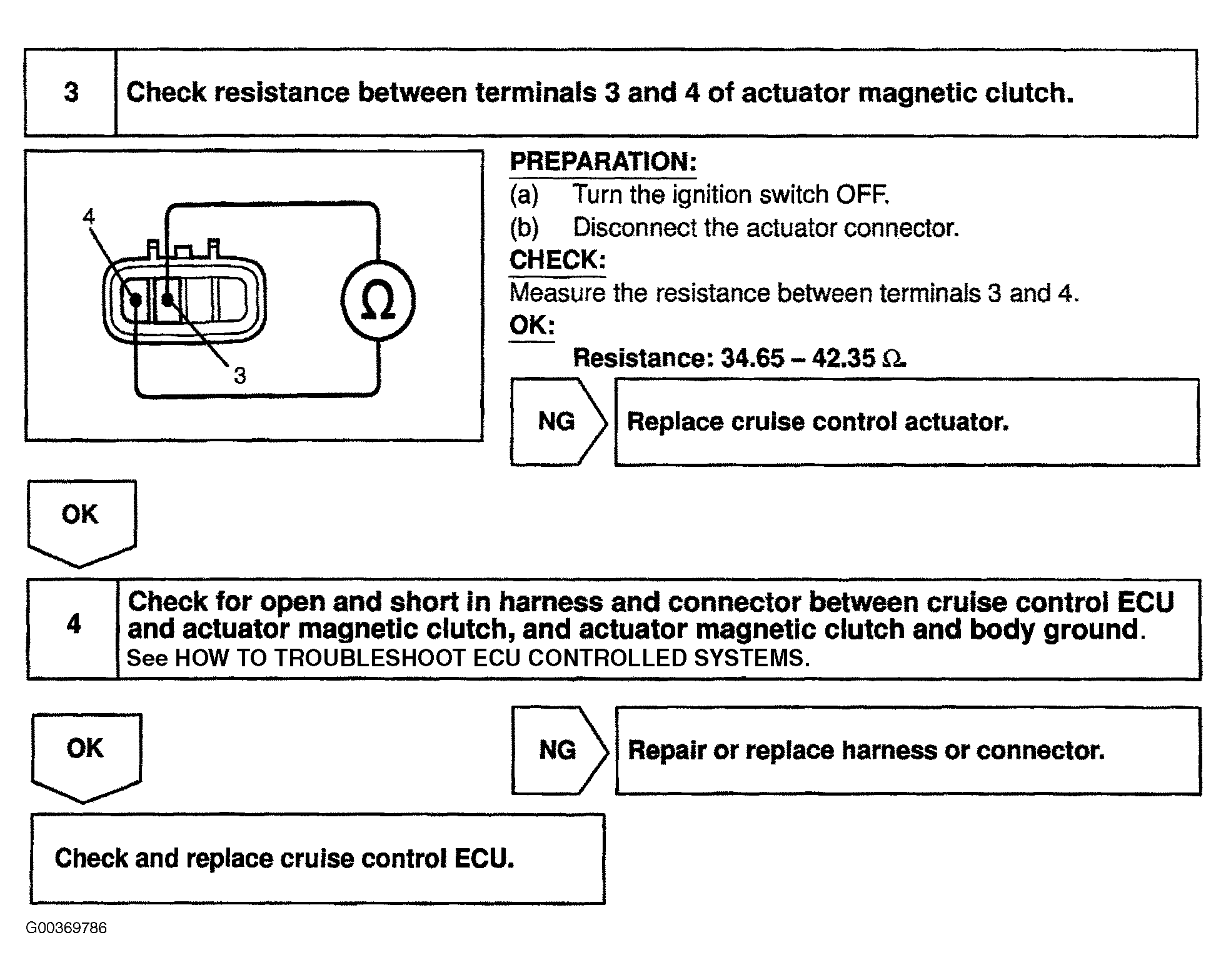

Fig 2: Diagnosing DTC 12 (2 of 3)

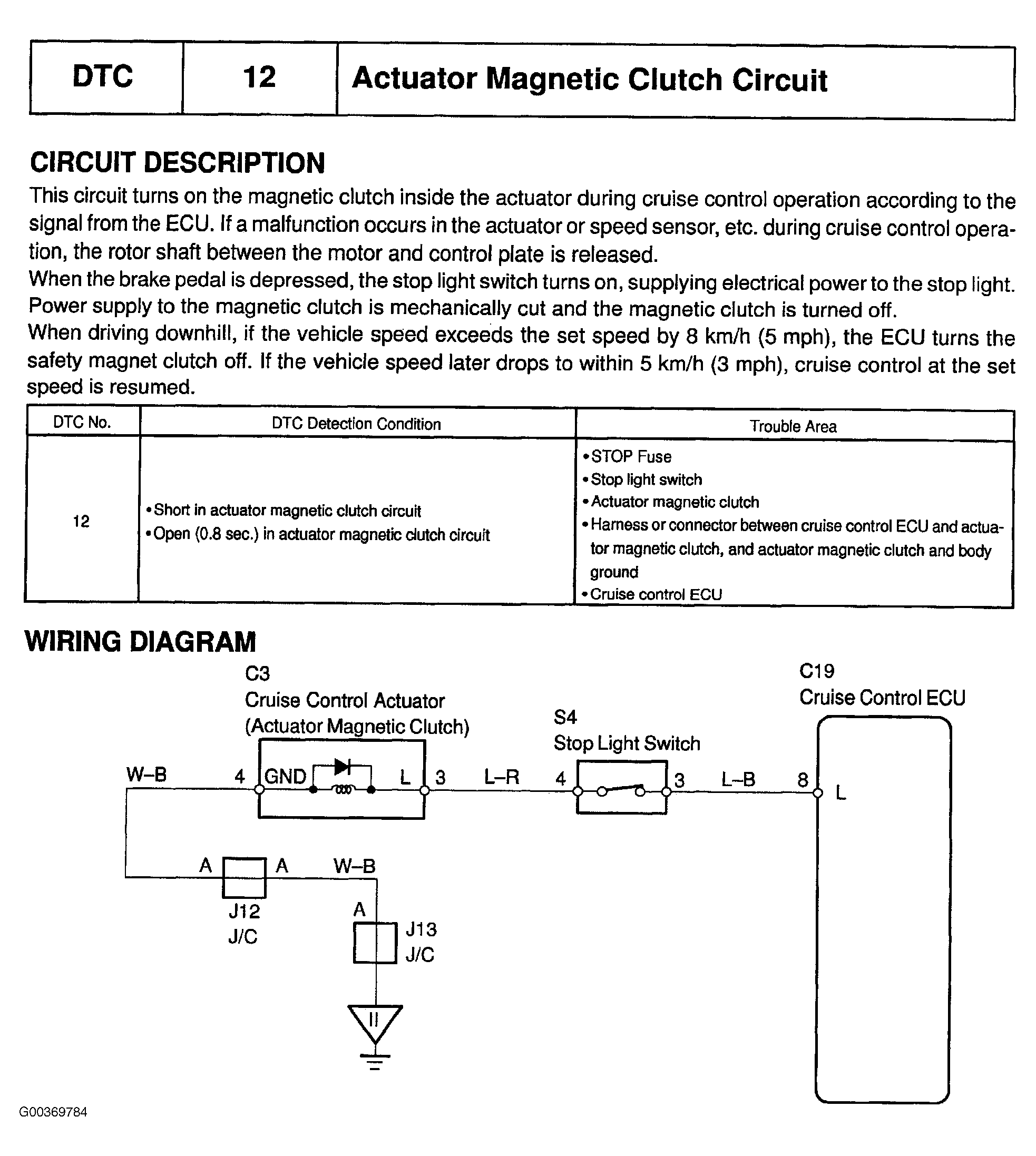

Fig 3: Diagnosing DTC 12 (3 of 3)
