DTC P1520/52: Stop Light Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For Stop light switch circuit testing procedure, see Fig 1-Fig 3 .

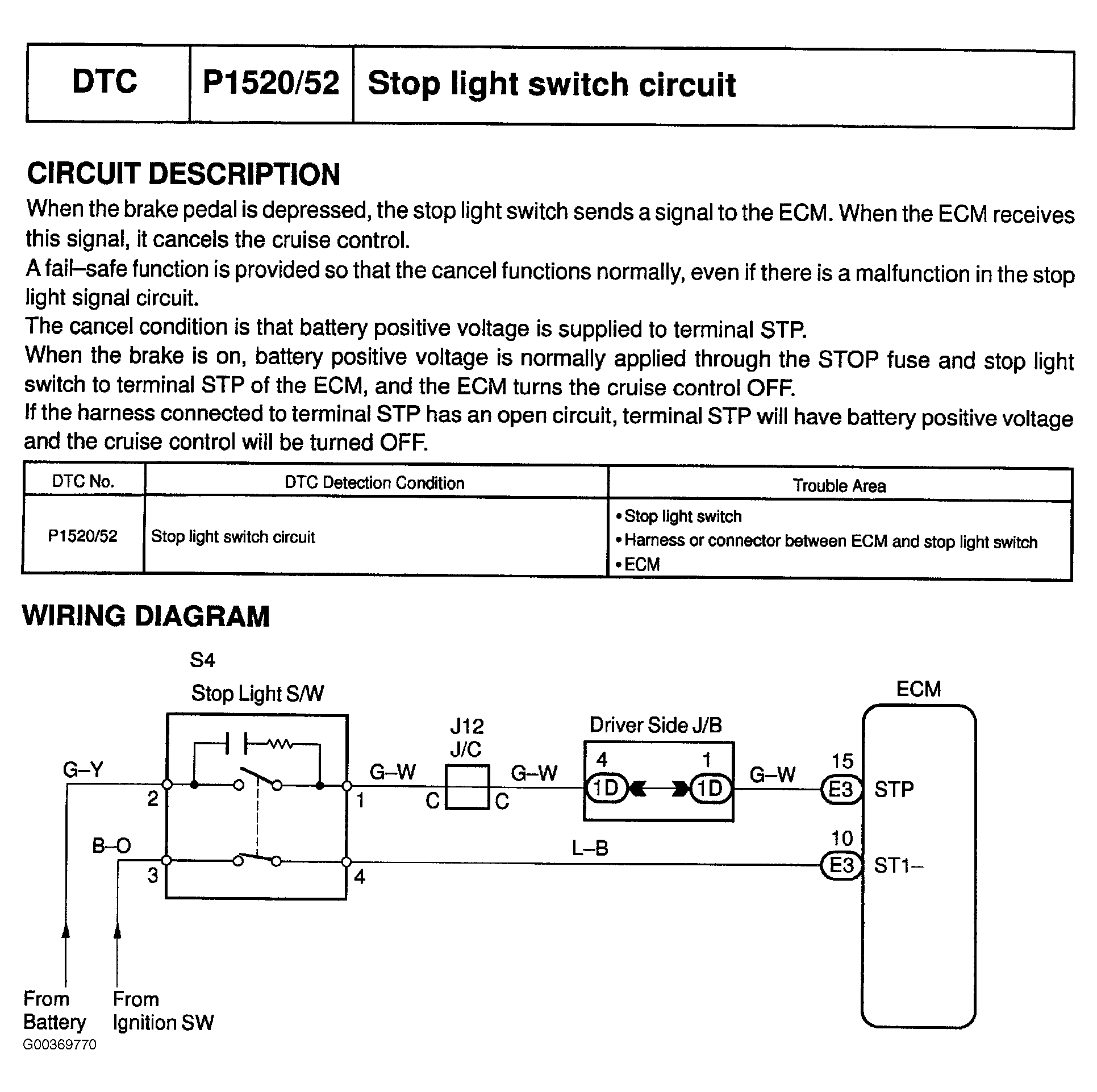

Fig 1: Testing Stop Light Switch Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

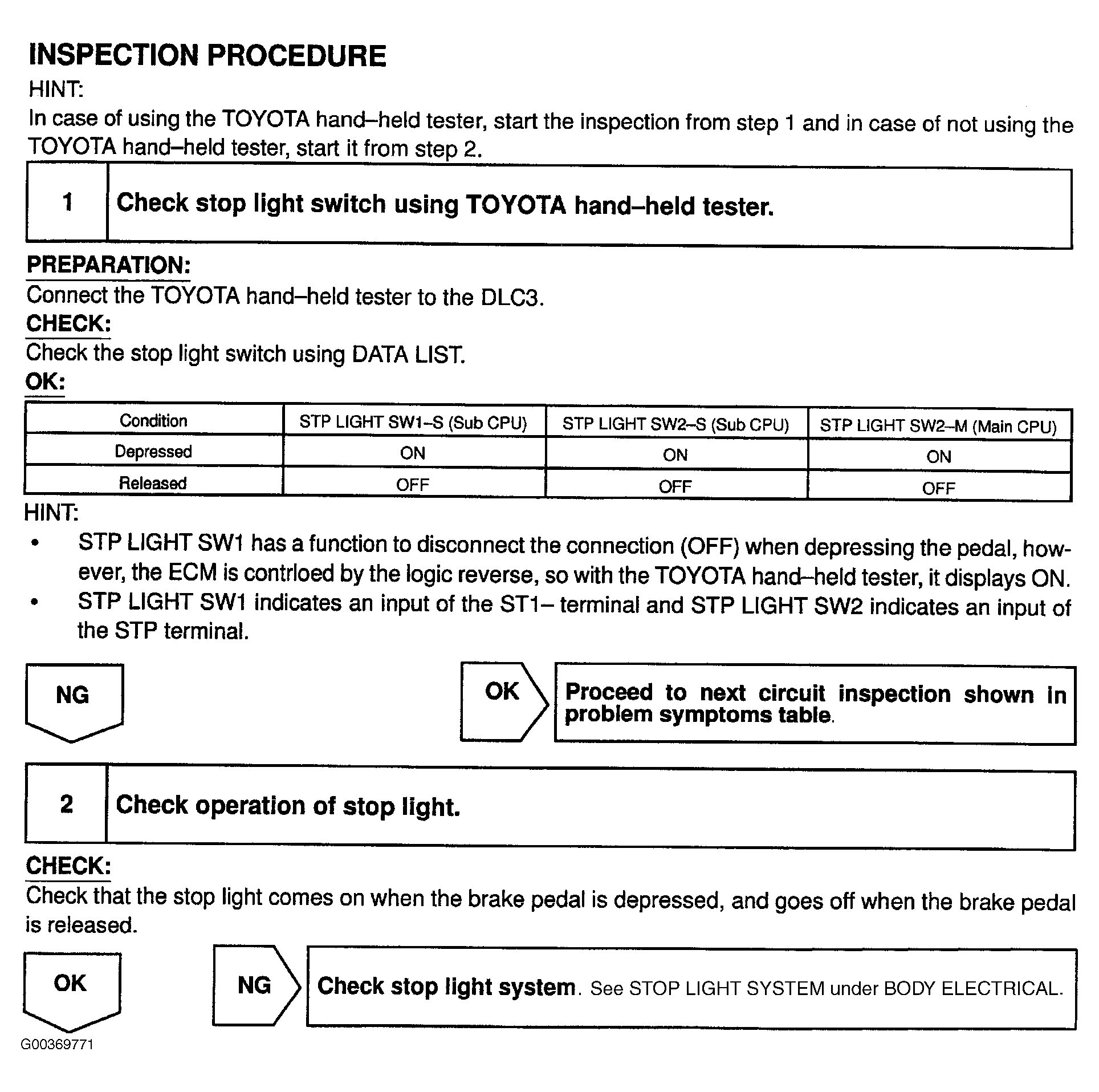

Fig 2: Testing Stop Light Switch Circuit (2 Of 3)

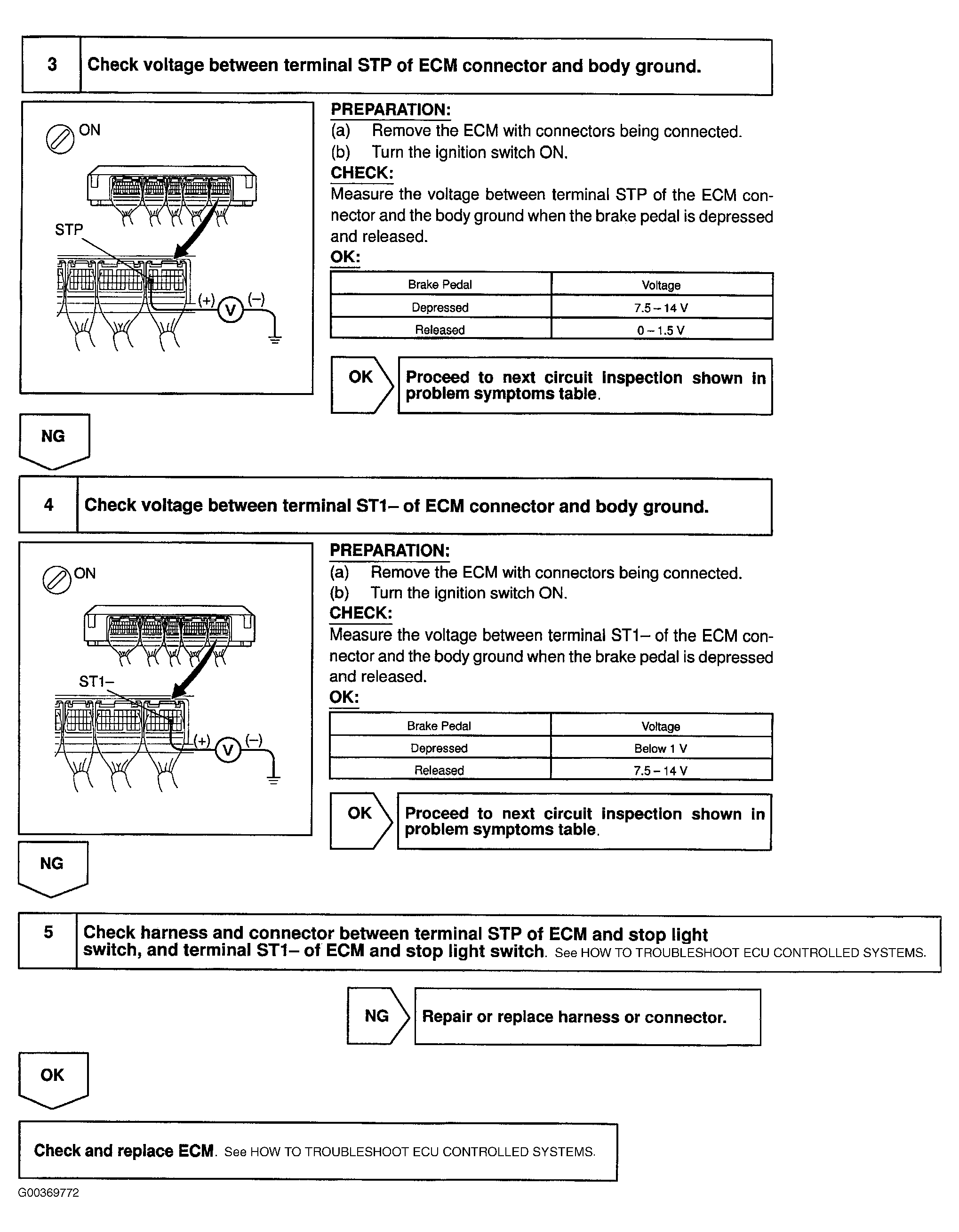

Fig 3: Testing Stop Light Switch Circuit (3 Of 3)
