Cruise Control Actuator: V6

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Remove CRUISE control actuator cover. Disengage the 2 claws, then remove the cruise control actuator cover. See Fig 1.
Separate cruise control cable. Remove the screw and separate the cruise control cable. See Fig 2.
Remove cruise control actuator assy, see Fig 3:
1. Disconnect the connector.
2. Remove the 3 nuts and cruise control actuator assy.

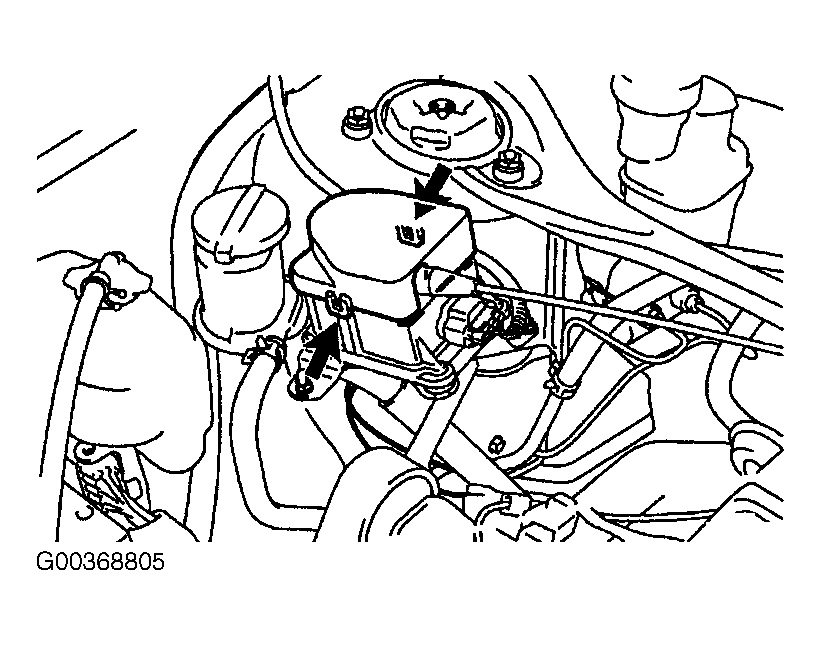

Fig 1: Removing Cruise Control Actuator Cover (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

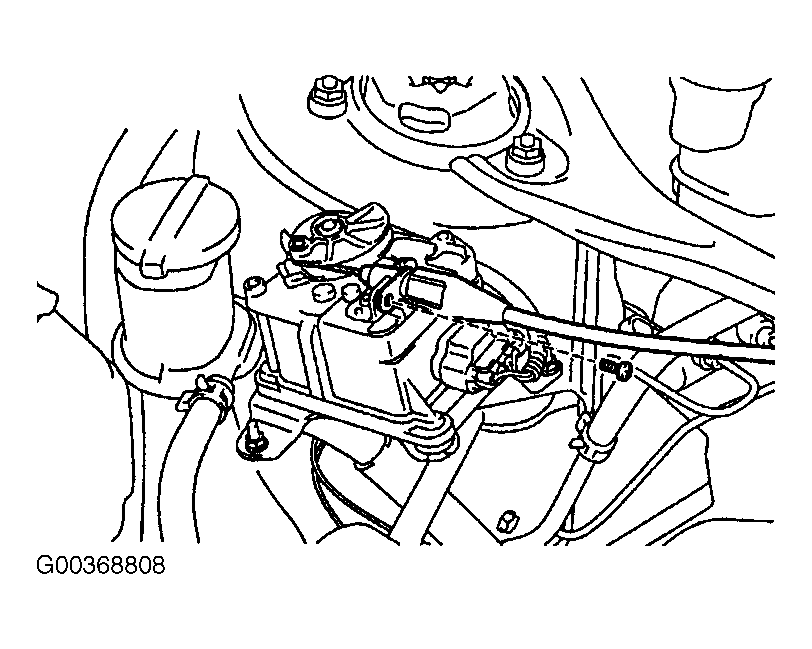

Fig 2: Separating Cruise Control Cable (V6)

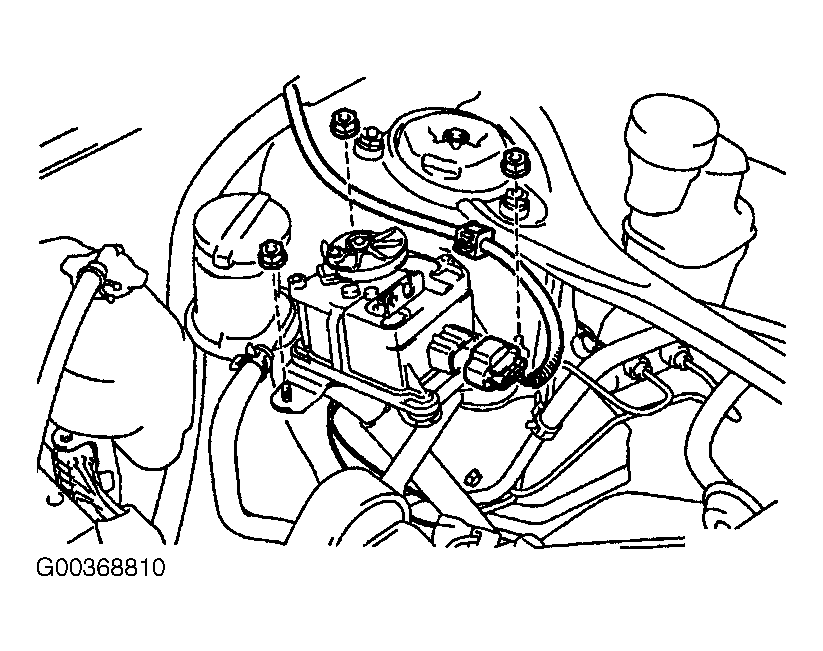

Fig 3: Removing Cruise Control Actuator (V6)
