Inspection & Adjustment: Cable: V6

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

CHECK PLAY OF ACCELERATOR AUTO DRIVE CABLE ASSY
1. Push the wire into the cable so as not to move the throttle link and put a mark on the position shown in the illustration. See Fig 5.
2. Pull the wire and check the moved distance of the mark. See Fig 6.
ADJUST PLAY IN ACCELERATOR AUTO DRIVE CABLE ASSY - Changing the double nut position shown by the arrows, see Fig 7. Adjust the play to the standard value. Standard: 2 - 6 mm (0.079- 0.236 in.)

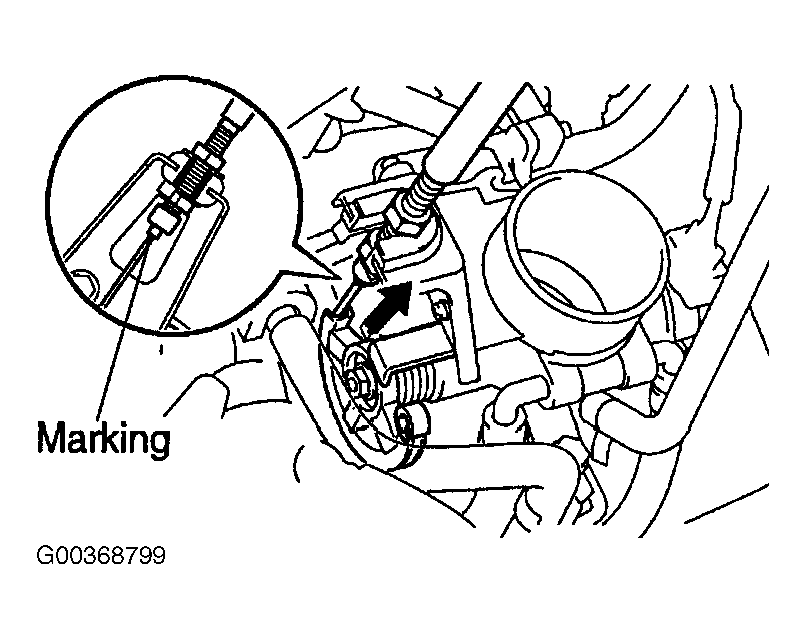

Fig 1: Identifying Cruise Control Cable Marking Position (4-Cylinder)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

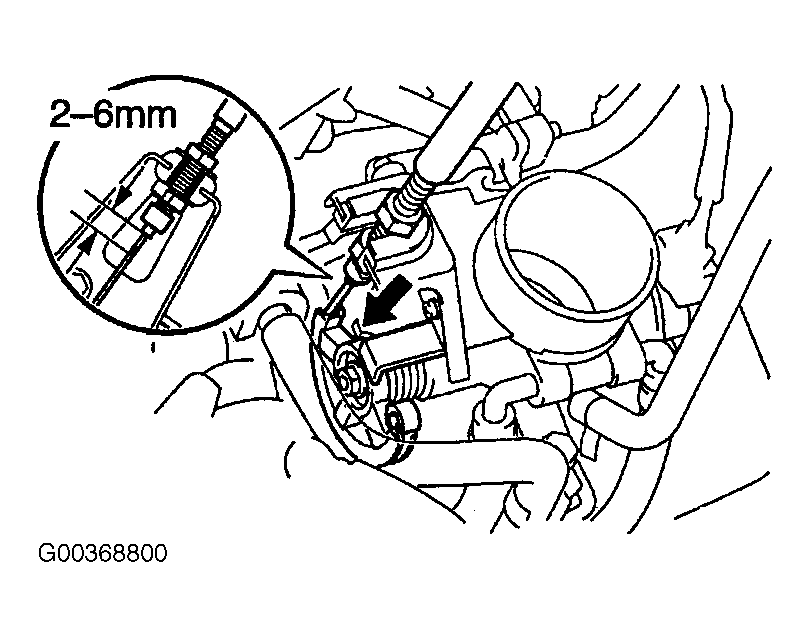

Fig 2: Measuring Cruise Control Cable Free Play (4-Cylinder)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

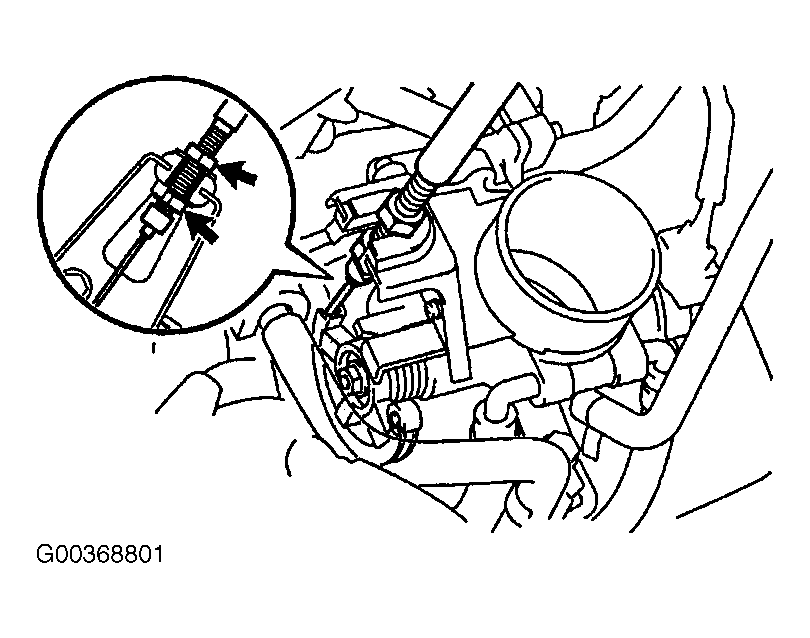

Fig 3: Adjusting Cruise Control Cable Free Play (4-Cylinder)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

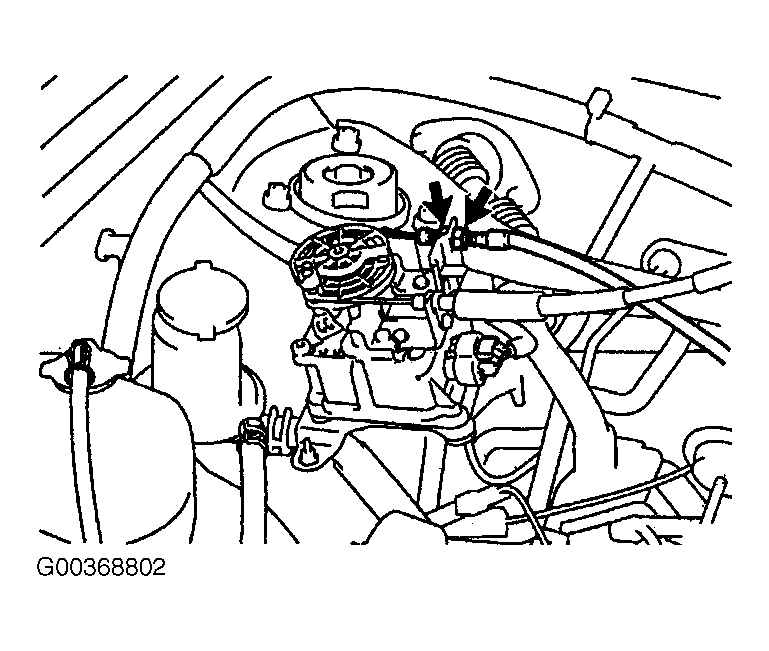

Fig 4: Adjusting accelerator control cable Play (4-Cylinder)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

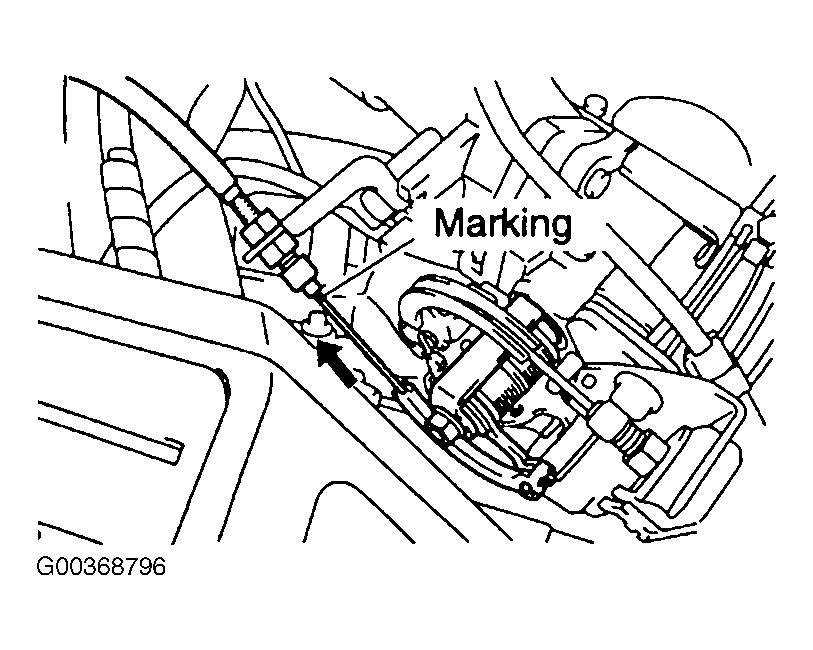

Fig 5: Identifying Cruise Control Cable Marking Position (V6)

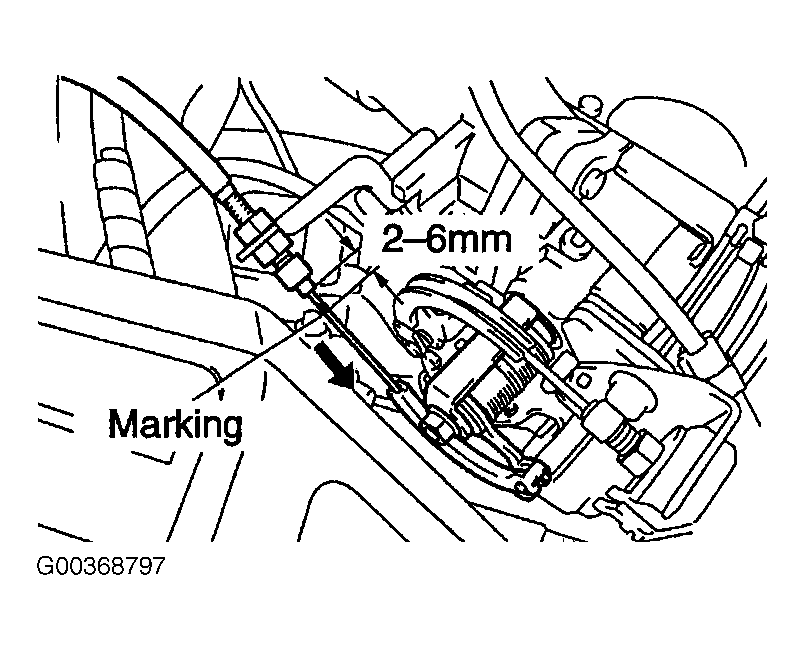

Fig 6: Measuring Cruise Control Cable Free Play (V6)

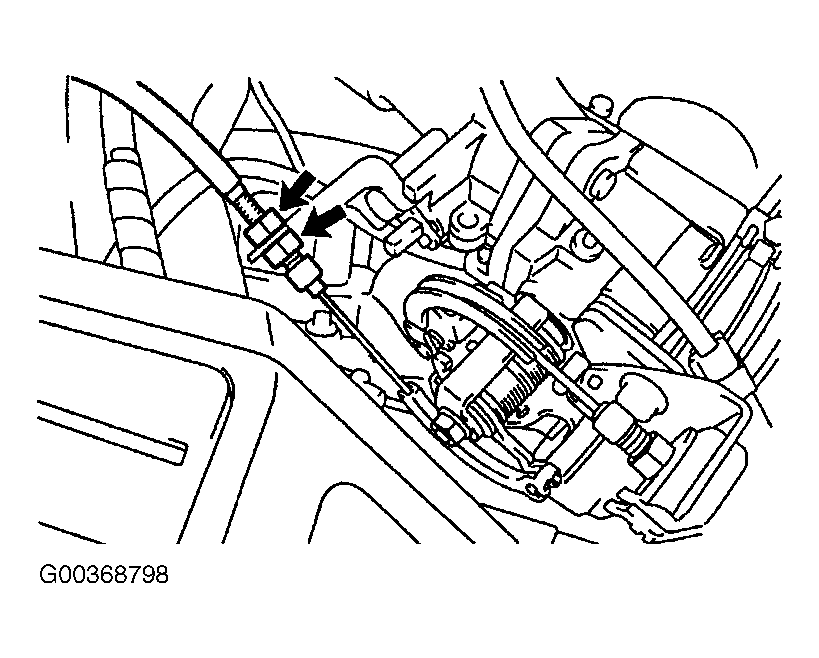

Fig 7: Adjusting Cruise Control Cable Free Play (V6)
