Removal & Installation
WARNING: This page is about a different car, the 2004 Toyota Avalon, 2003 Toyota Avalon, and 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
- Remove front wheel. Remove 2 nuts and bolt, and disconnect lower control arm from lower ball joint. Remove 2 bolts on front side of lower control arm and bolt and nut of rear side of lower control arm. Remove lower control arm.

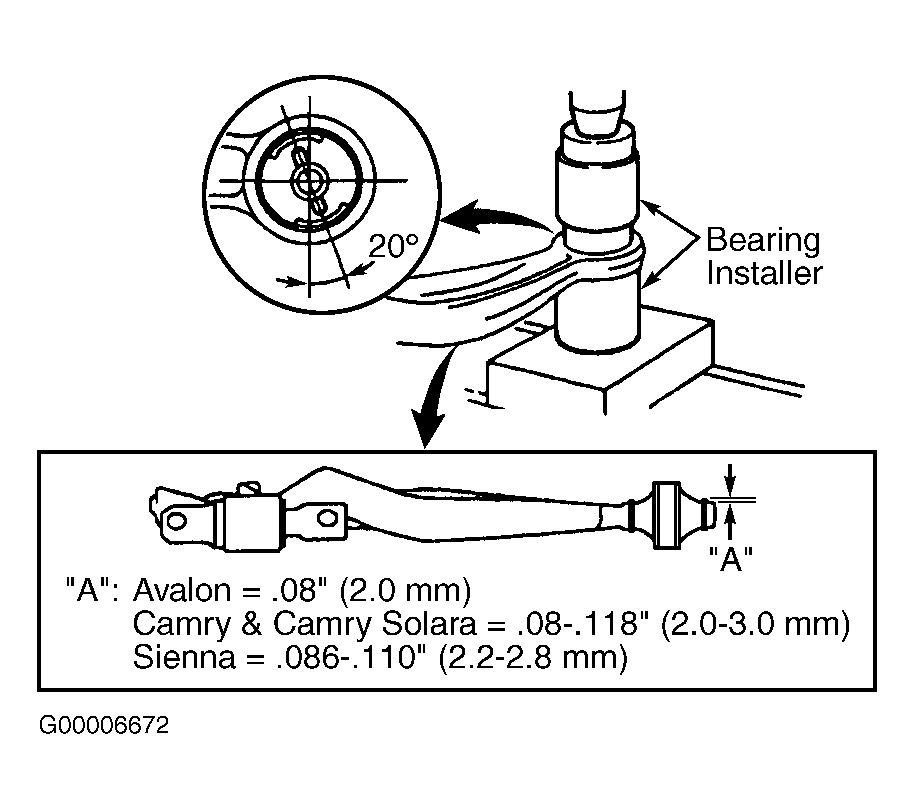

- Remove lower control arm bushing stopper from control arm shaft. Bushing can be replaced with a press. If a NEW bushing is installed, note position of installation and amount of protrusion. See Fig 1.
- To install, reverse removal procedure. Tighten bolts and nuts to specifications. See TORQUE SPECIFICATIONS
