Vacuum Brake Booster

WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For on-vehicle inspection procedure, see Fig 1.

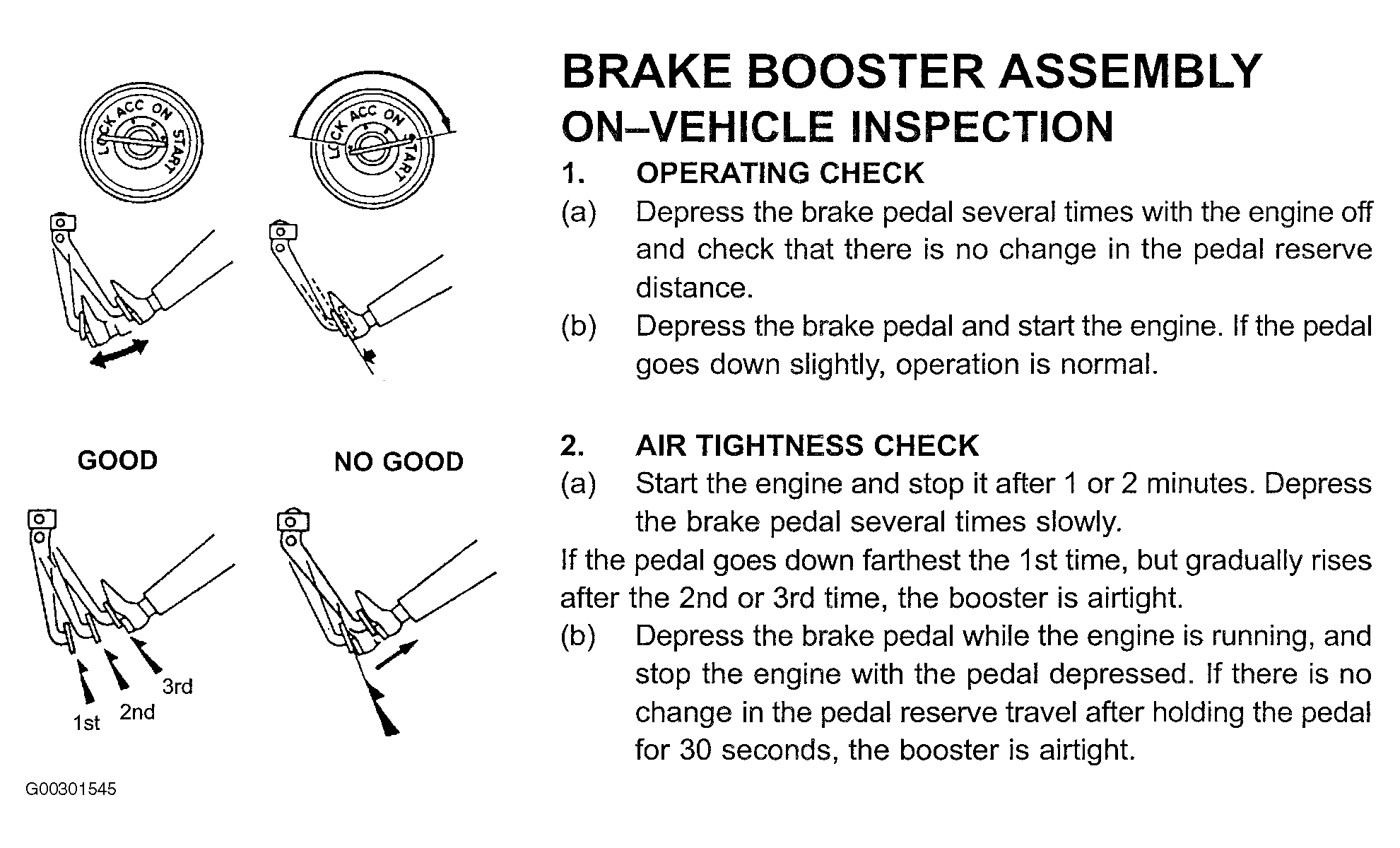

Fig 1: Brake Booster Assembly On-Vehicle Inspection
G00301545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
