Vacuum Brake Booster
WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

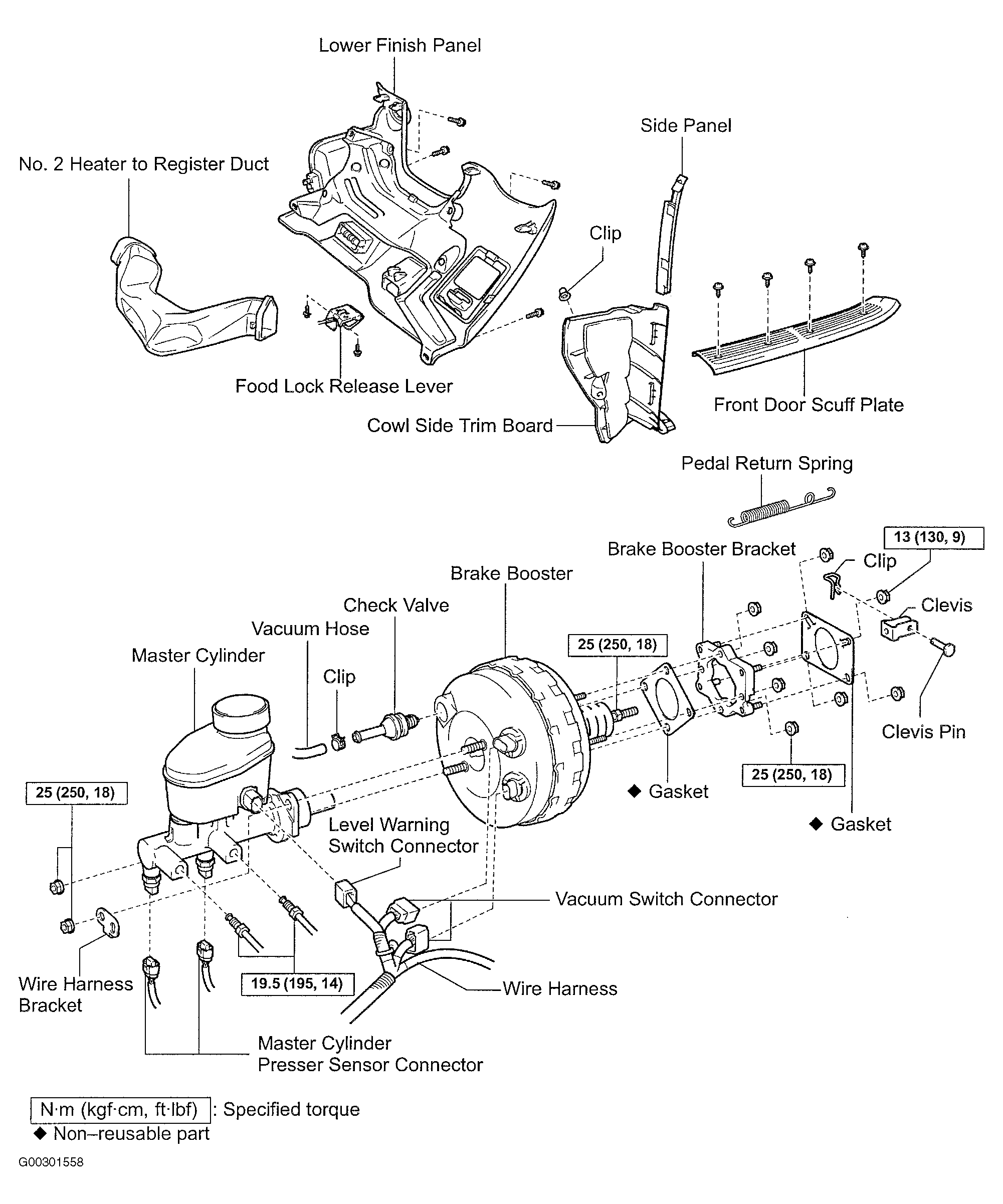

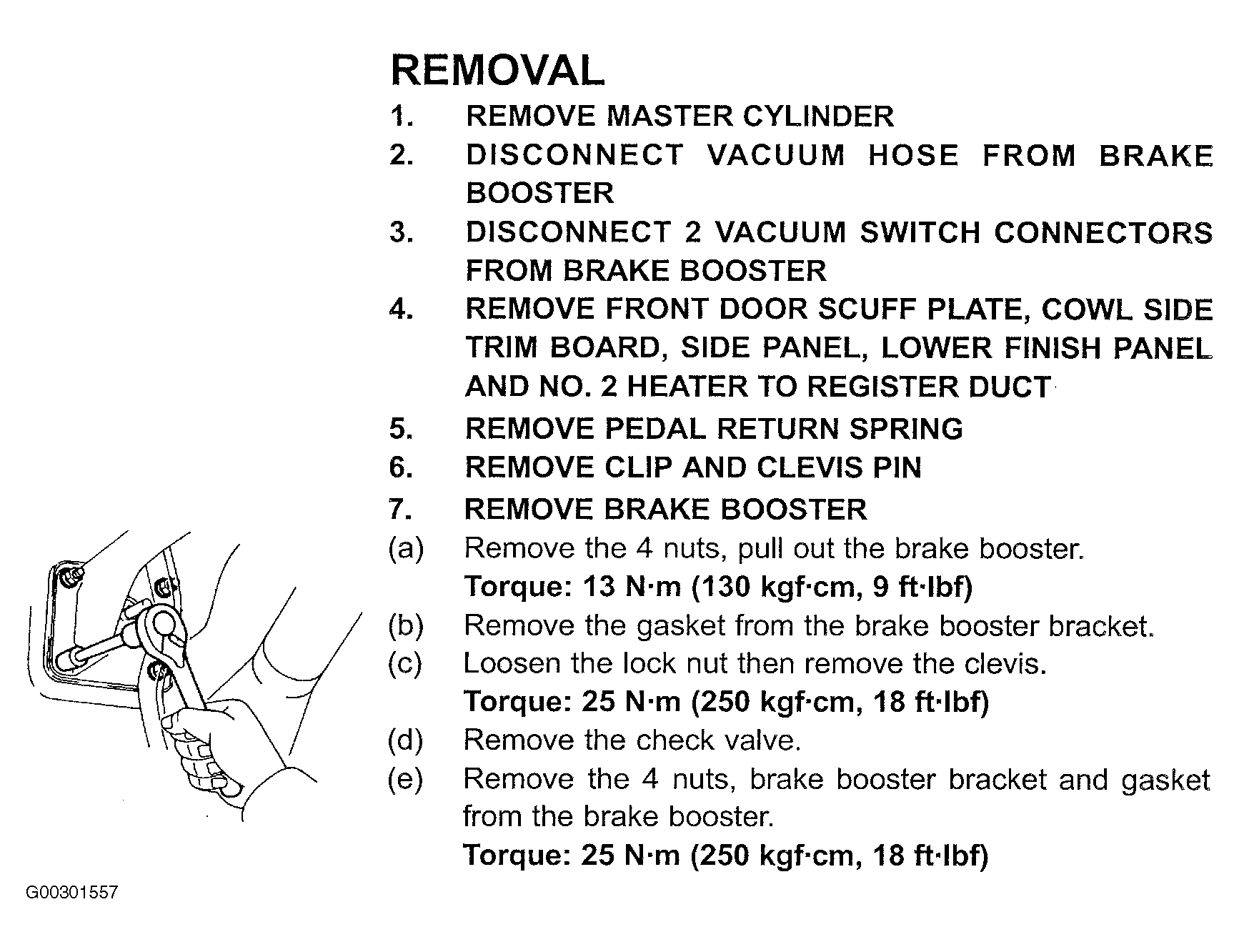

For removal procedure, see Fig 1. For component location view, see Fig 2. For master cylinder removal procedure, see MASTER CYLINDER . Installation is in the reverse order of removal procedure. After installation, bleed system. See BLEEDING BRAKE SYSTEM .
