WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

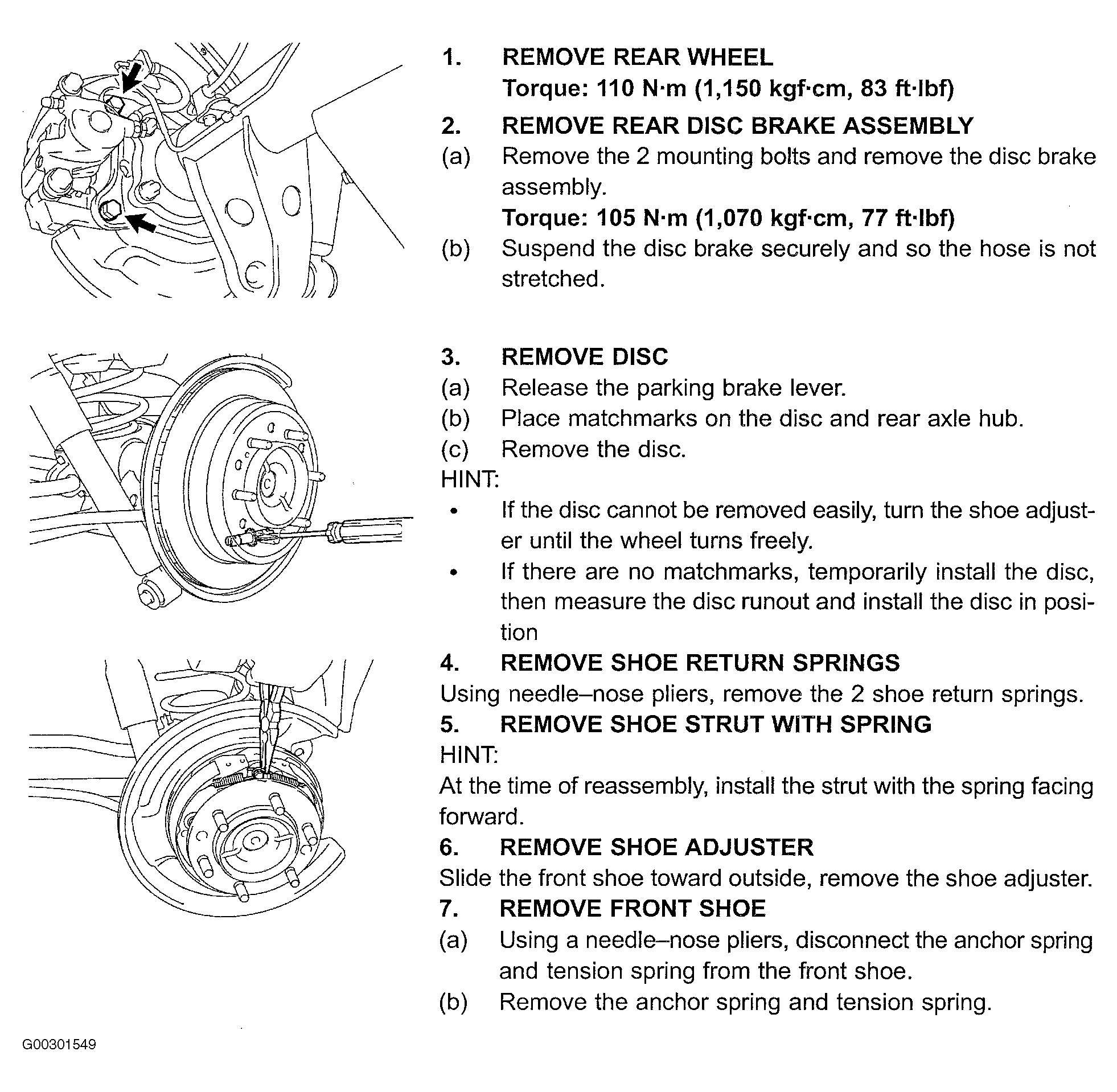

For removal procedure, see Fig 1 and Fig 2
. For component view, see Fig 3.
Fig 1: Parking Brake Assembly Removal Procedure (1 Of 2)
