Front Disc Brake Pads
WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It is not necessary to remove the brake tube or drain brake fluid if only replacing brake pads.
NOTE:
When replacing worn pads, the anti-squeal shims must be replaced together with the pads.

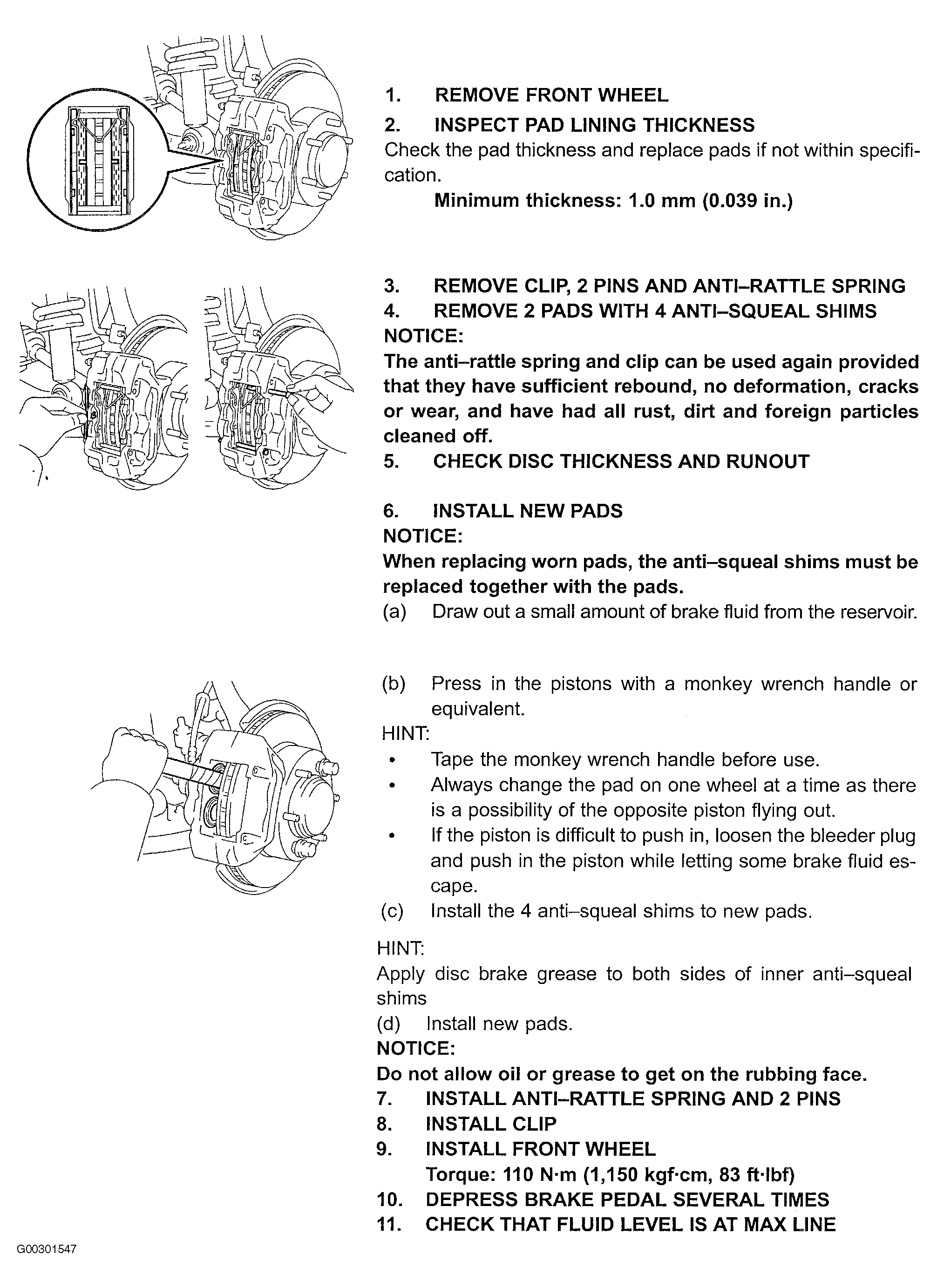

For procedure, see Fig 1. For component view, see Fig 2. To check pad thickness, see DISC BRAKE SPECIFICATIONS . To check disc thickness, see FRONT BRAKE DISC . To check disc runout, see DISC RUNOUT under ADJUSTMENTS. If bleeder screws were loosened, bleed system. See BLEEDING BRAKE SYSTEM .
