Disassembly & Assembly

WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For removal and installation procedure, see FRONT BRAKE CALIPER  under REMOVAL & INSTALLATION. For overhaul procedure, see Fig 1. For component view, see Fig 2.

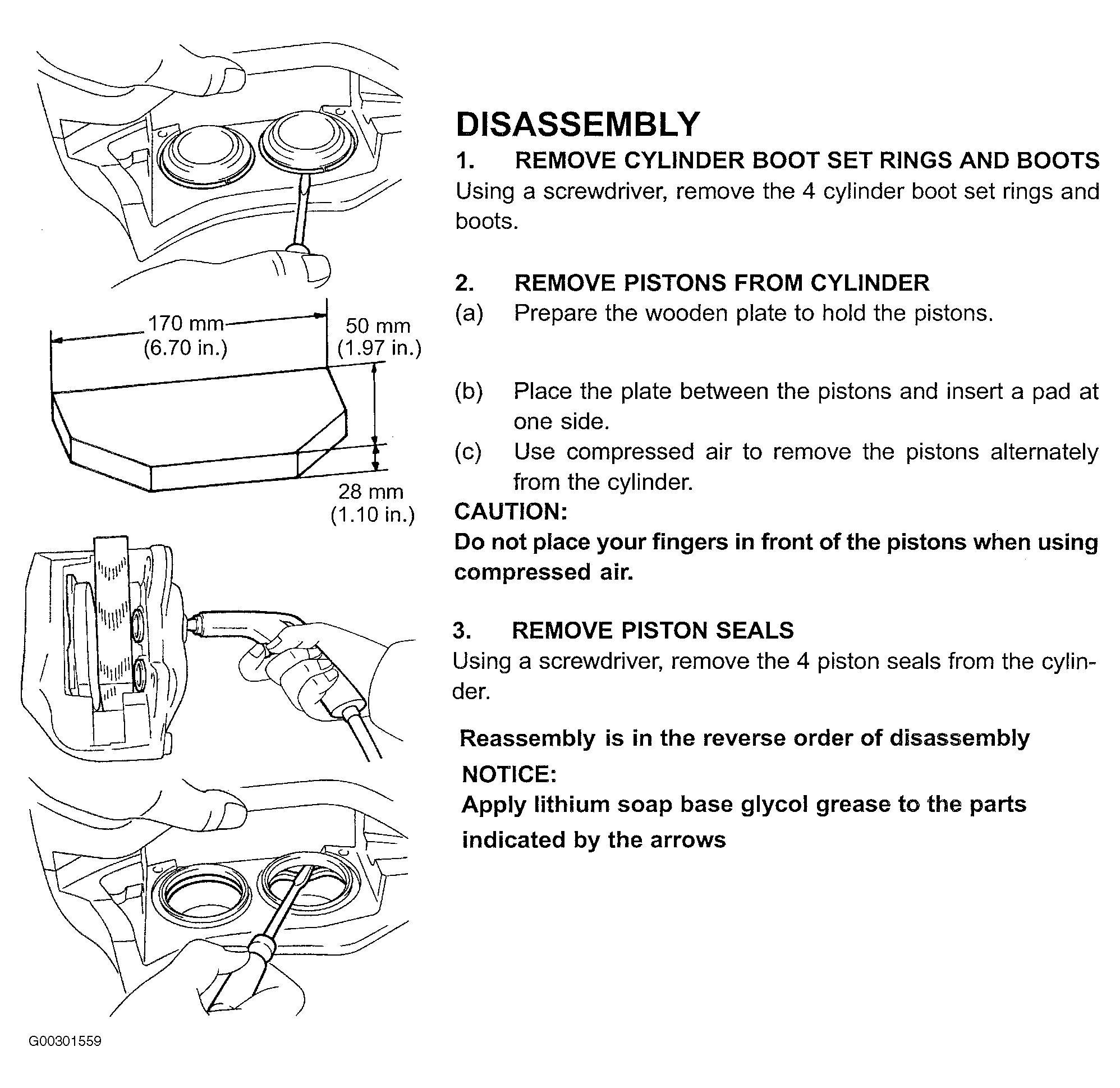

Fig 1: Front Brake Caliper Overhaul Procedure
G00301559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

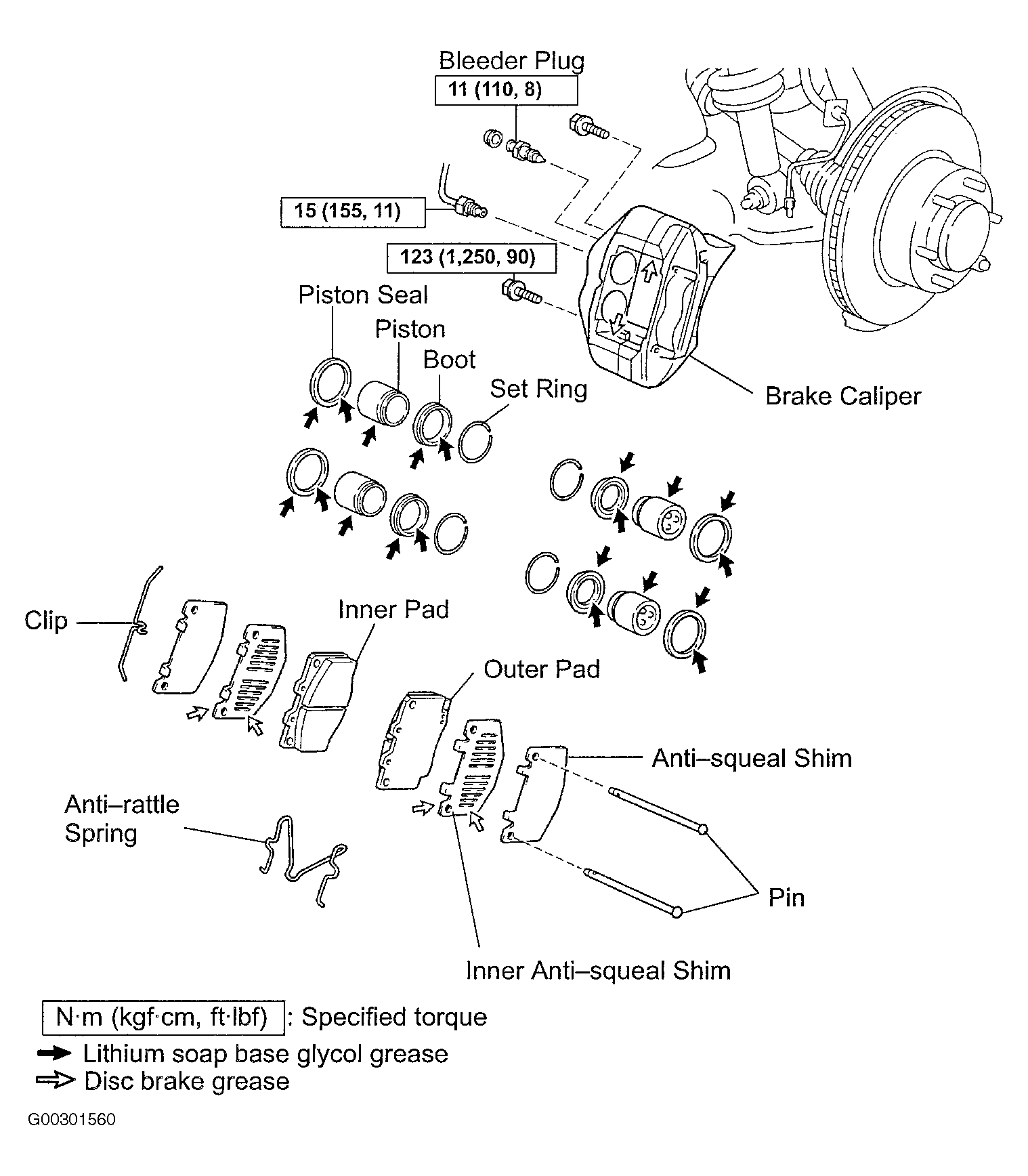

Fig 2: Locating Front Brake Caliper Components
G00301560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
