Brake Pedal Height, Free Play, Pedal Reserve Distance & Stop Lamp Switch
WARNING: This page is about a different car, the 2004 Toyota Sequoia, 2003 Toyota Sequoia, and 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

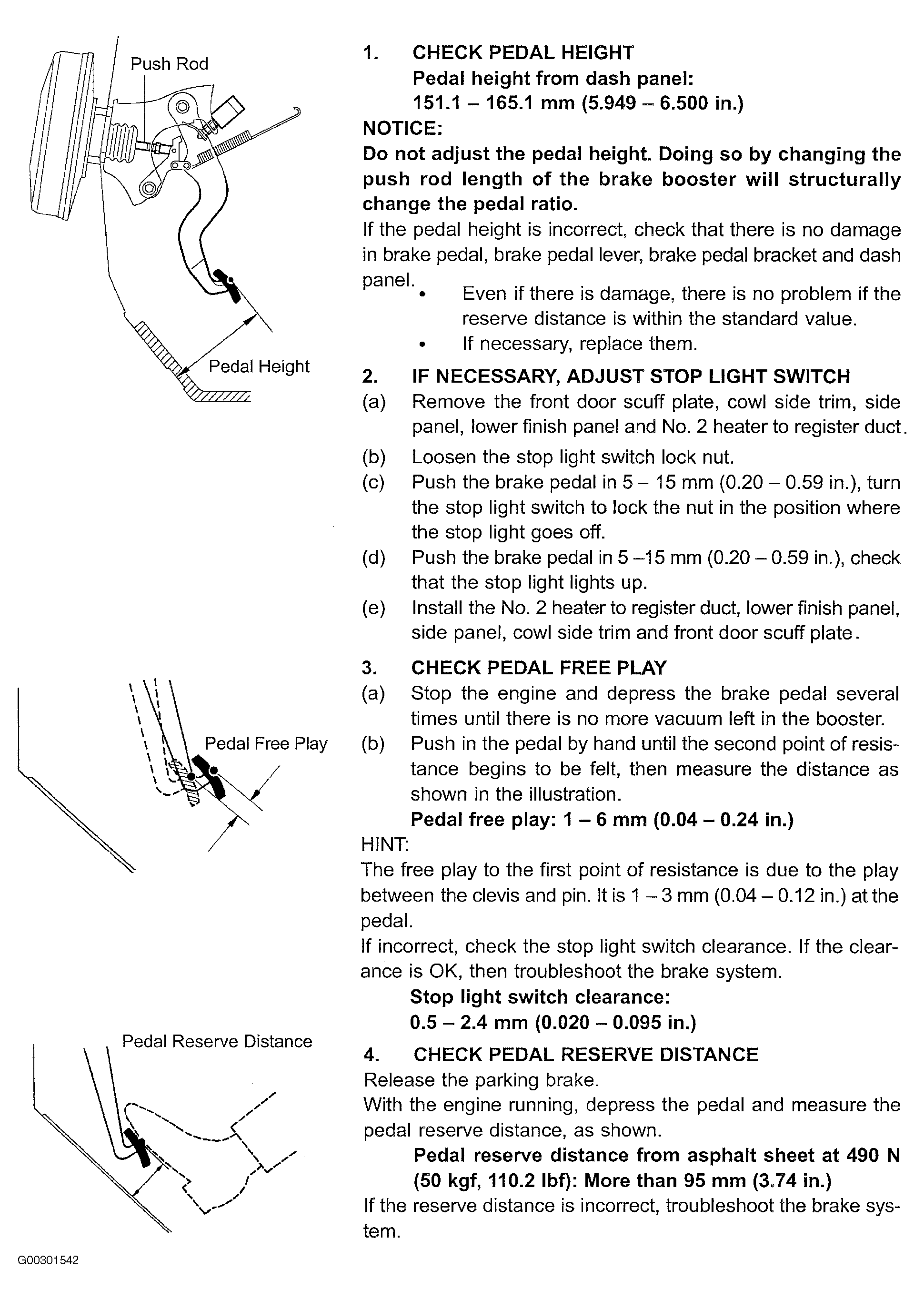

For all brake pedal adjustment procedures, see Fig 1. For specifications, see BRAKE PEDAL HEIGHT & FREE PLAY SPECIFICATIONS table, STOP LIGHT SWITCH CLEARANCE table and BRAKE PEDAL MINIMUM RESERVE DISTANCE SPECIFICATIONS table. For torque specifications, see TORQUE SPECIFICATIONS .
BRAKE PEDAL HEIGHT & FREE PLAY SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Brake Pedal Height | 5.949-6.50 (151.1-165.1) |
| Brake Pedal Free Play | 0.04-0.24 (1-6) |
STOP LIGHT SWITCH CLEARANCE
| Application | In. (mm) |
|---|---|
| Sequoia | .02-.095 (.5-2.4) |
MINIMUM BRAKE PEDAL RESERVE DISTANCE SPECIFICATIONS
| Application | (1) In. (mm) | ||
|---|---|---|---|
| Sequoia | 3.74 (95) | ||
|
|||
