Vacuum Brake Booster: Removal
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

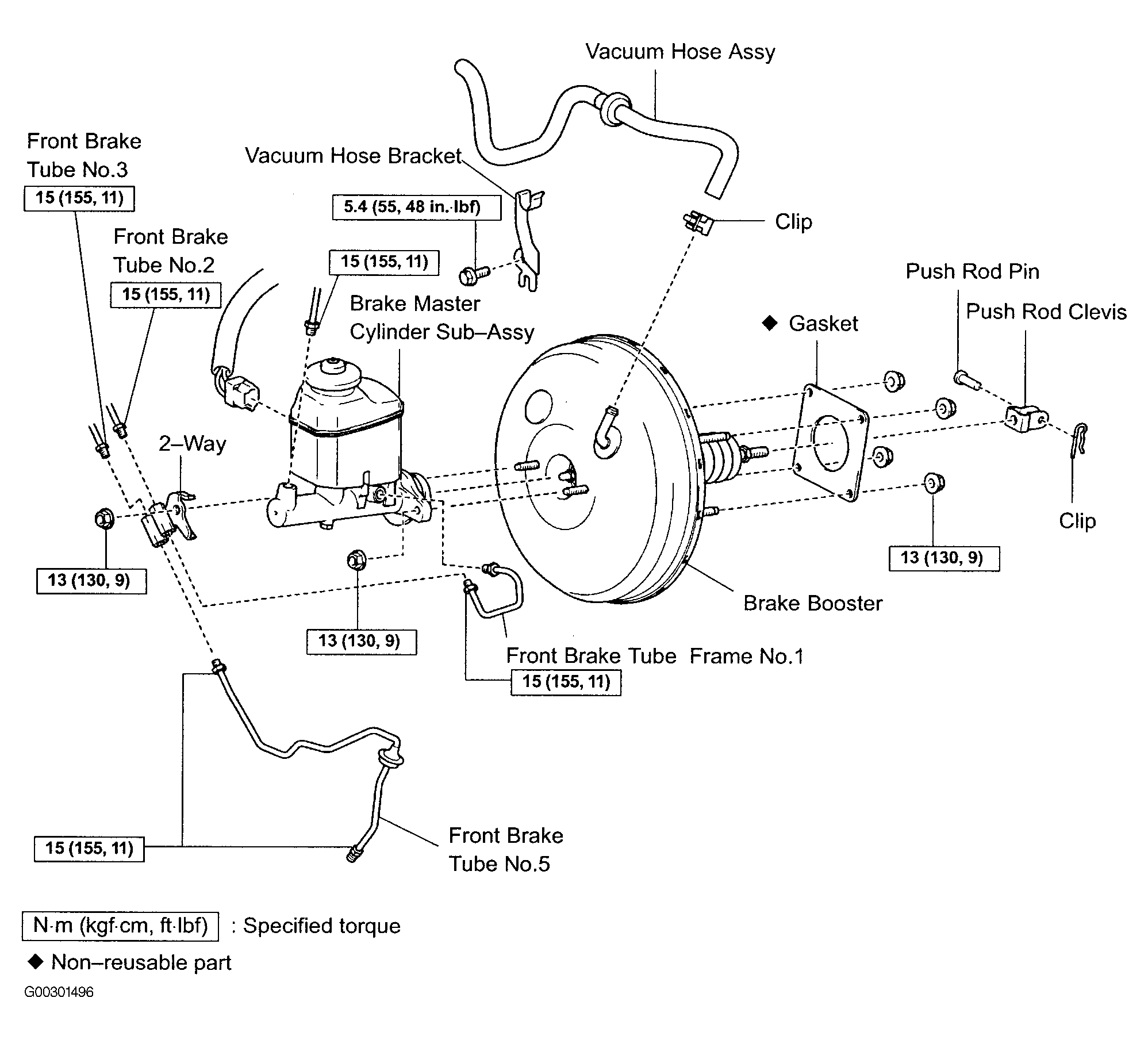

- Remove air cleaner cover assembly. Drain brake fluid. Remove master cylinder. See MASTER CYLINDER . See Fig 1. Remove left front door scuff plate. See Figure.
- Remove bolt and separate vacuum line from body. Slide clip and disconnect vacuum hose from brake booster. Remove instrument panel upper sub-assembly. Remove lower left instrument panel insert sub-assembly. Remove brake pedal return spring. Remove clip and push rod pin.
- Loosen lock nut and remove push rod clevis. Use Special Tool (09023-00100) and remove front brake tube No. 5. Remove nuts and pull out brake booster assembly. Remove vacuum brake booster gasket.
