Bleeding Procedures (Production Date From July 2003)

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

For bleeding procedure, see Fig 1-Fig 4 .

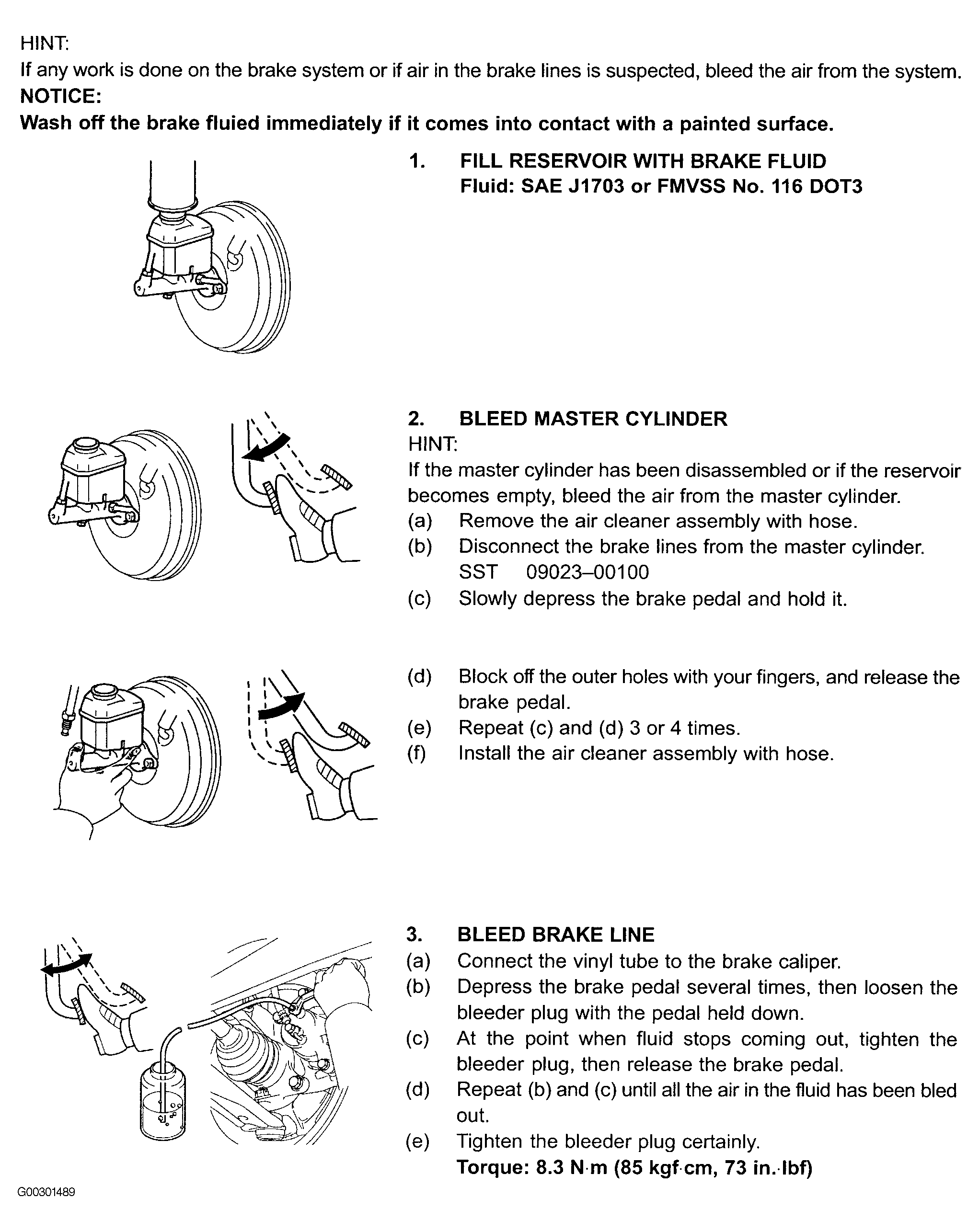

Fig 1: Bleeding Procedure (Production Date From July 2003 - 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

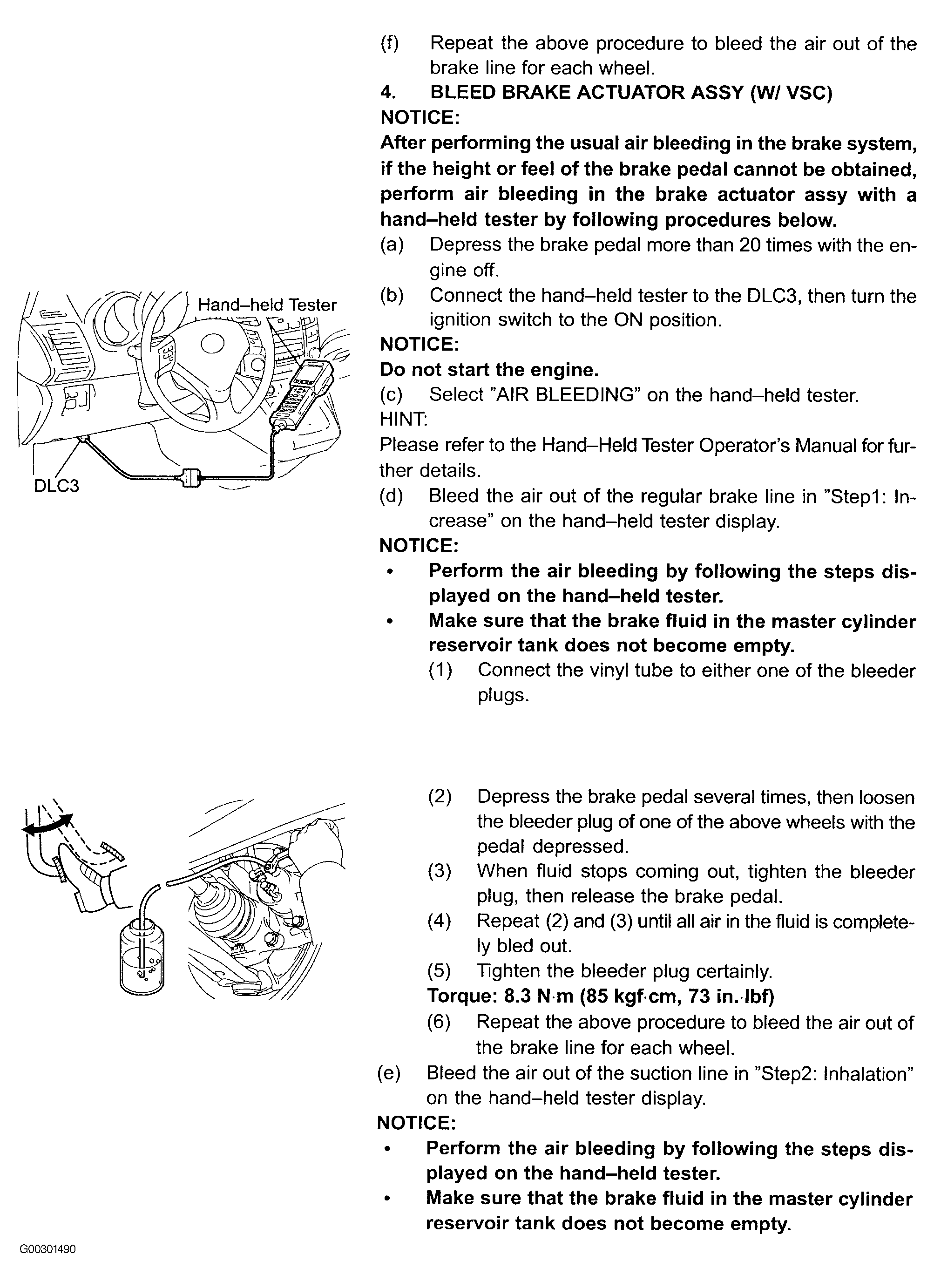

Fig 2: Bleeding Procedure (Production Date From July 2003 - 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

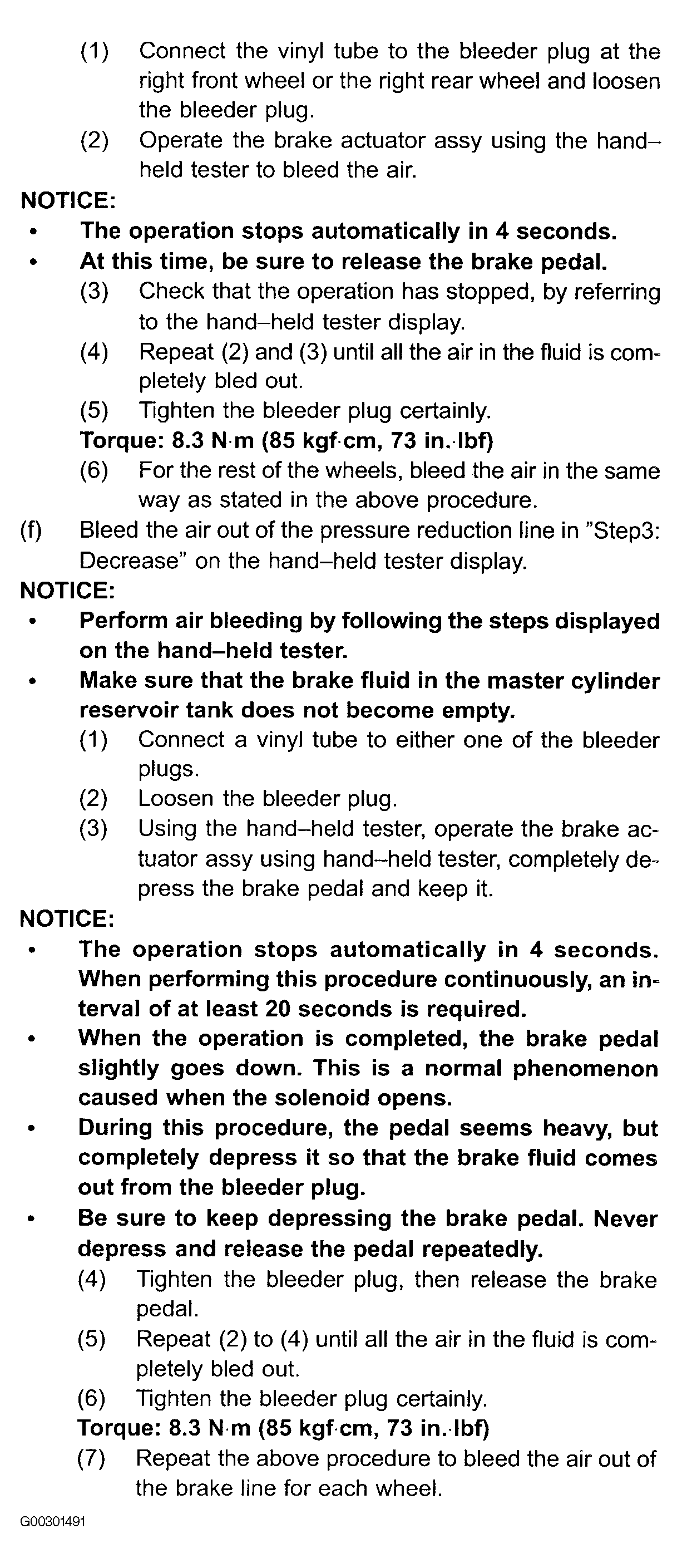

Fig 3: Bleeding Procedure (Production Date From July 2003 - 3 Of 4)

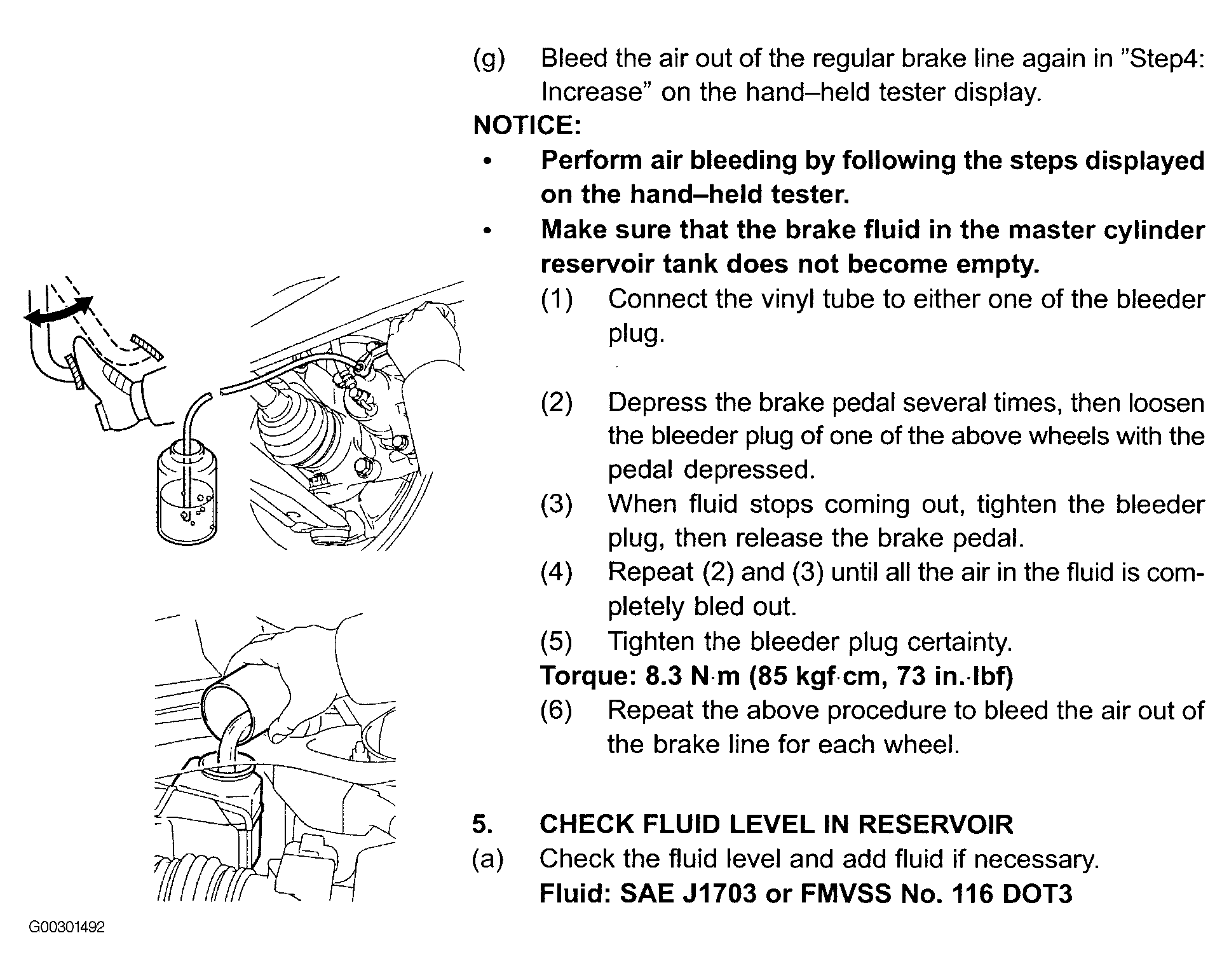

Fig 4: Bleeding Procedure (Production Date From July 2003 - 4 Of 4)
