Removal & Installation (Front)
WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

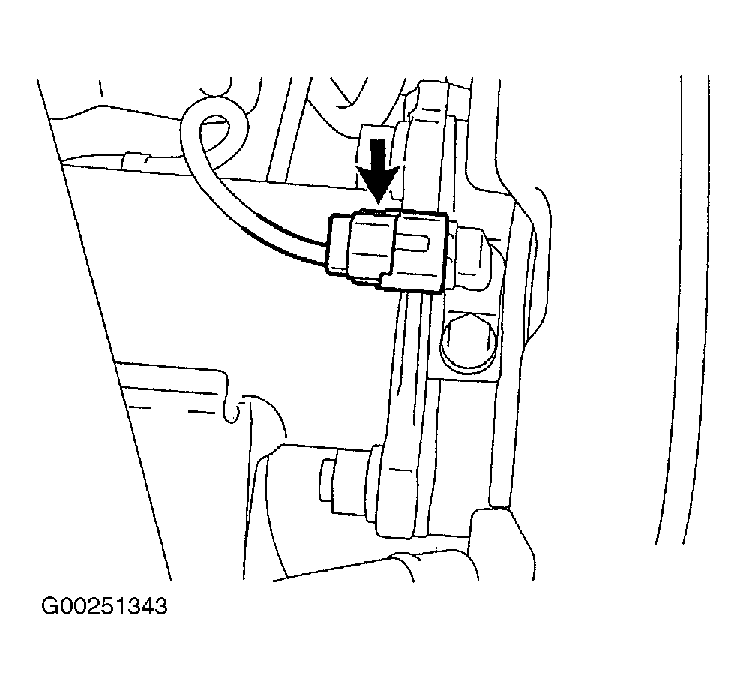

- Disconnect speed sensor connector. See Fig 1.
- Using a hexagon wrench (5 mm), remove bolt and front speed sensor from steering knuckle.
- To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
