Removal & Installation
WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

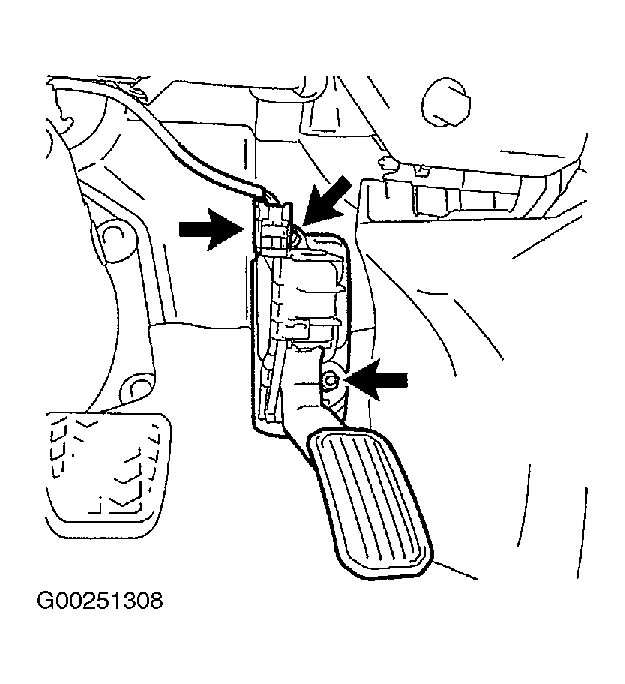

- Disconnect accelerator pedal connector. Remove 2 nuts and accelerator pedal assembly. See Fig 1.
- To install, reverse removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS .
