Removal & Installation

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

To locate ventilation valve, see Fig 1. Disconnect PCV hose. Remove ventilation valve cover. Remove ventilation valve.
To install, apply adhesive (part no. 08833-00070, Three Bond 1324 or equivalent) to 2 or 3 threads. Install PCV valve and tighten to specification. See TORQUE SPECIFICATIONS . After tightening, rotate PCV valve clockwise to face in direction shown in figure. See Fig 2.
Install ventilation valve cover and connect PCV hose.

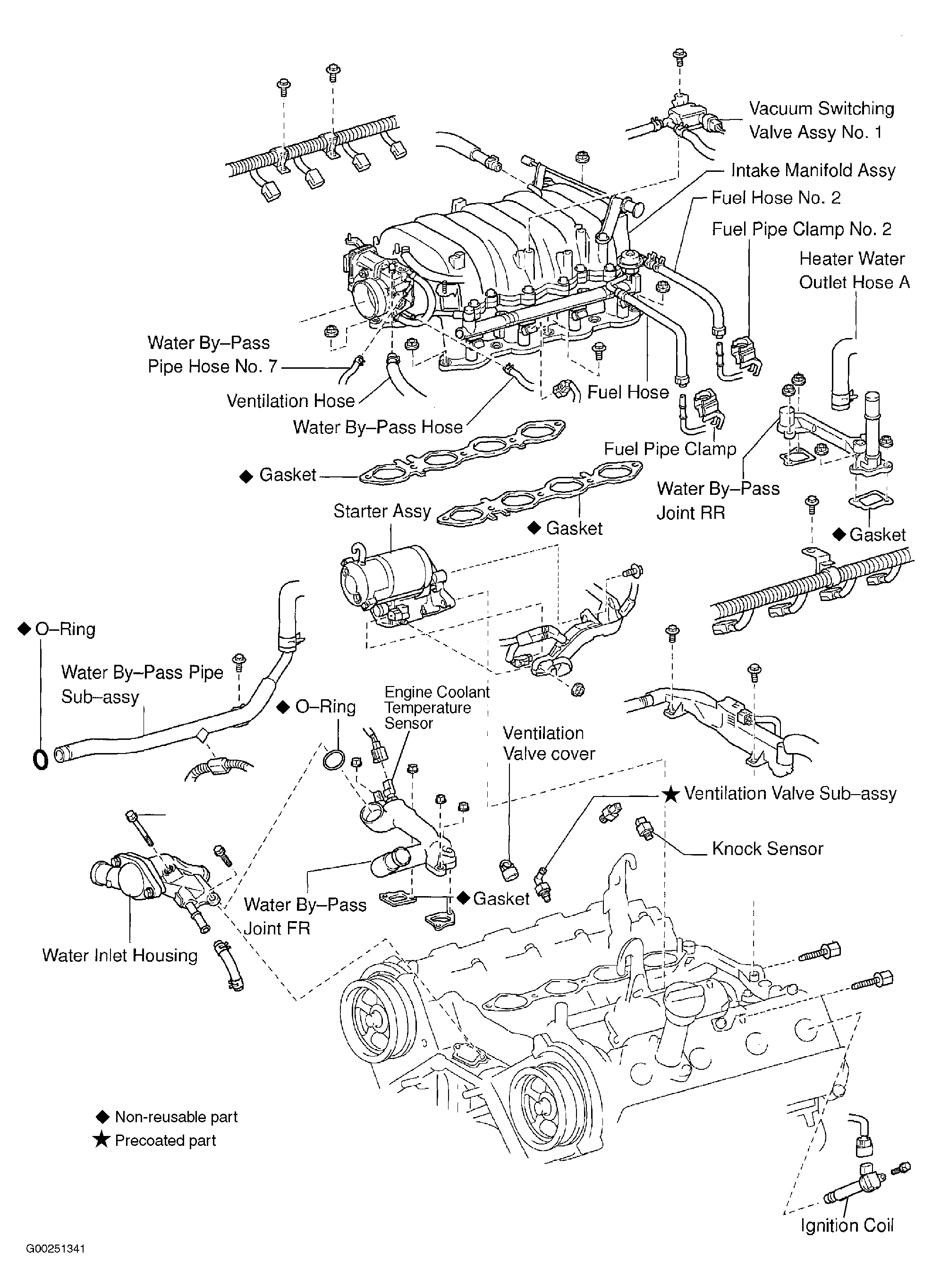

Fig 1: Locating Engine Components

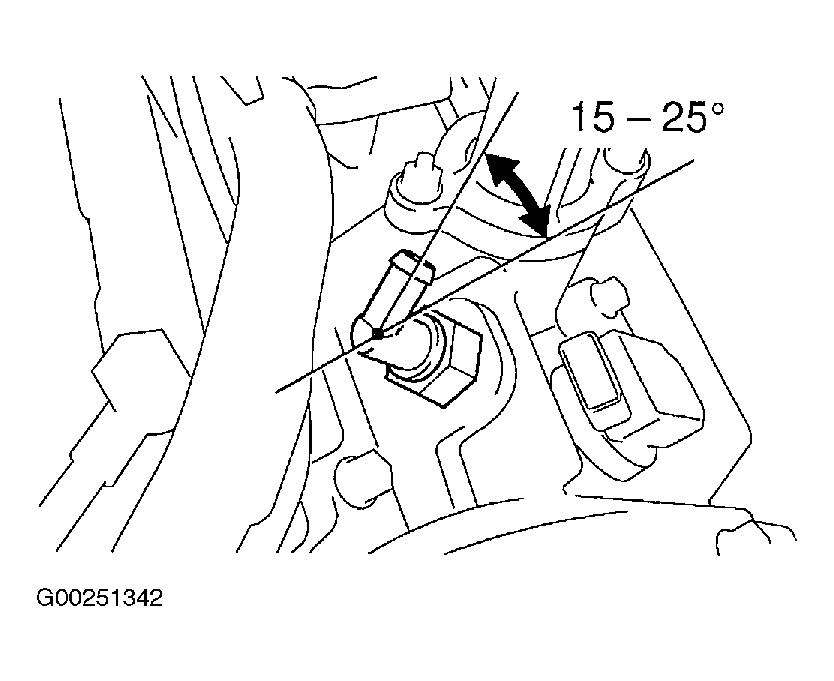

Fig 2: Installing PCV Valve
