Removal & Installation
WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
- Remove spare tire.

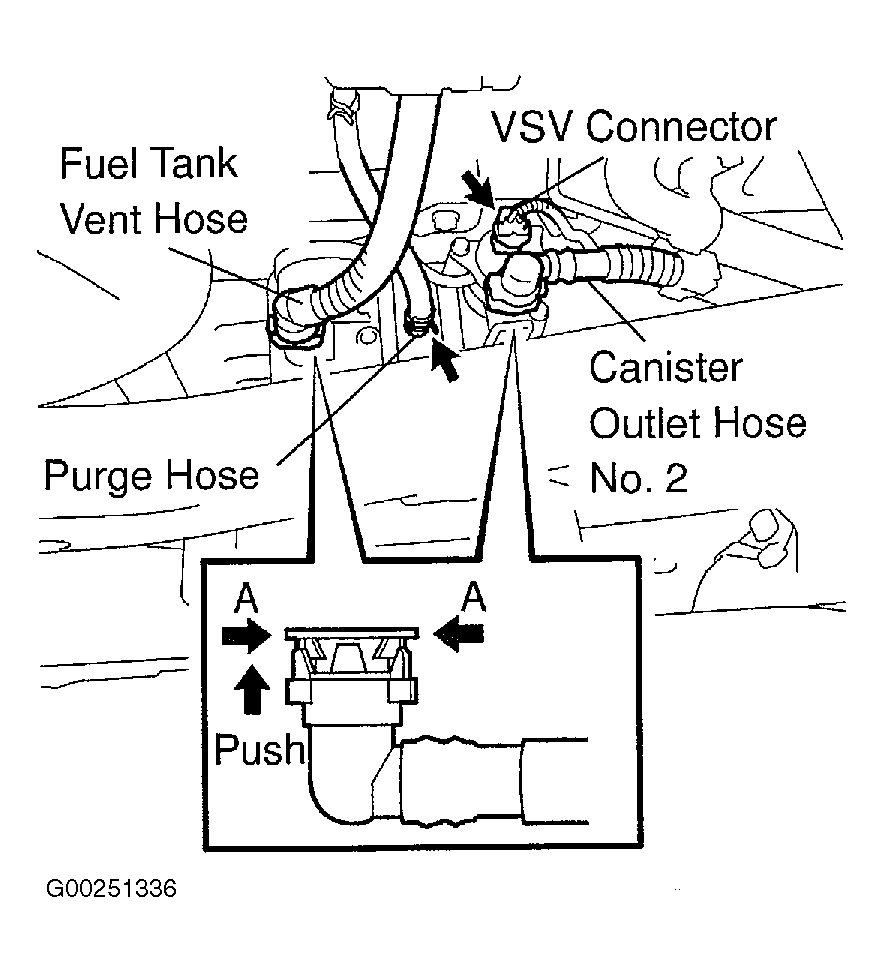

- Disconnect fuel tank vent hose and canister outlet hose No. 2 from charcoal canister by deeply pushing connectors inside, pinching portion "A", and pulling out connectors. See Fig 1.
- Disconnect VSV connector from CCV. Disconnect purge line hose from charcoal canister.
- Remove 3 bolts and charcoal canister from body.
- To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
