Diagnosis & Repair (Using Lexus Hand-Held Tester)

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 9 .

Fig 1: Evaporative Emission Control System Wiring Diagram

G00247020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

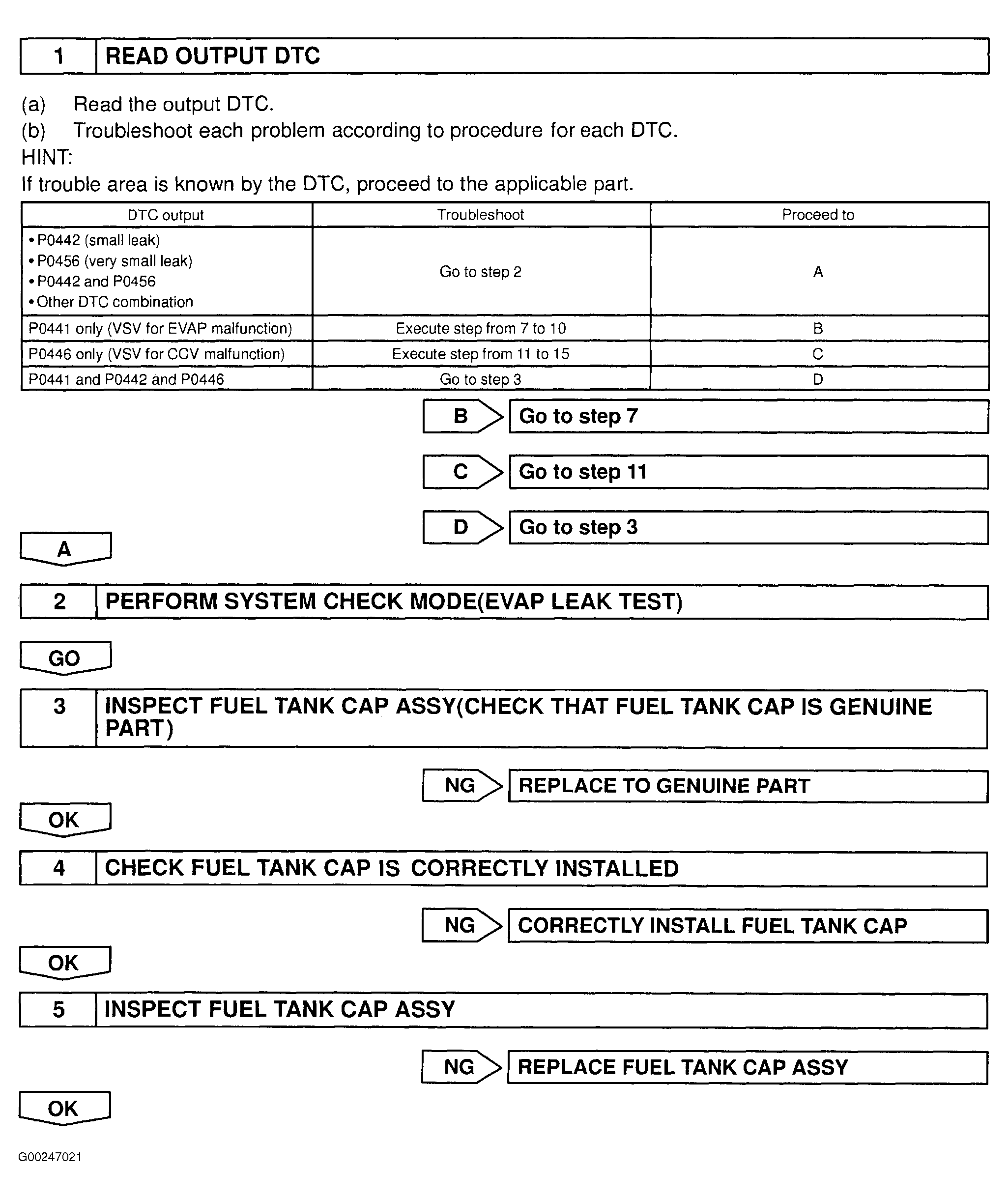

Fig 2: Diagnosis & Repair Of Evaporative Emission Control System (Step 1-5)

G00247021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

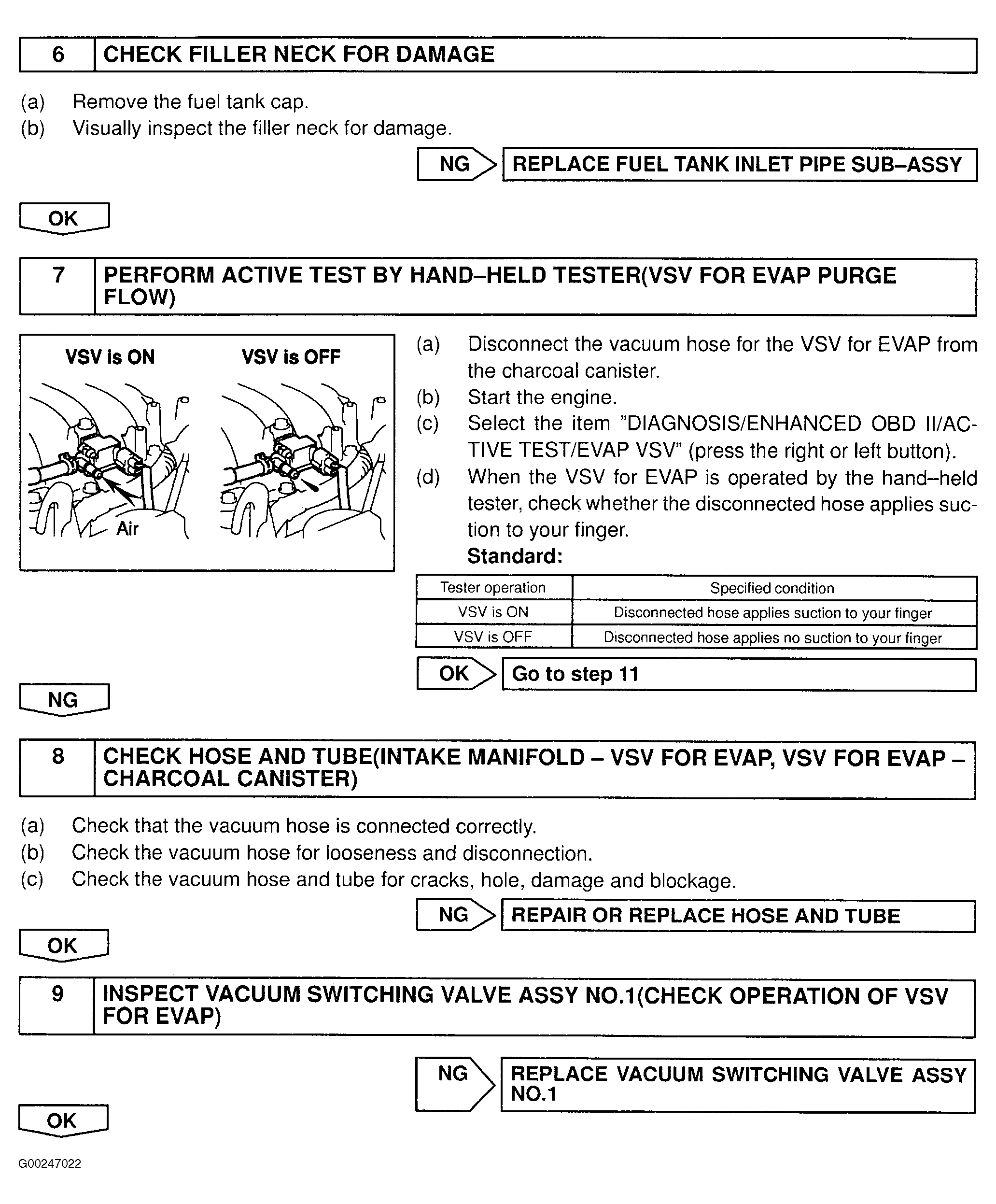

Fig 3: Diagnosis & Repair Of Evaporative Emission Control System (Step 6-9)

G00247022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

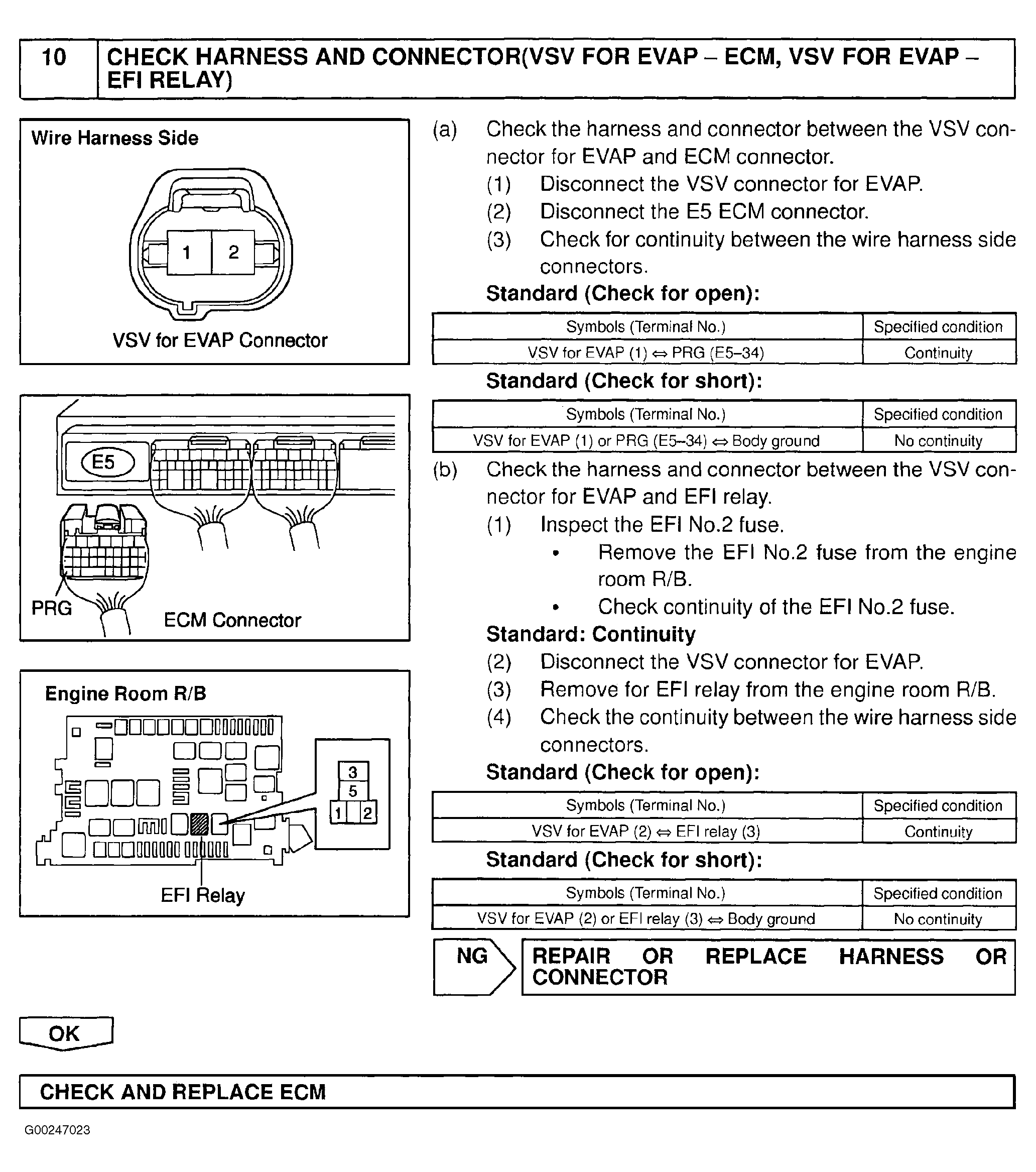

Fig 4: Diagnosis & Repair Of Evaporative Emission Control System (Step 10)

G00247023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

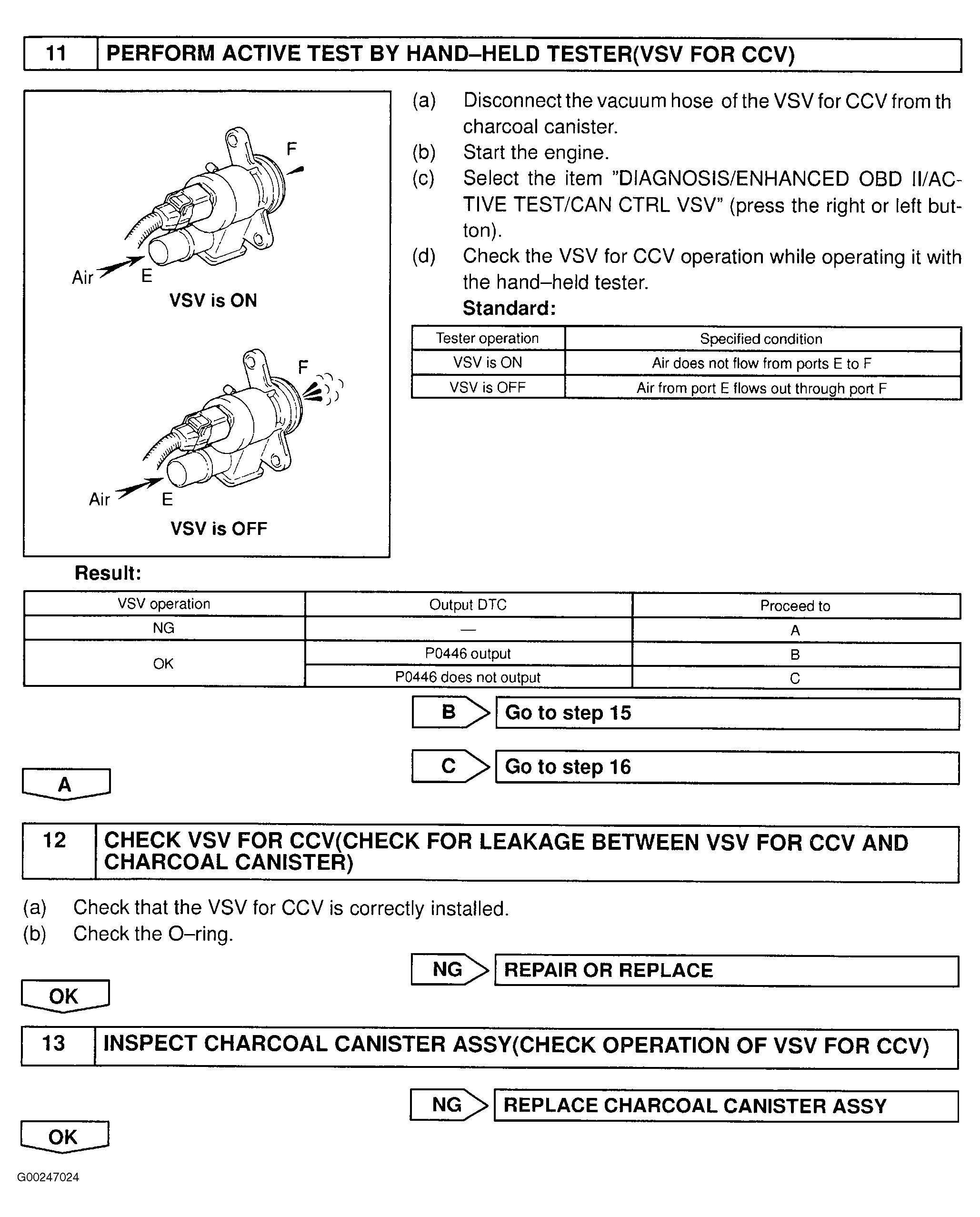

Fig 5: Diagnosis & Repair Of Evaporative Emission Control System (Step 11-13)

G00247024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

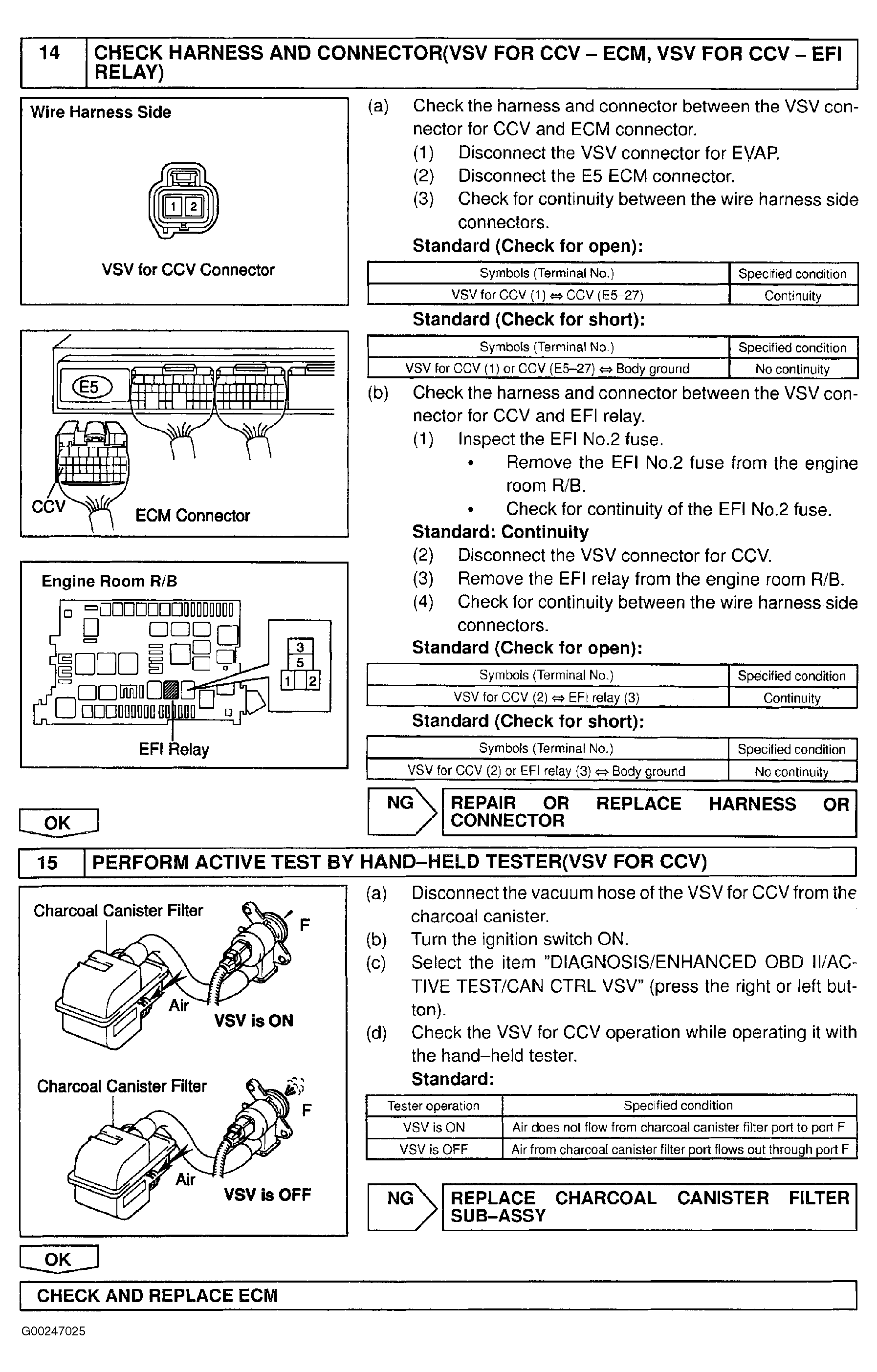

Fig 6: Diagnosis & Repair Of Evaporative Emission Control System (Step 14-15)

G00247025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

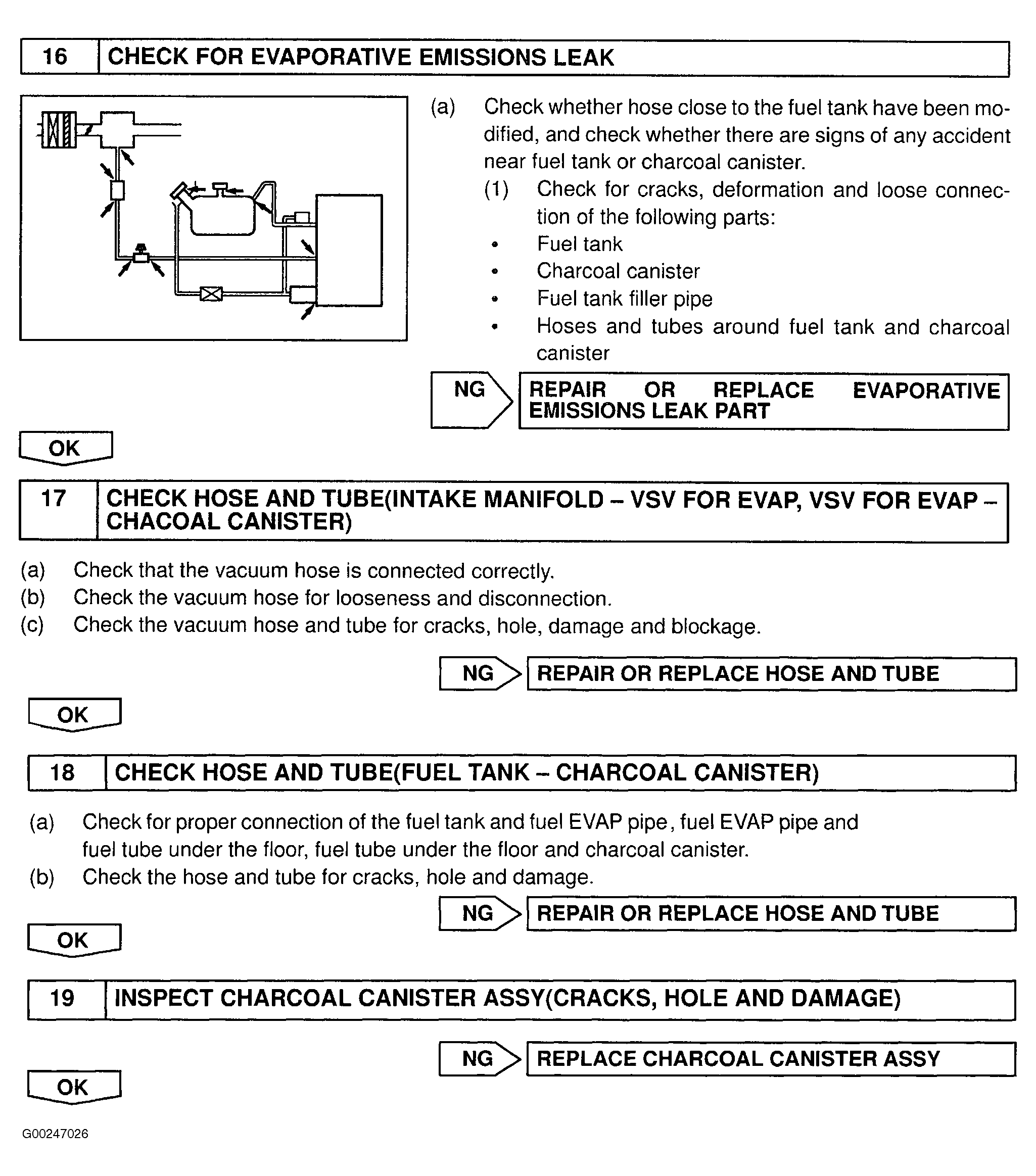

Fig 7: Diagnosis & Repair Of Evaporative Emission Control System (Step 16-19)

G00247026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

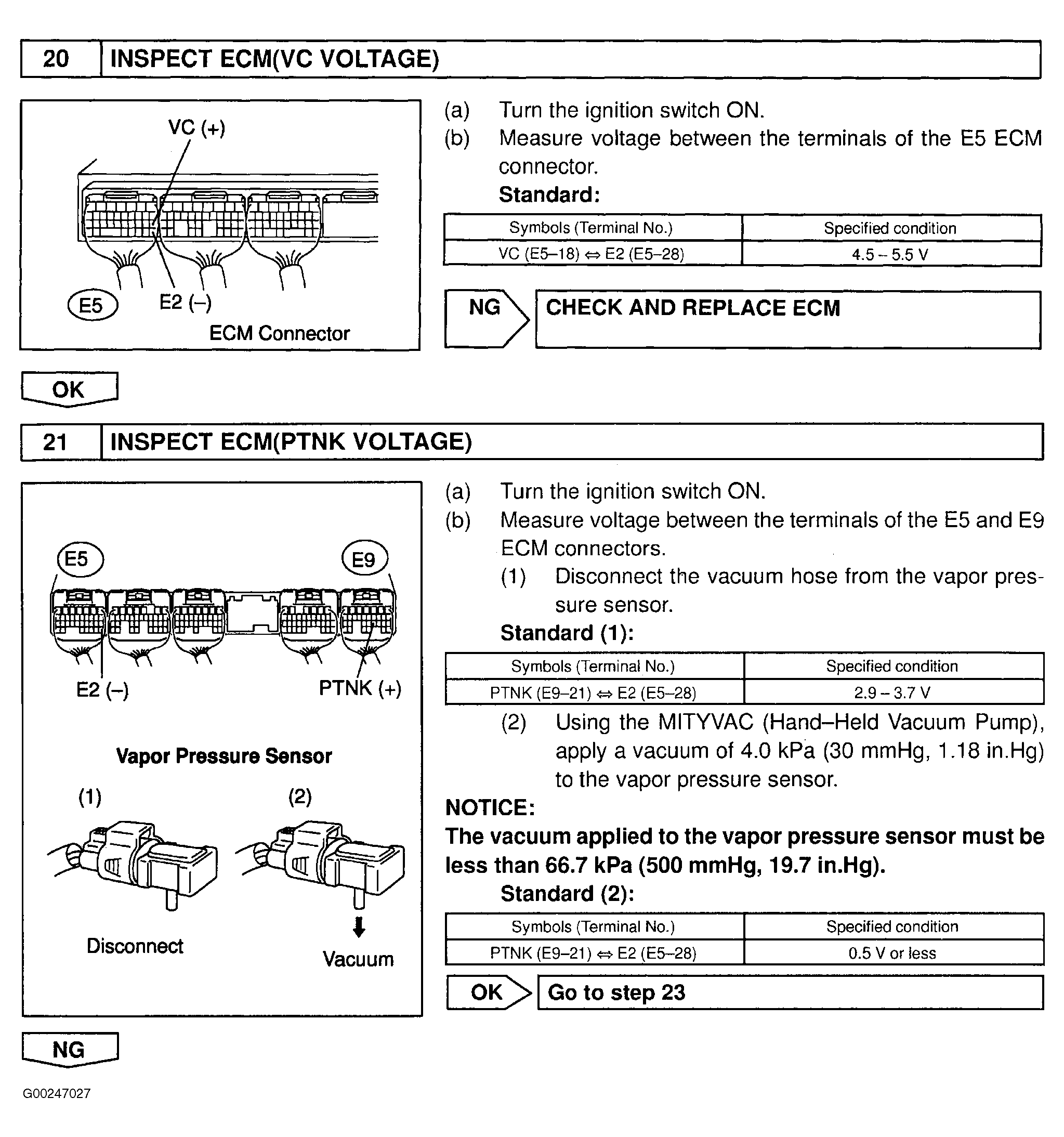

Fig 8: Diagnosis & Repair Of Evaporative Emission Control System (Step 20-21)

G00247027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

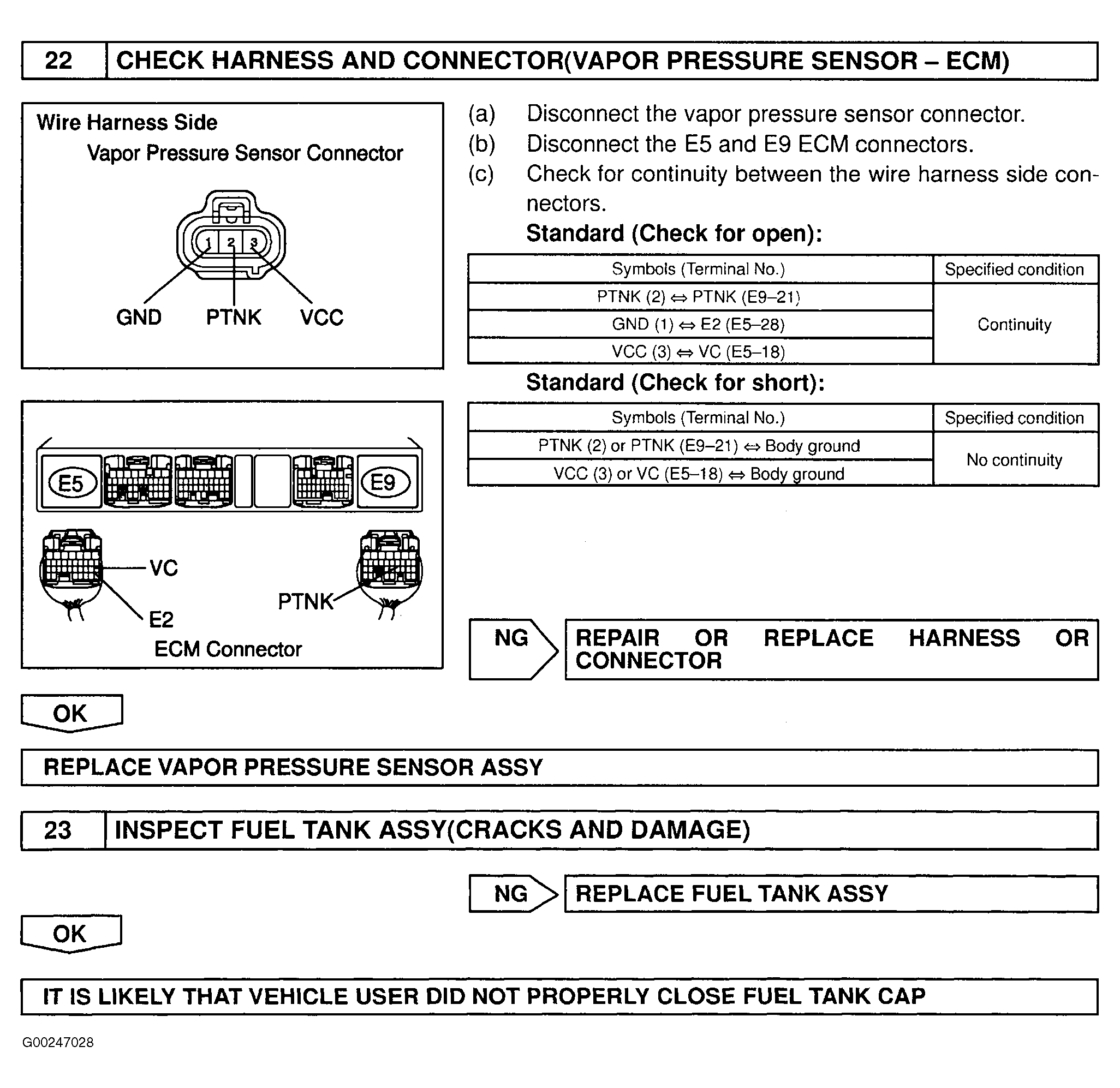

Fig 9: Diagnosis & Repair Of Evaporative Emission Control System (Step 22-23)

G00247028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
