Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 5 .

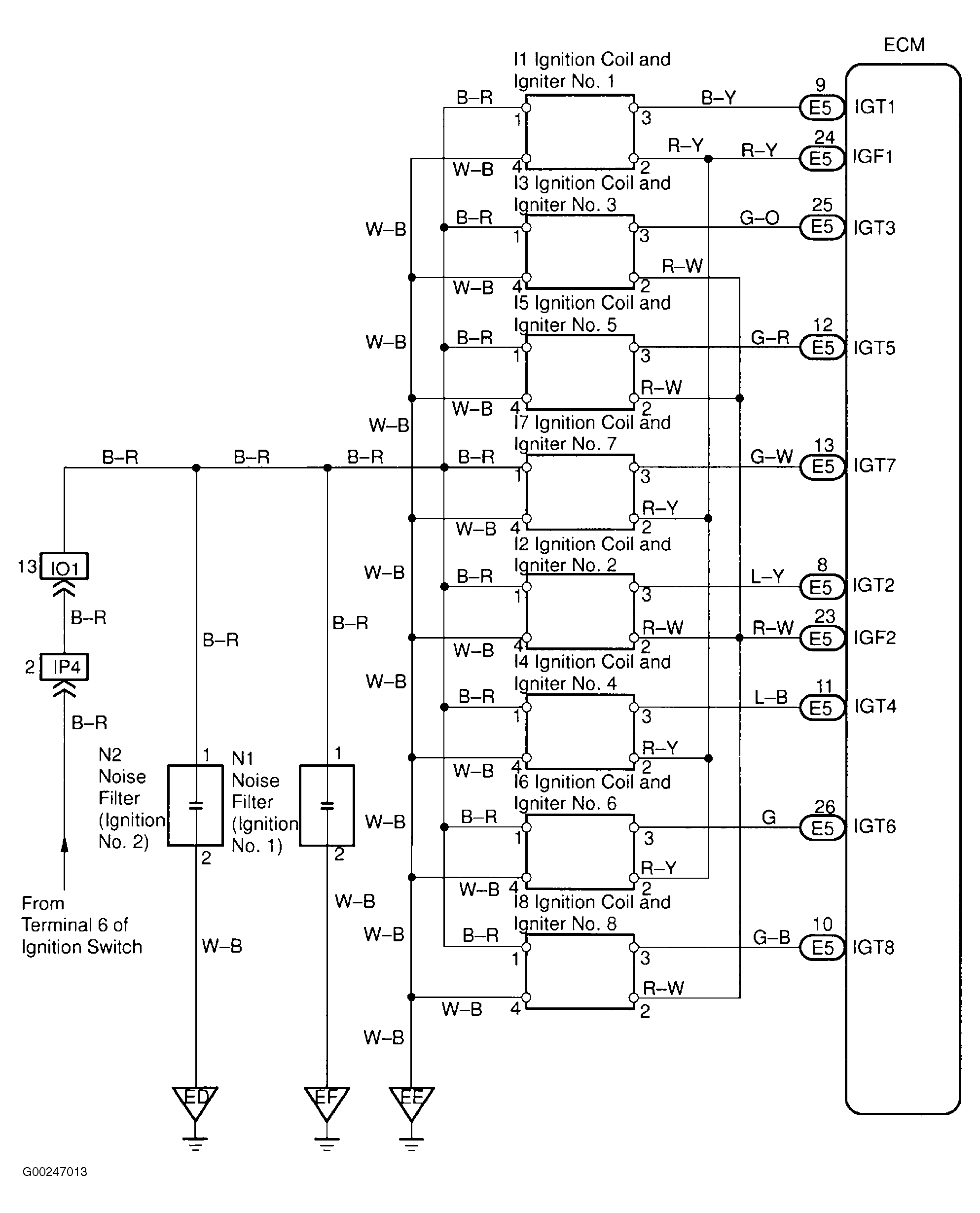

Fig 1: Igniter Coil Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

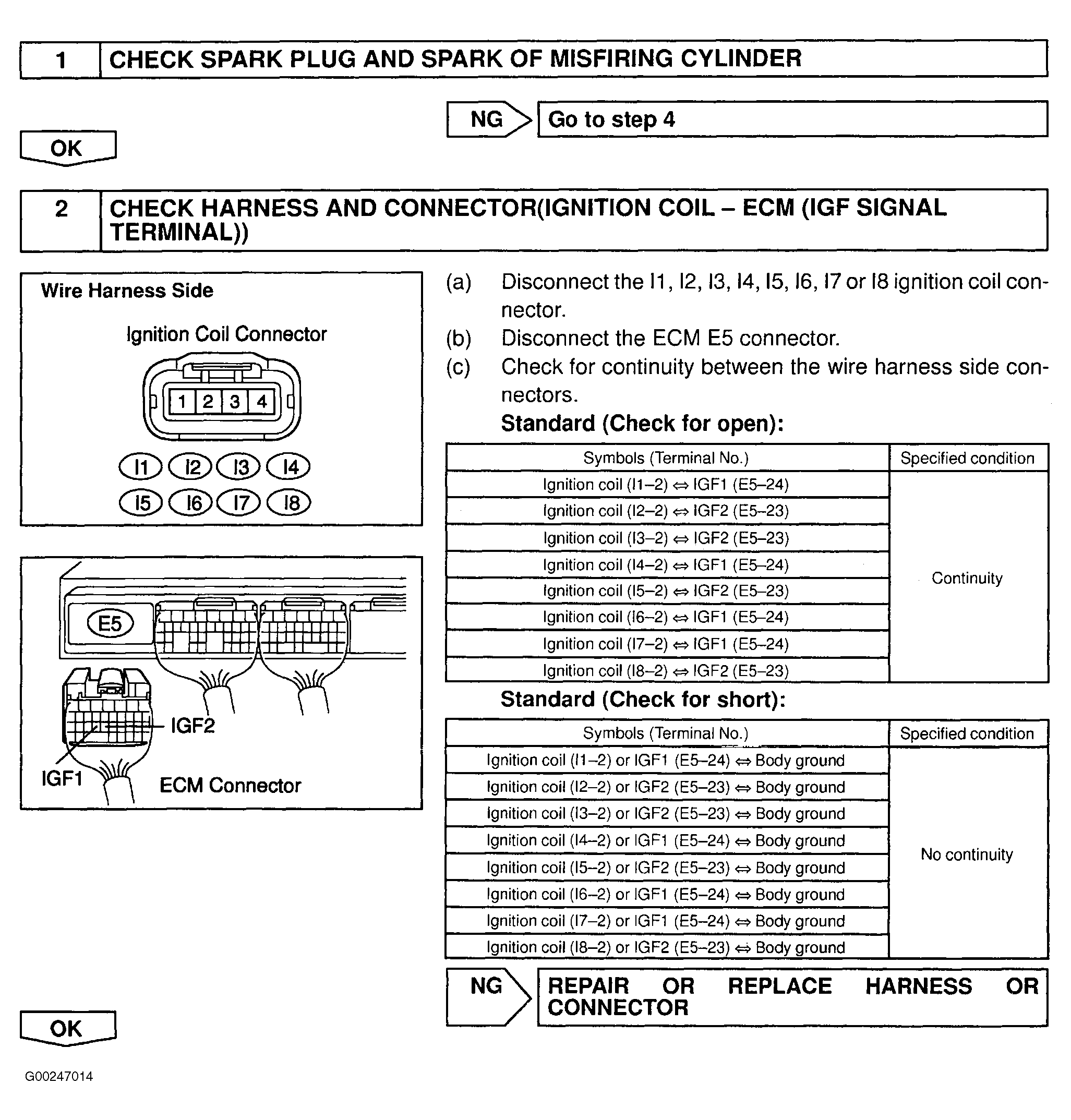

Fig 2: Diagnosis & Repair Of Igniter Coil Circuit (Step 1-2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

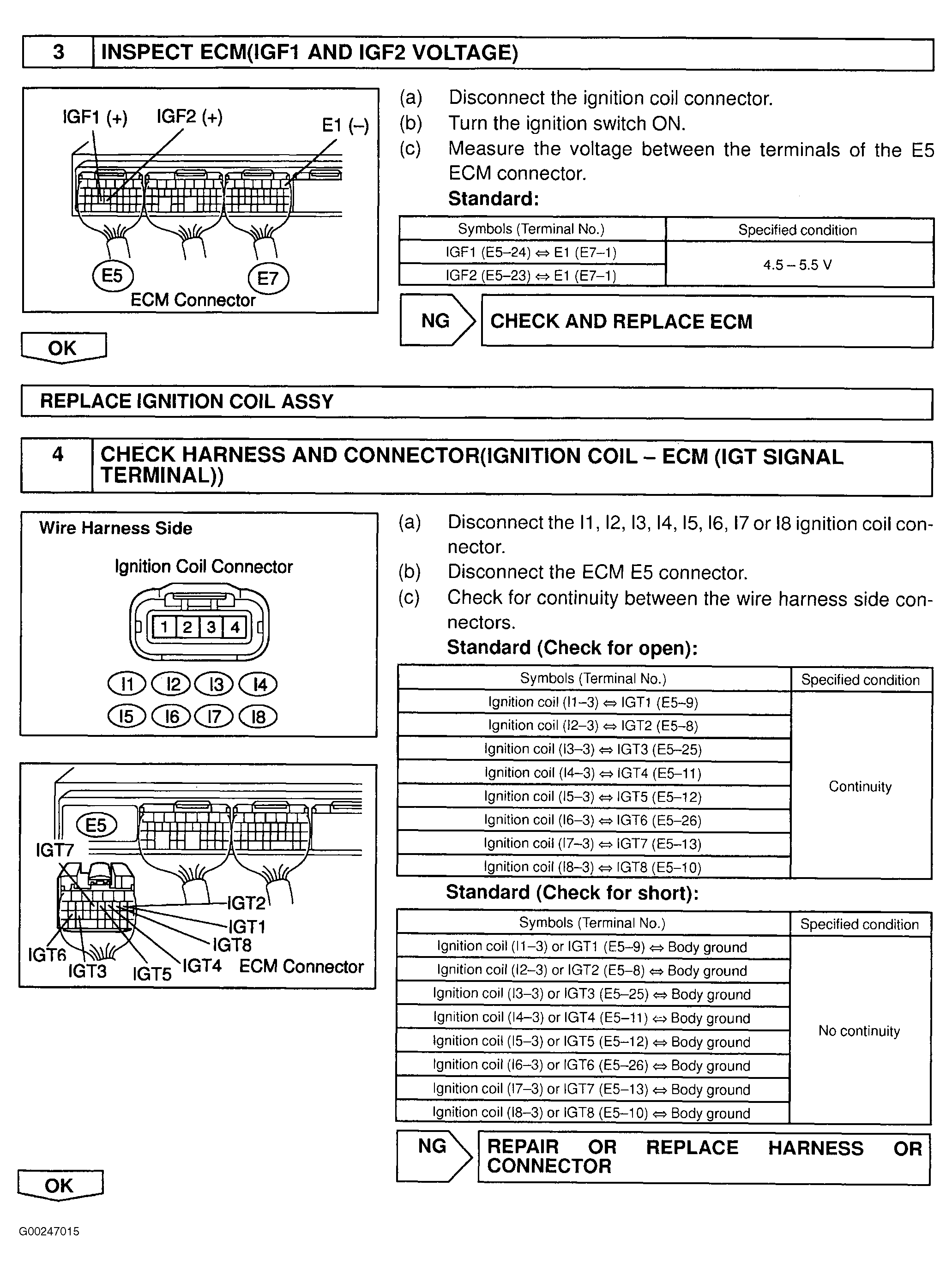

Fig 3: Diagnosis & Repair Of Igniter Coil Circuit (Step 3-4)

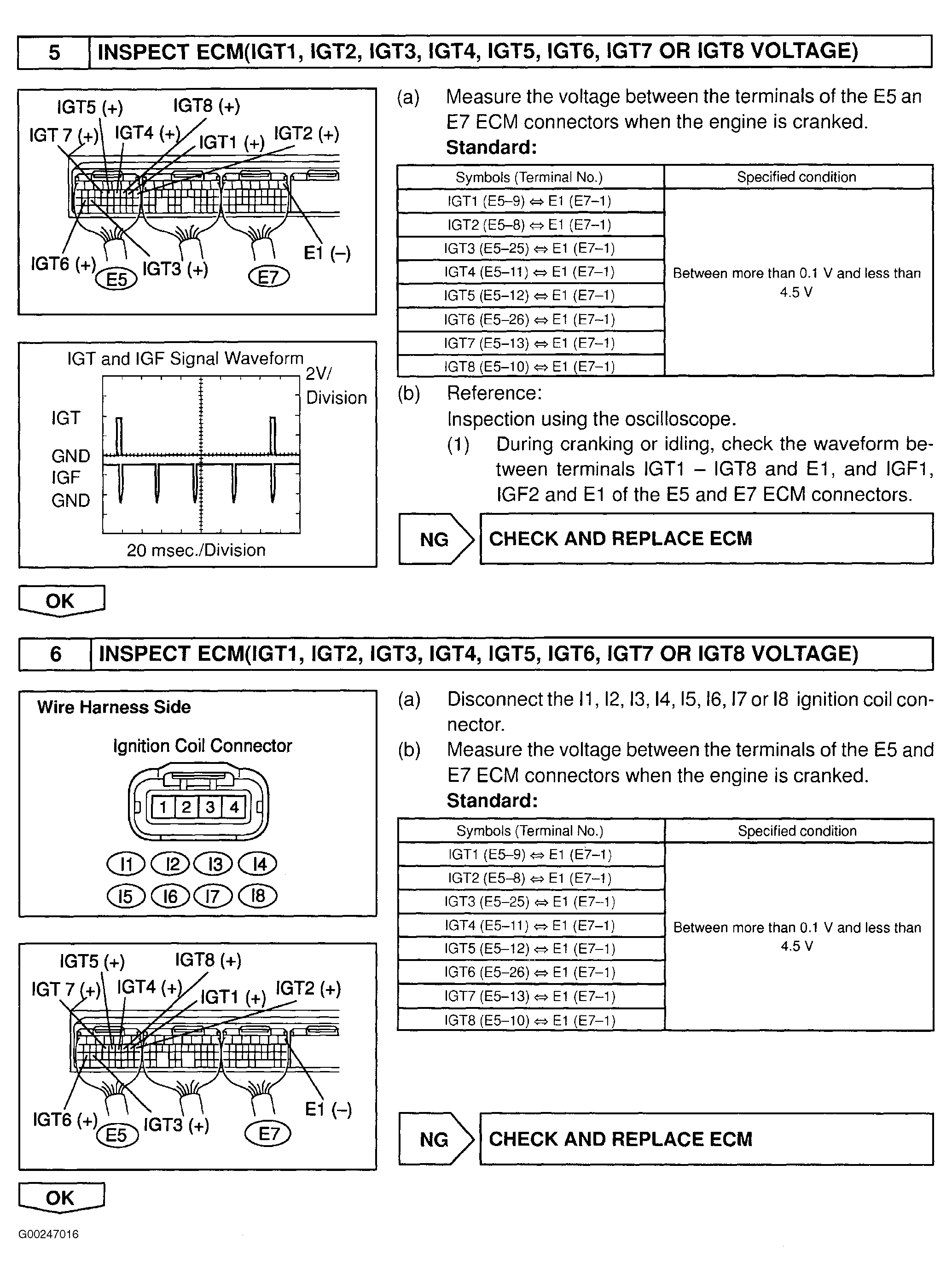

Fig 4: Diagnosis & Repair Of Igniter Coil Circuit (Step 5-6)

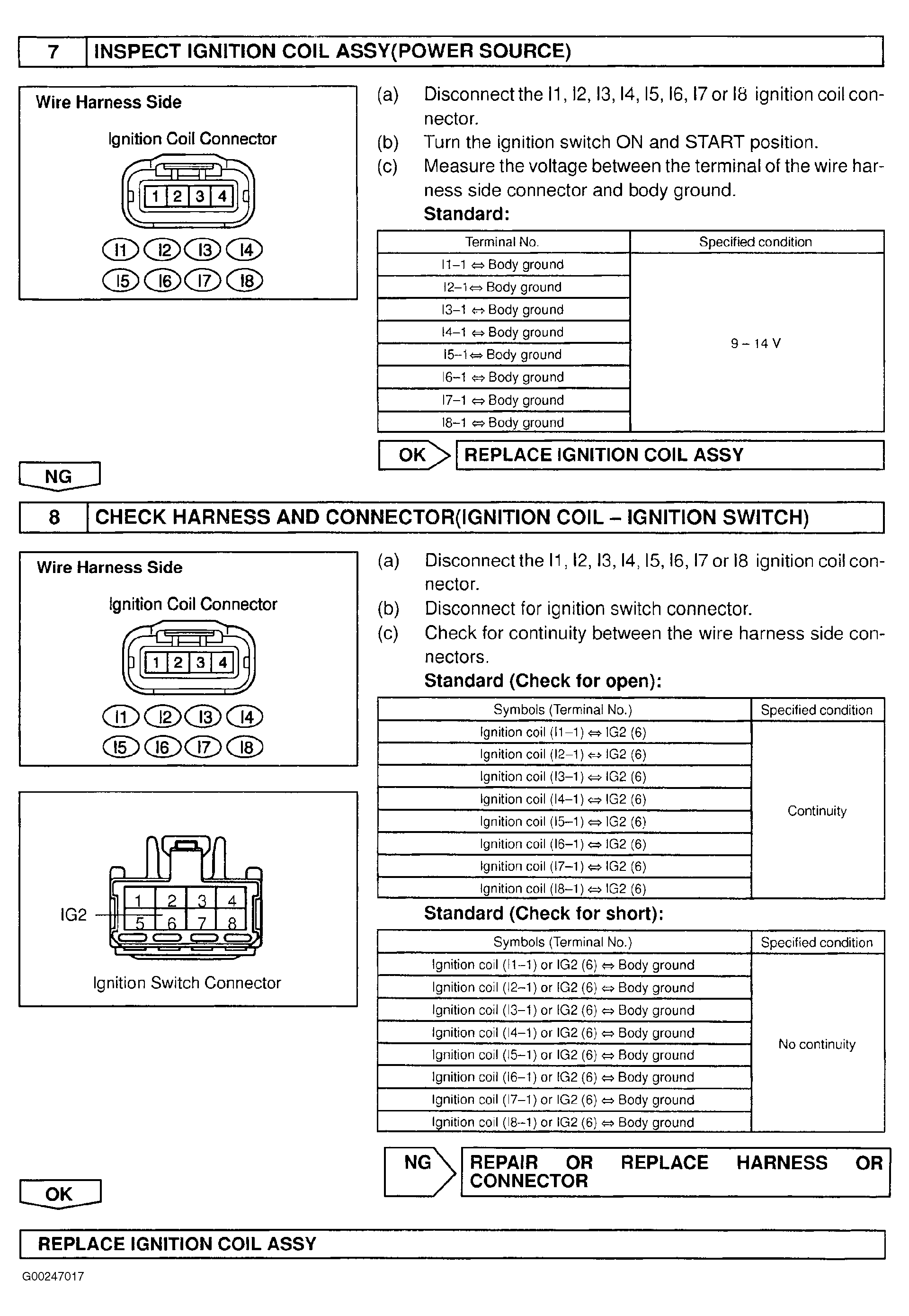

Fig 5: Diagnosis & Repair Of Igniter Coil Circuit (Step 7-8)
