WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

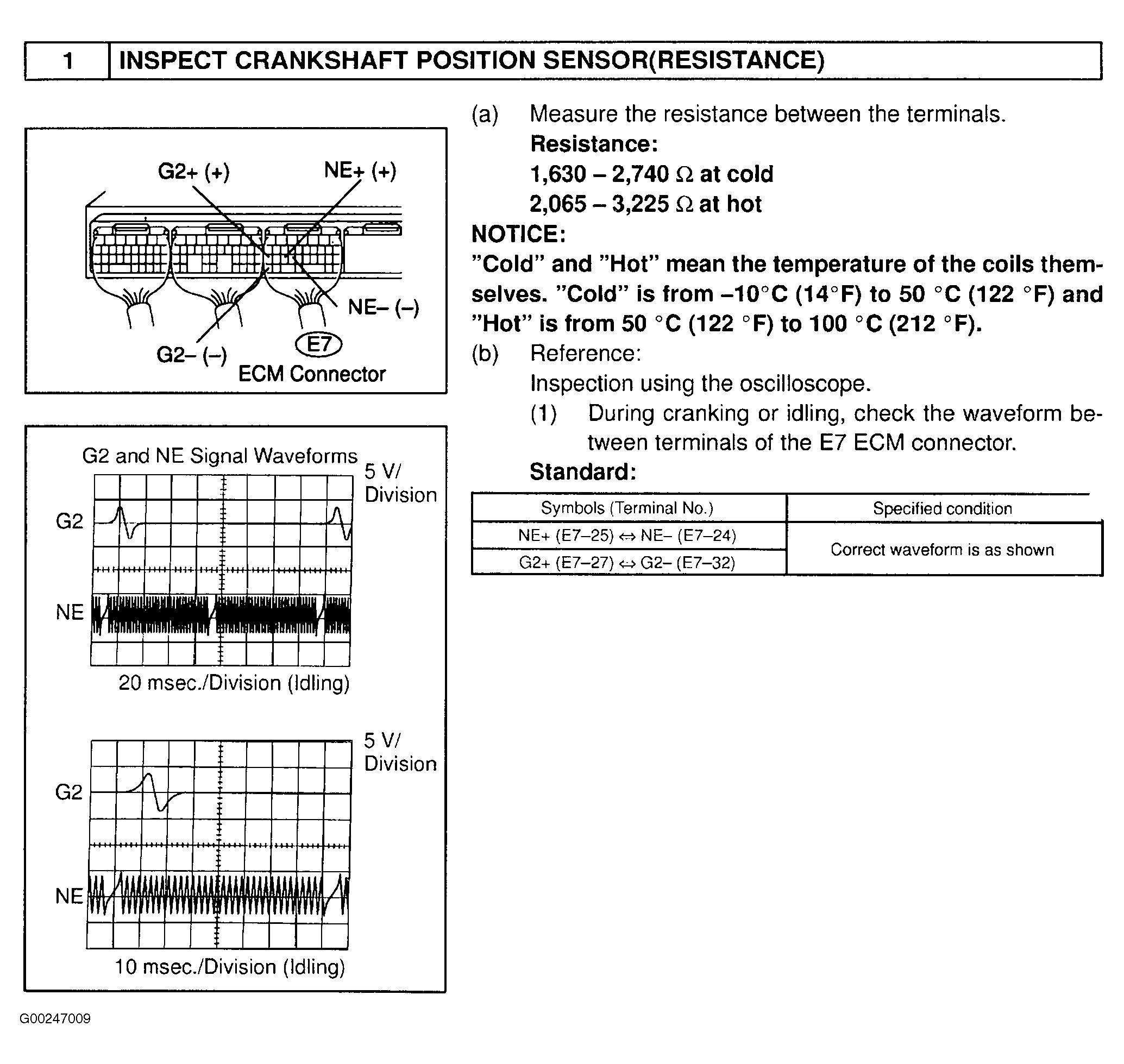

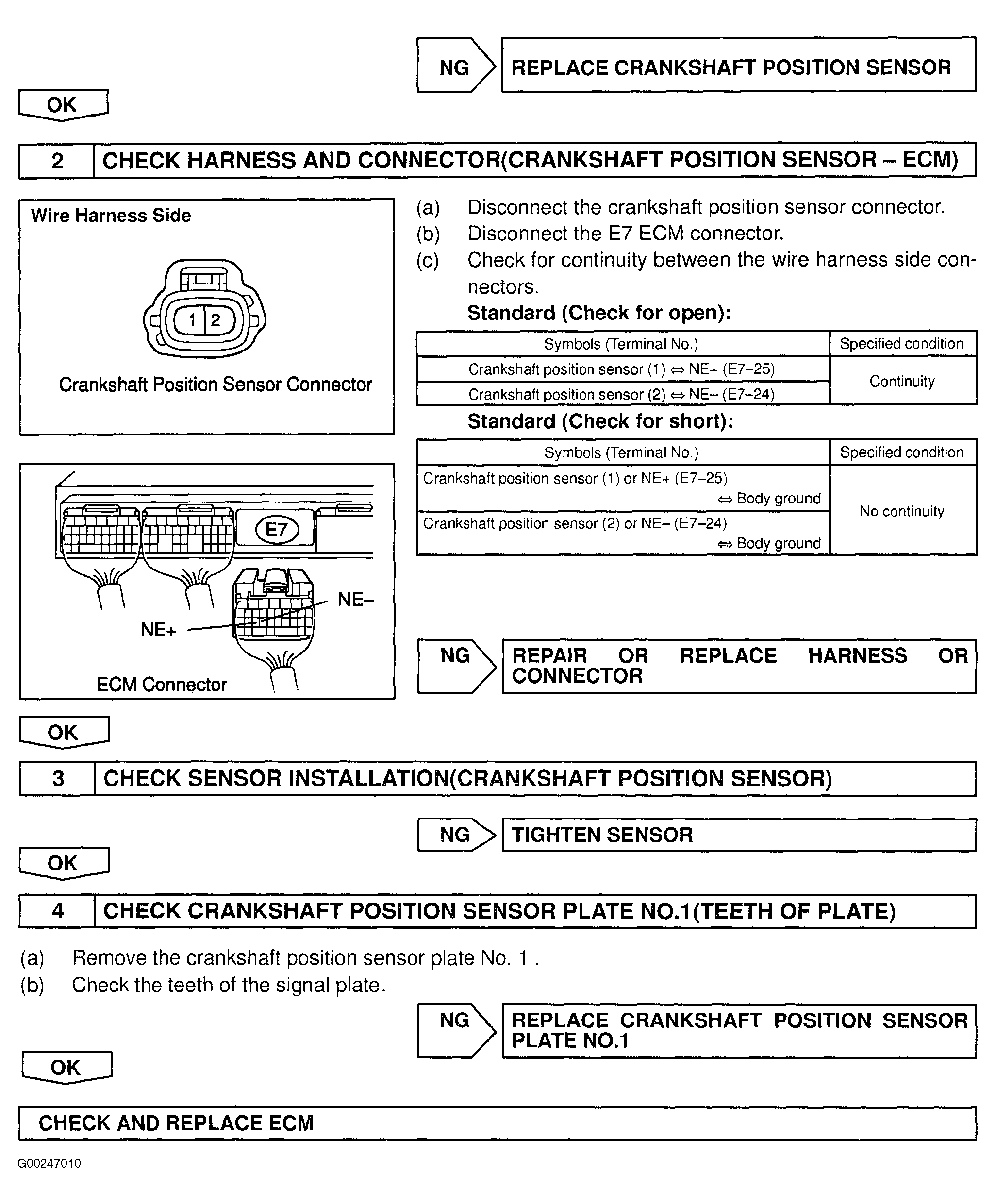

For wiring diagrams, see Fig 1. For diagnosis and repair, see Fig 2 and Fig 3
.

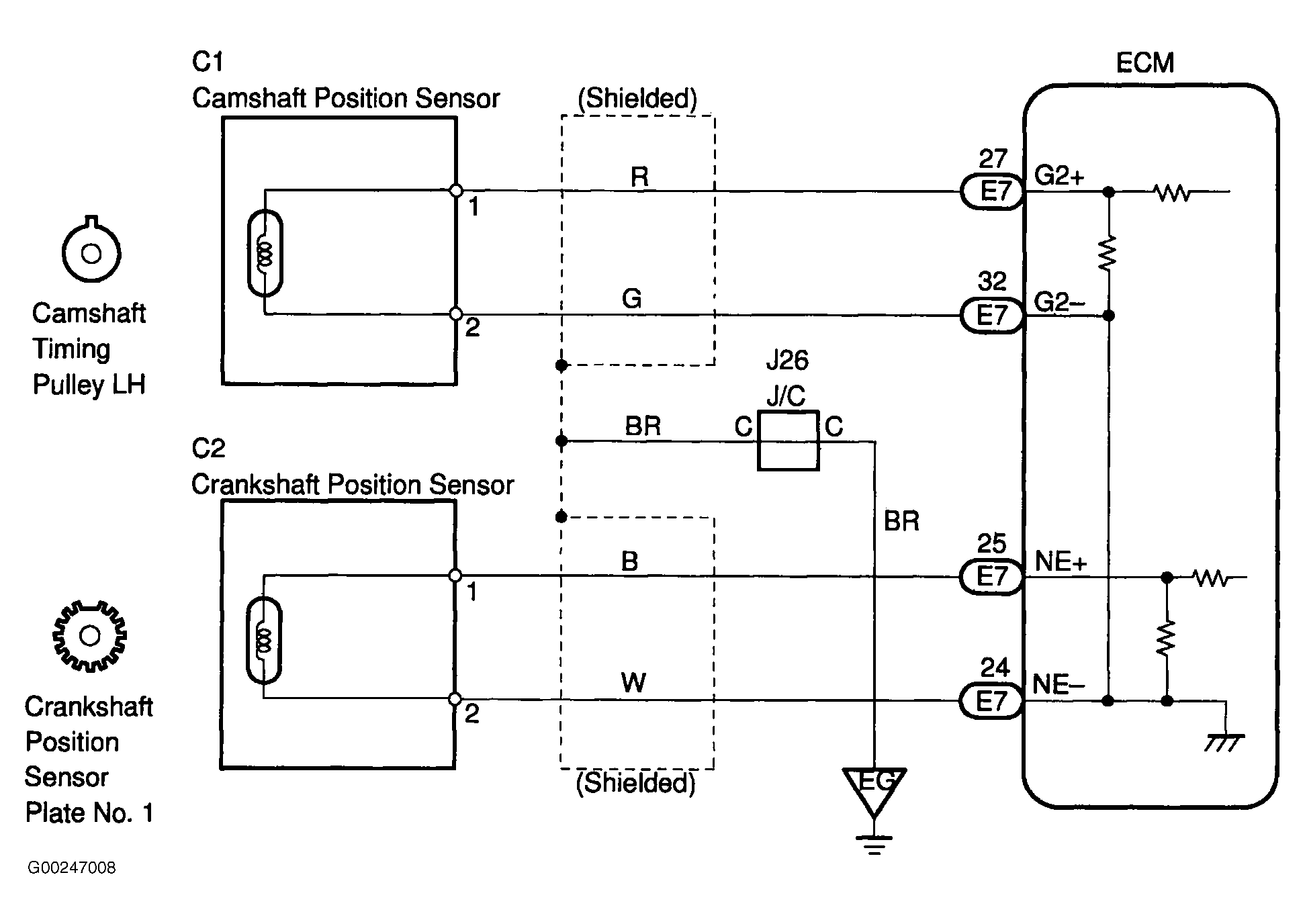

Fig 1: Crankshaft Position Sensor Circuit Wiring Diagrams
