Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 10 .

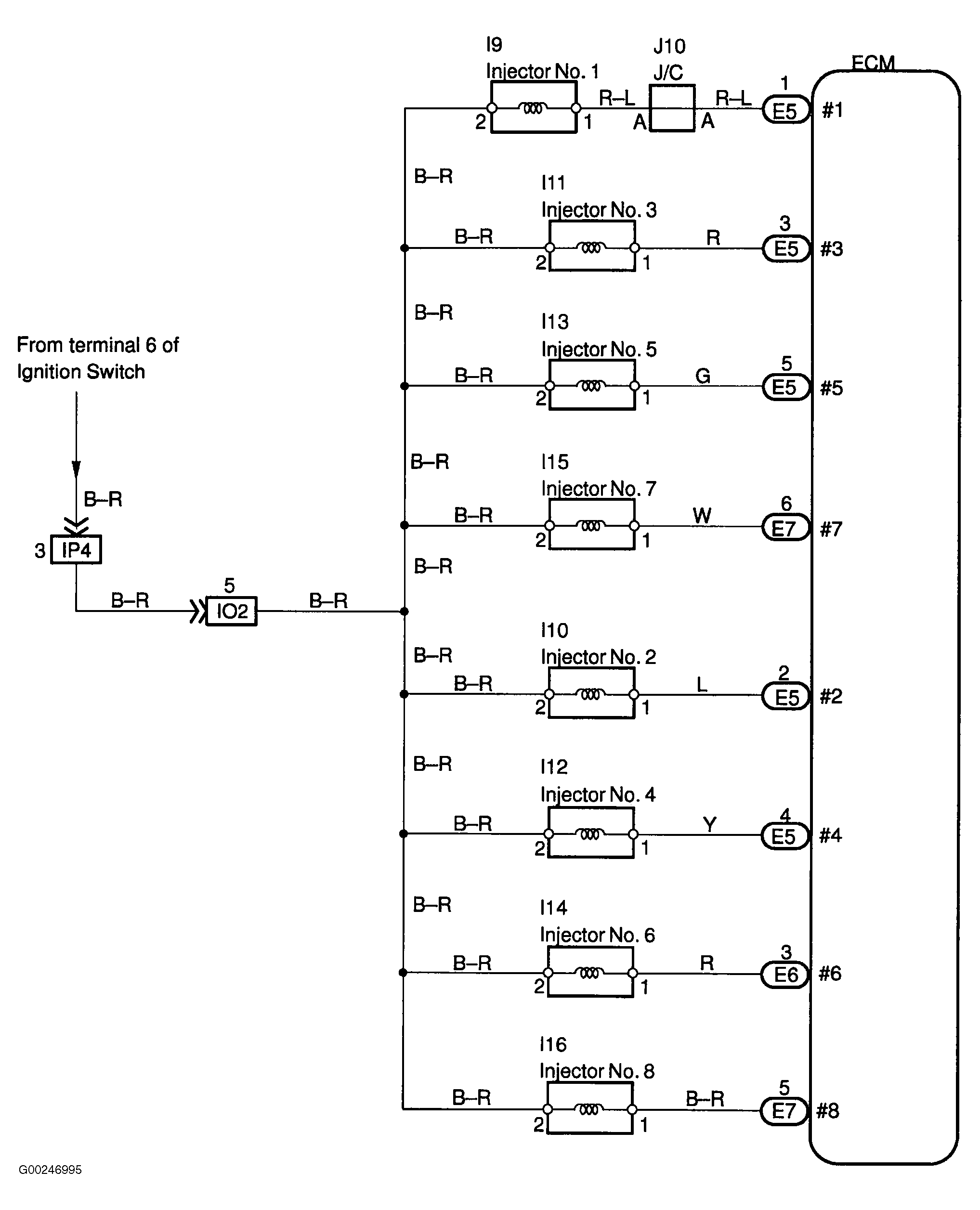

Fig 1: Injector System Wiring Diagram

G00246995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

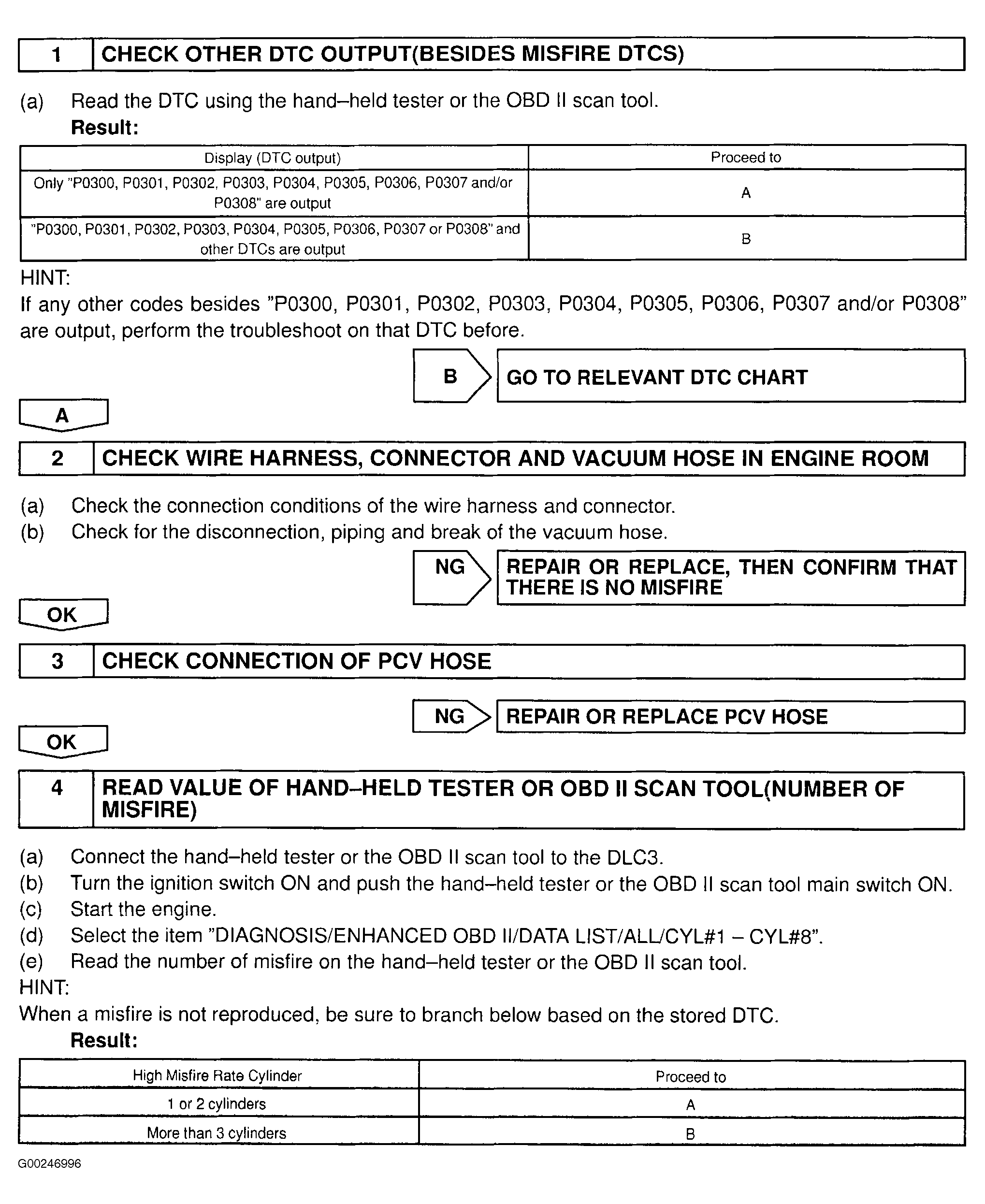

Fig 2: Diagnosis & Repair Of Cylinder Misfire Detected (Step 1-4)

G00246996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

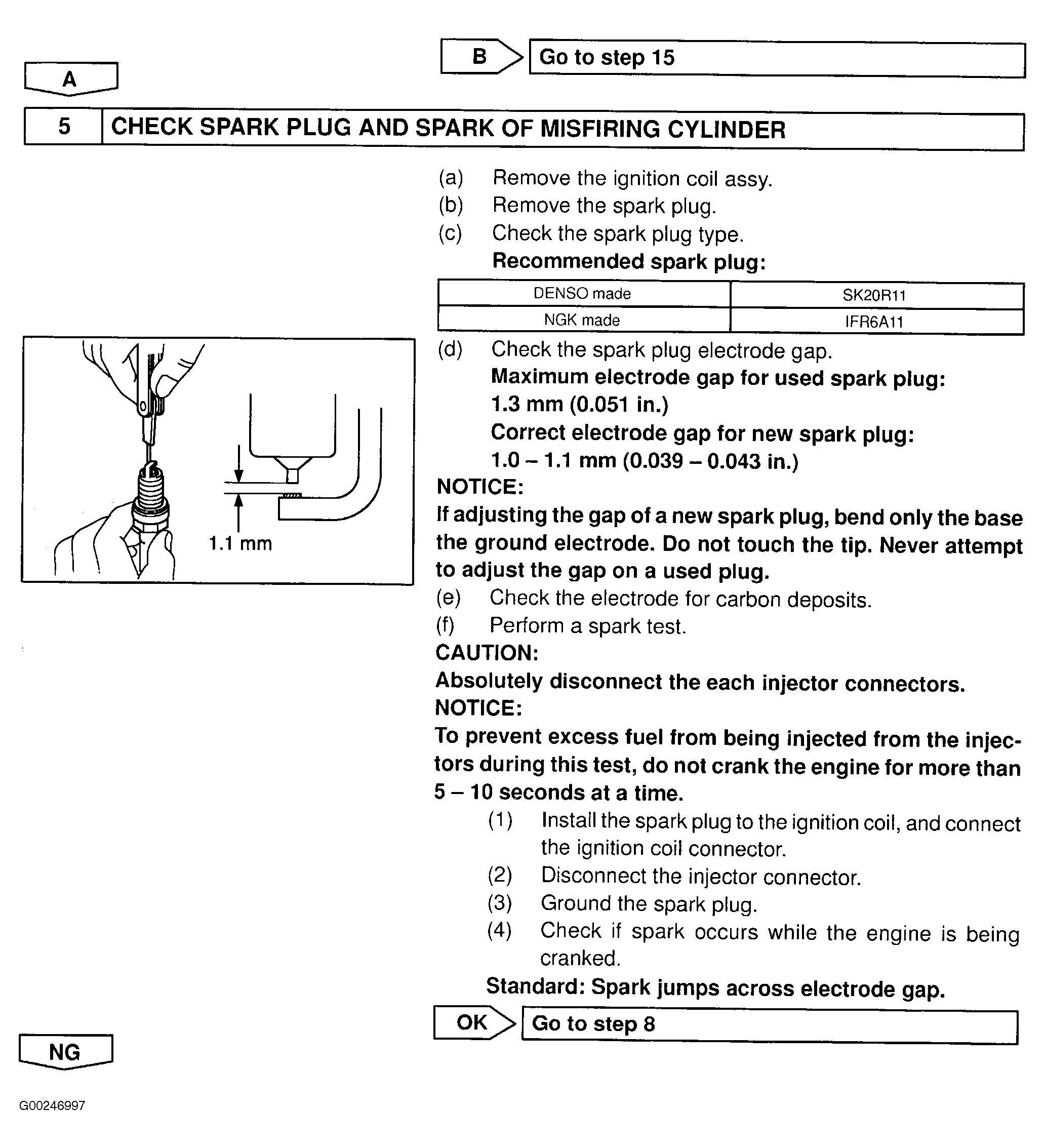

Fig 3: Diagnosis & Repair Of Cylinder Misfire Detected (Step 5)

G00246997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

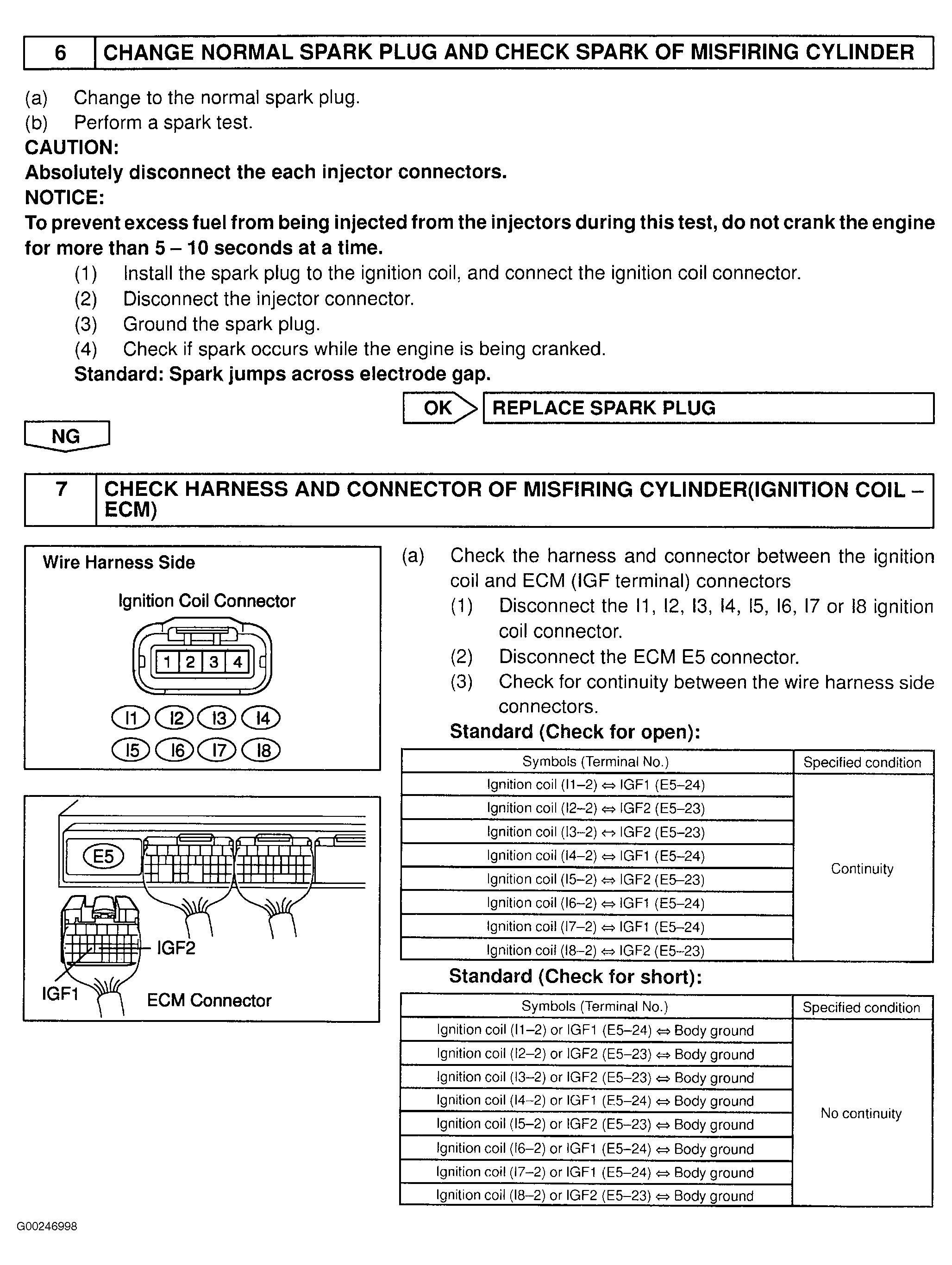

Fig 4: Diagnosis & Repair Of Cylinder Misfire Detected (Step 6-7)

G00246998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

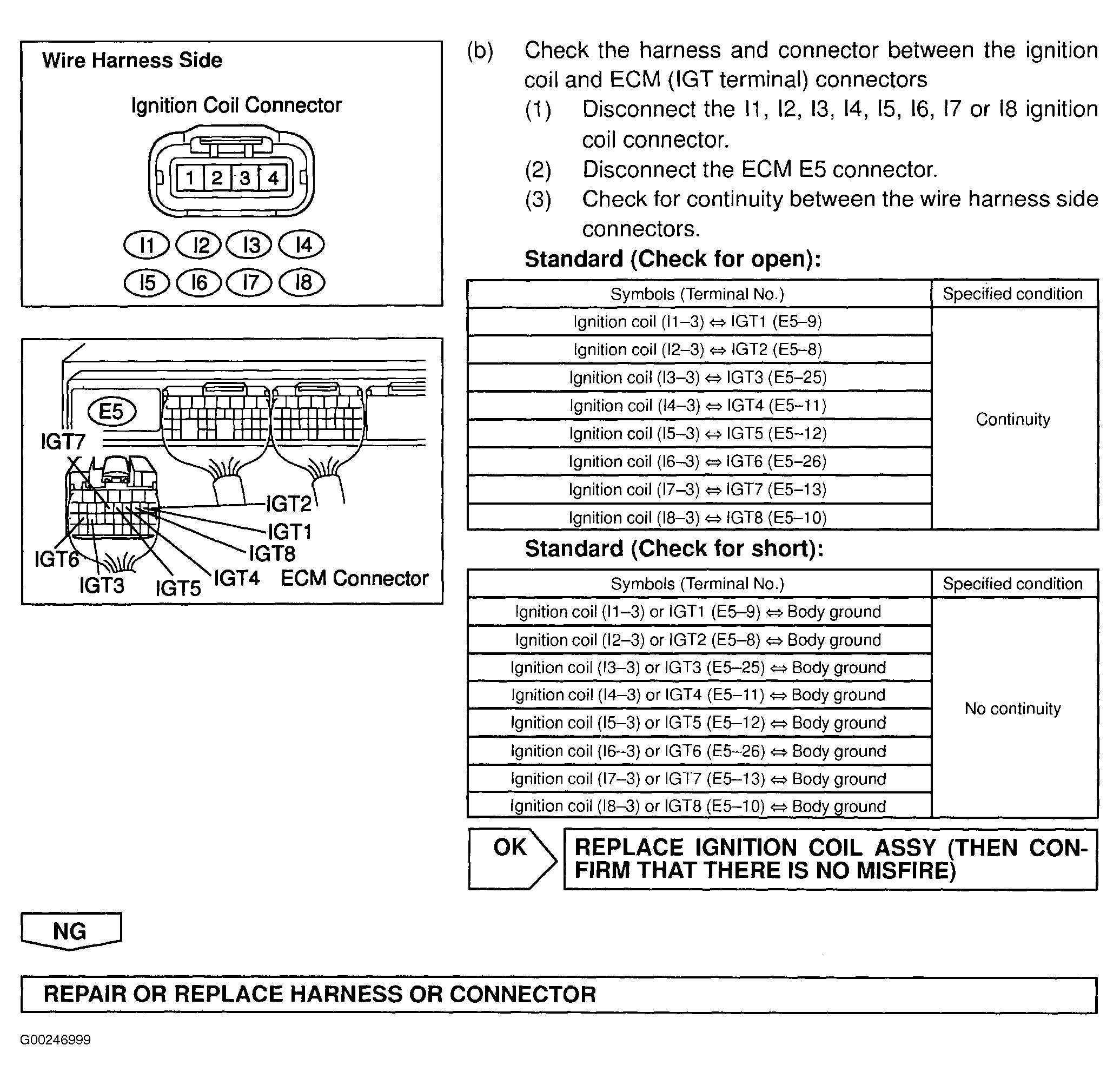

Fig 5: Diagnosis & Repair Of Cylinder Misfire Detected (Step 7 Continued)

G00246999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

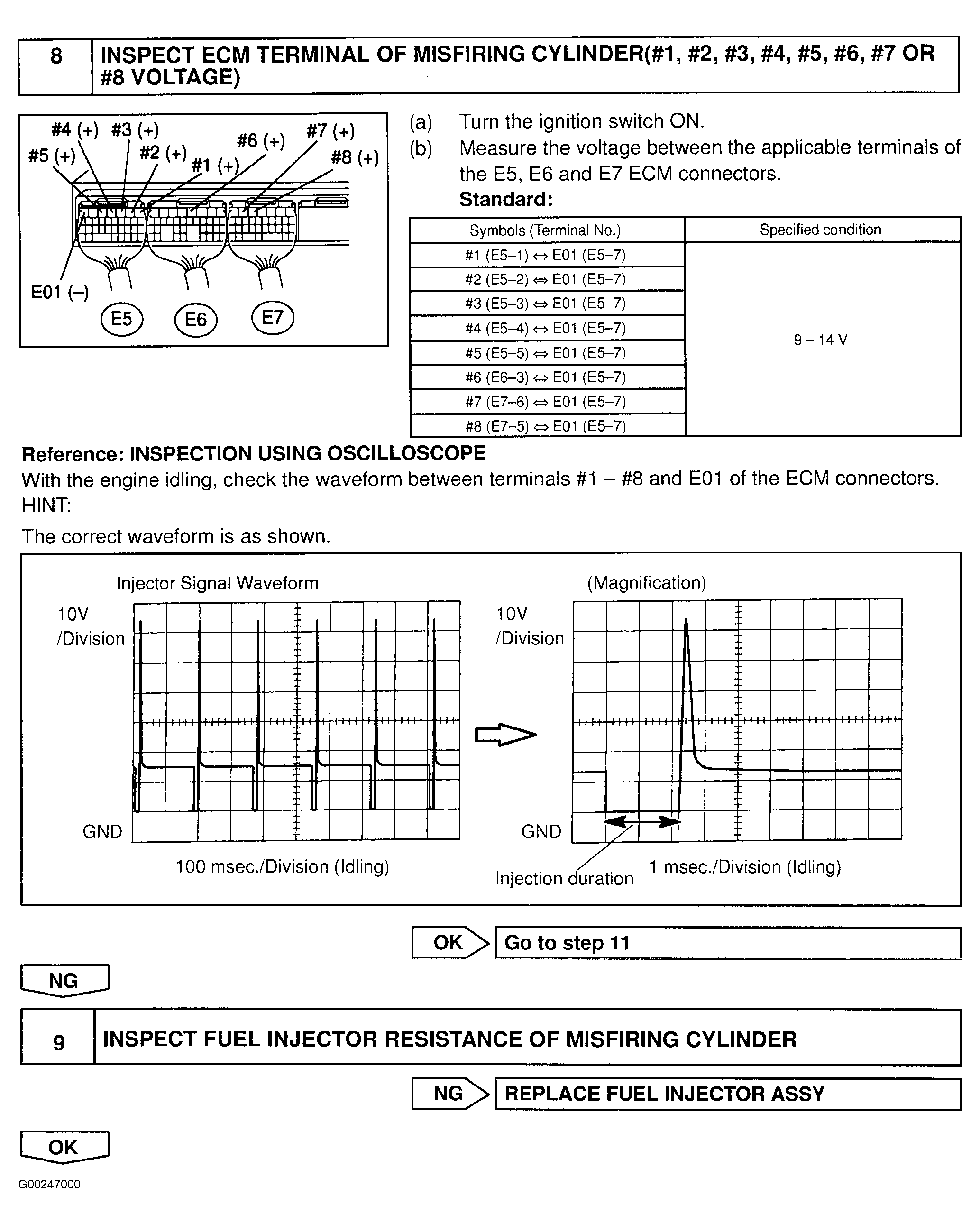

Fig 6: Diagnosis & Repair Of Cylinder Misfire Detected (Step 8-9)

G00247000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

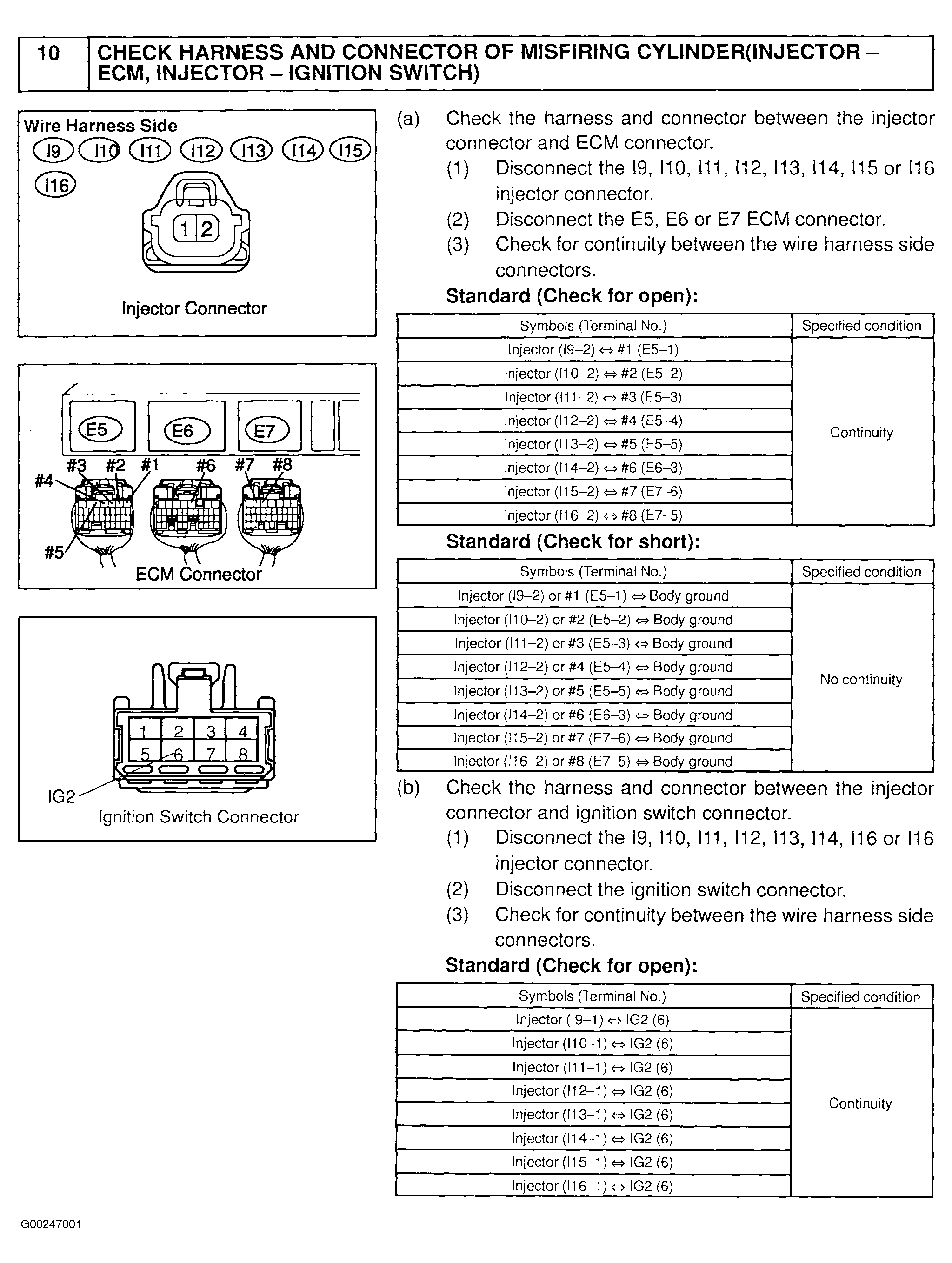

Fig 7: Diagnosis & Repair Of Cylinder Misfire Detected (Step 10)

G00247001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

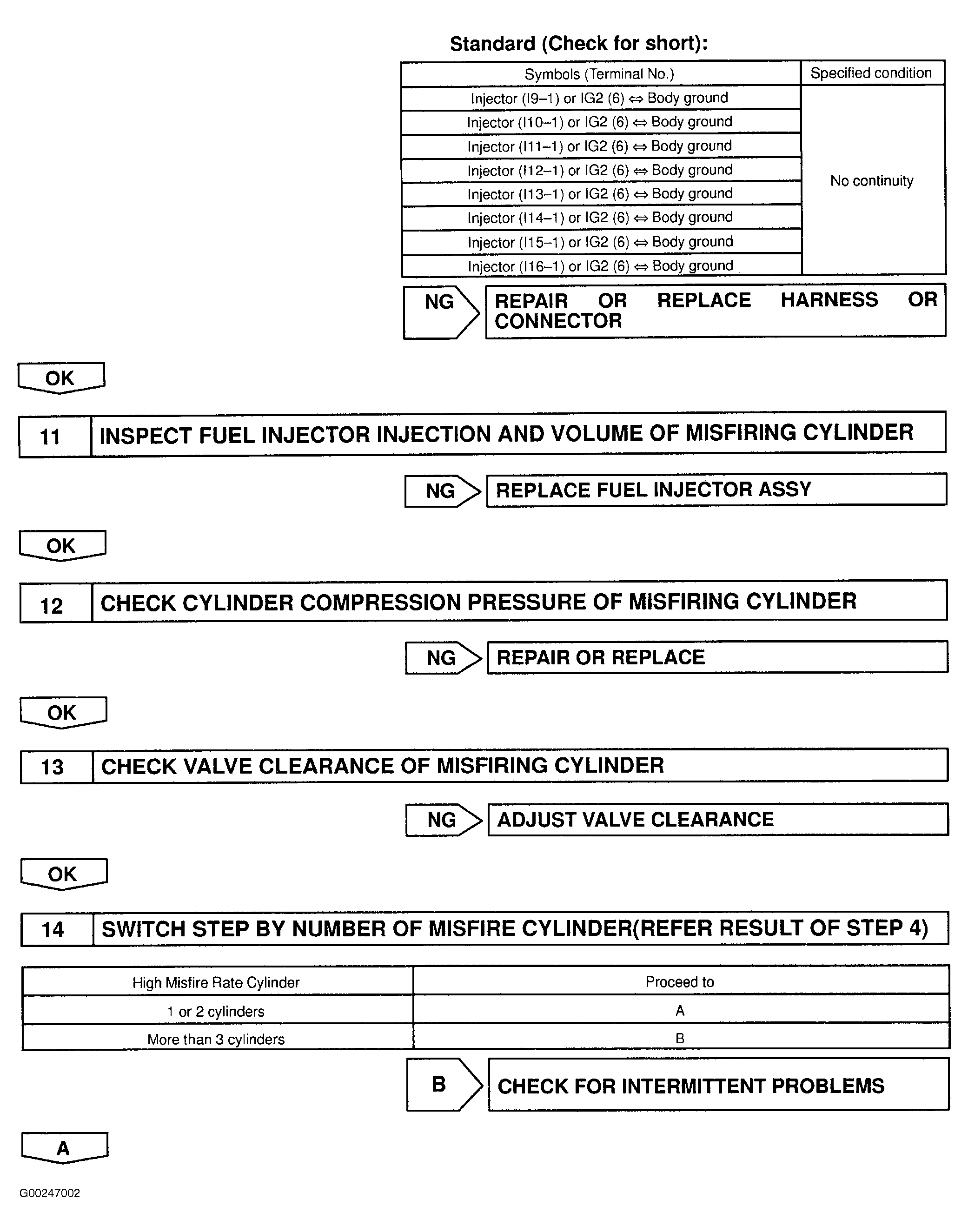

Fig 8: Diagnosis & Repair Of Cylinder Misfire Detected (Step 11-14)

G00247002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

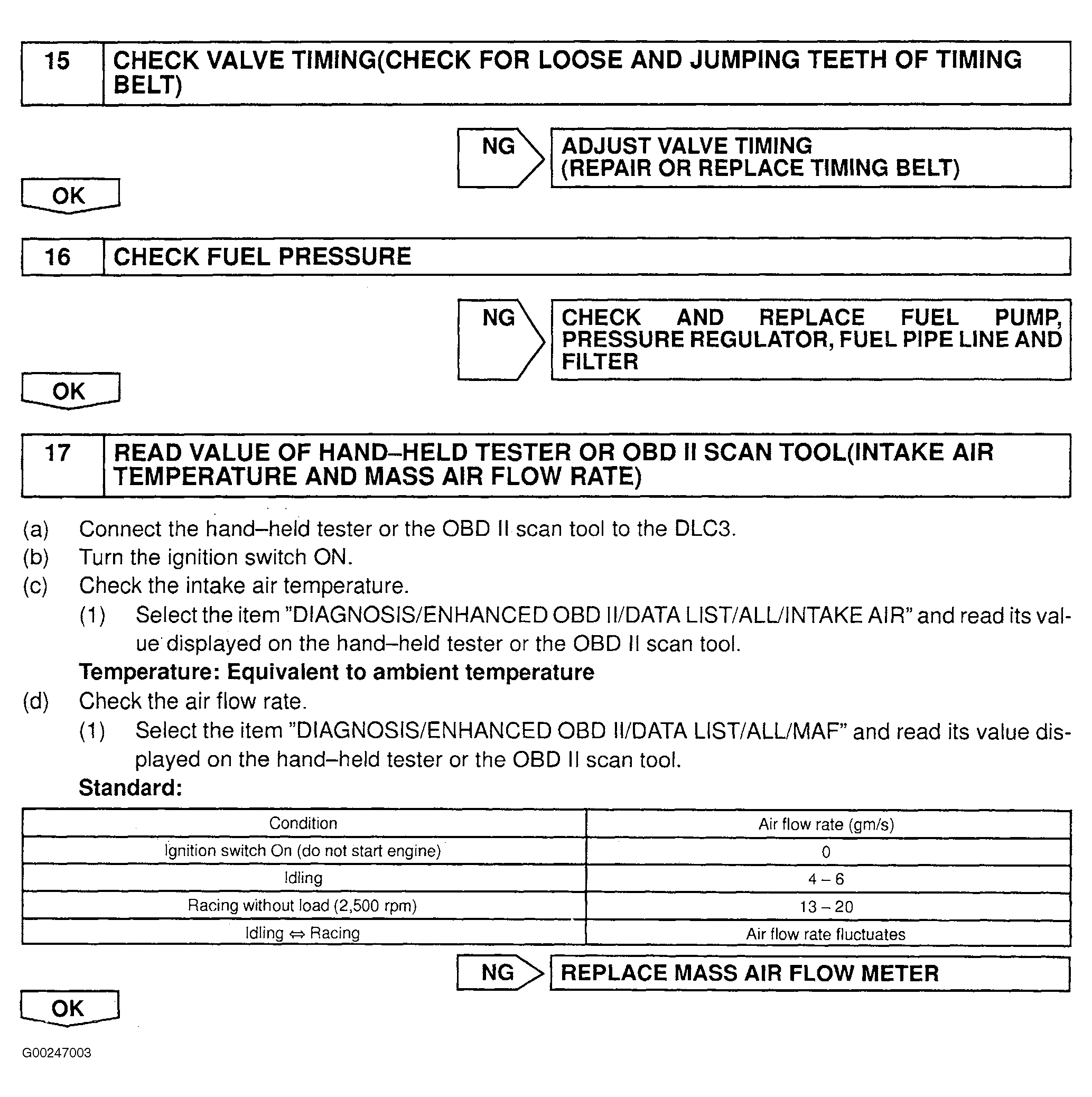

Fig 9: Diagnosis & Repair Of Cylinder Misfire Detected (Step 15-17)

G00247003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

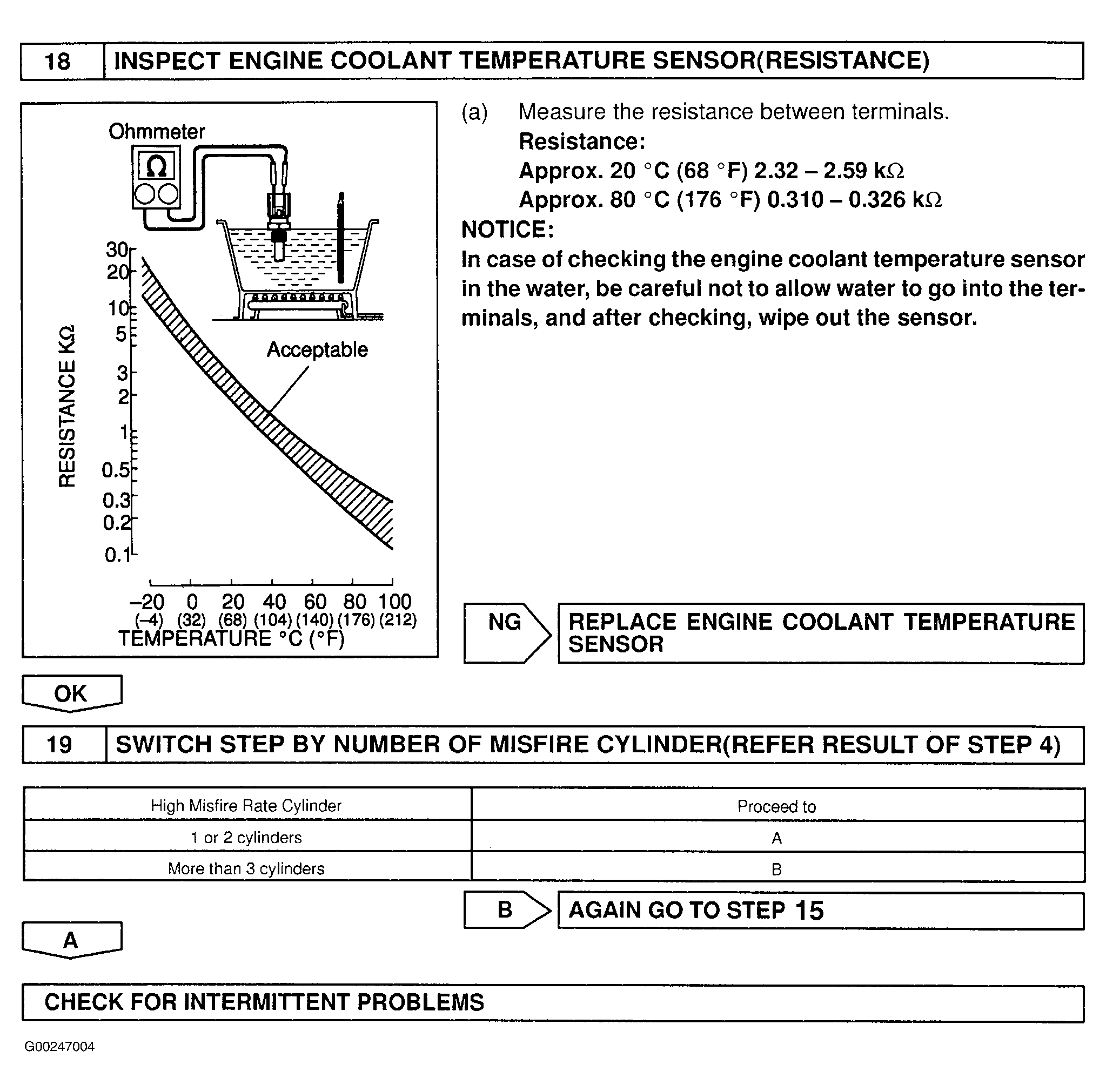

Fig 10: Diagnosis & Repair Of Cylinder Misfire Detected (Step 18-19)

G00247004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
