Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1-Fig 6 .

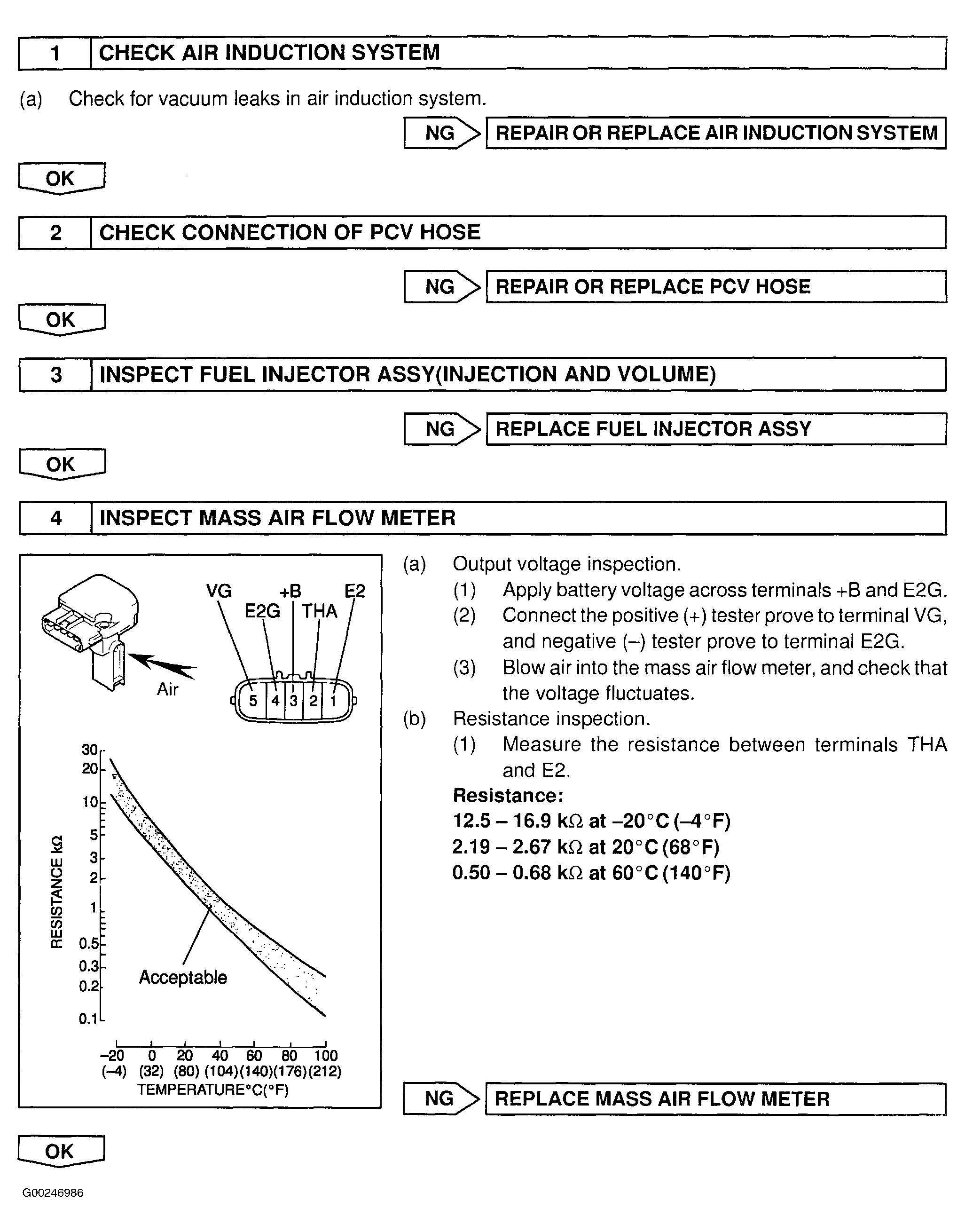

Fig 1: Diagnosis & Repair System Too Lean Or Rich (Step 1-4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

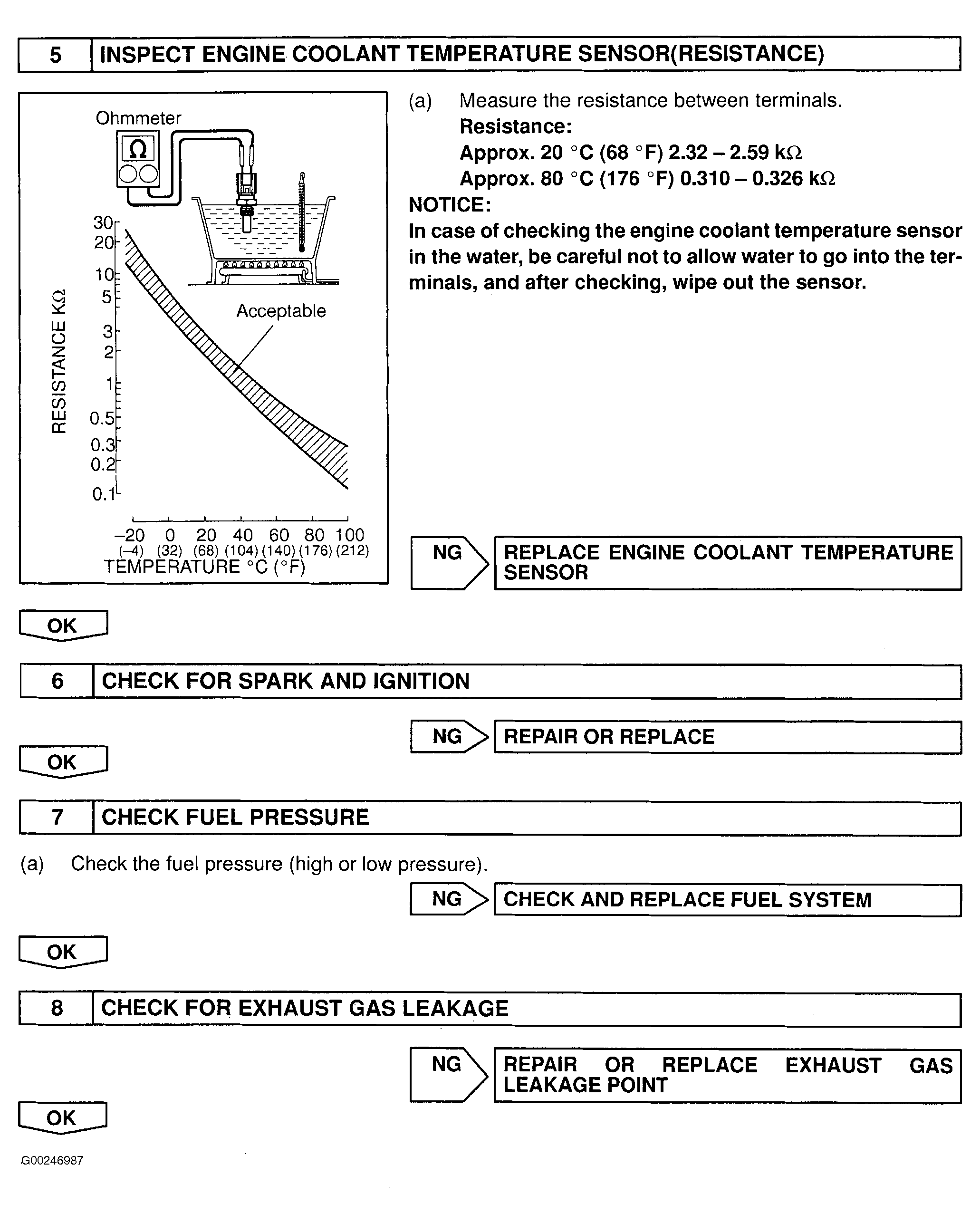

Fig 2: Diagnosis & Repair Of System Too Lean Or Rich (Step 5-8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

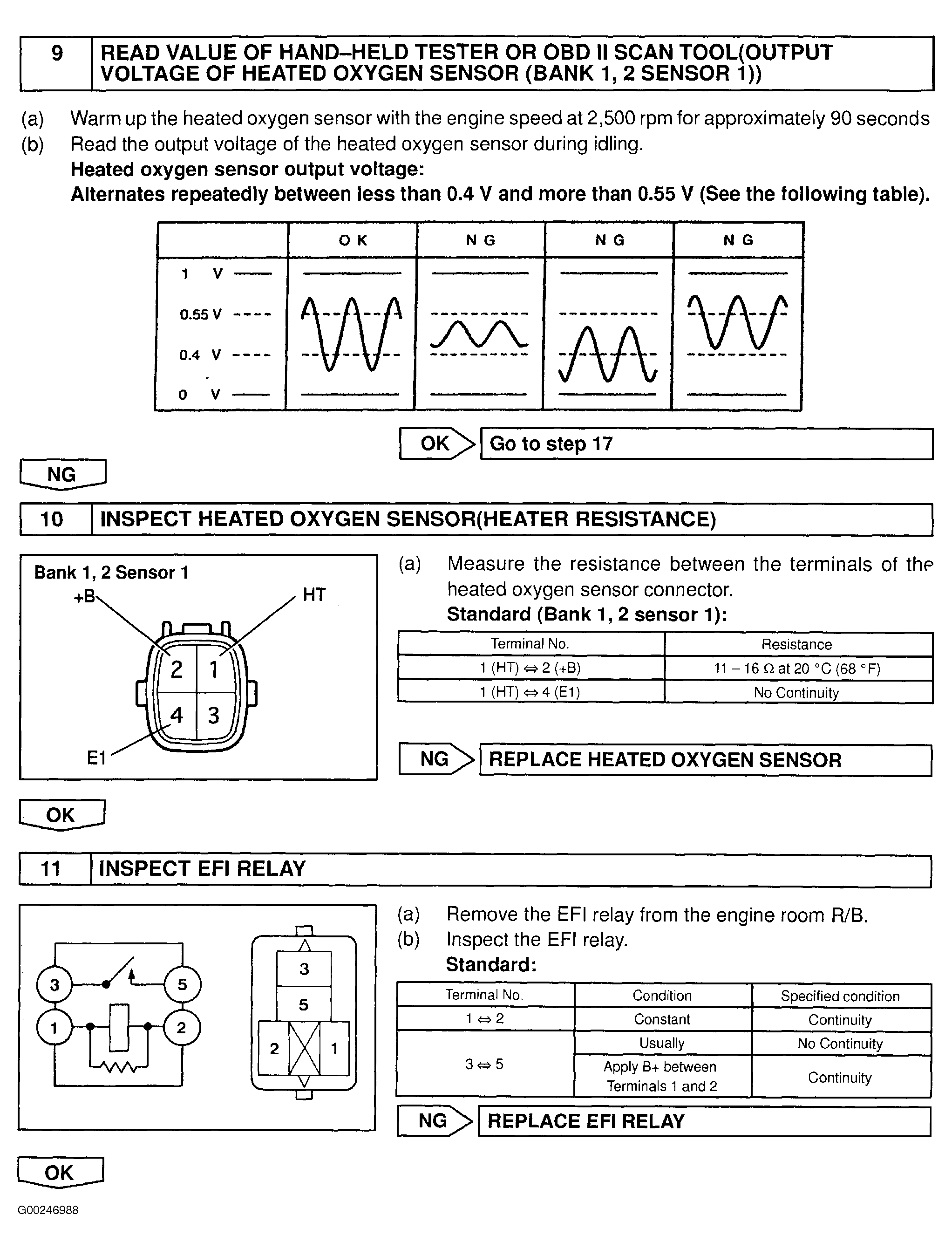

Fig 3: Diagnosis & Repair Of System Too Lean Or Rich (Step 9-11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

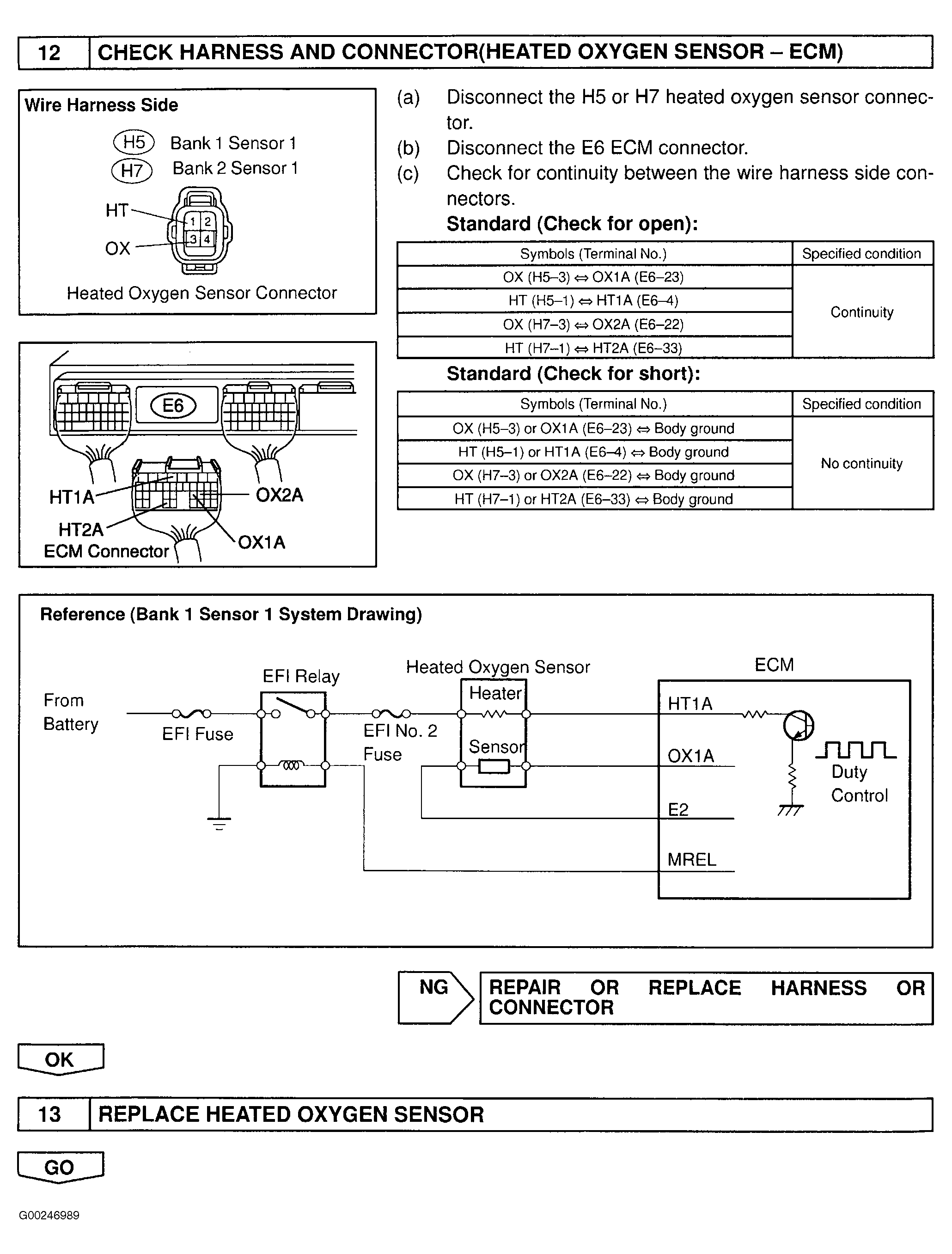

Fig 4: Diagnosis & Repair Of System Too Lean Or Rich (Step 12-13)

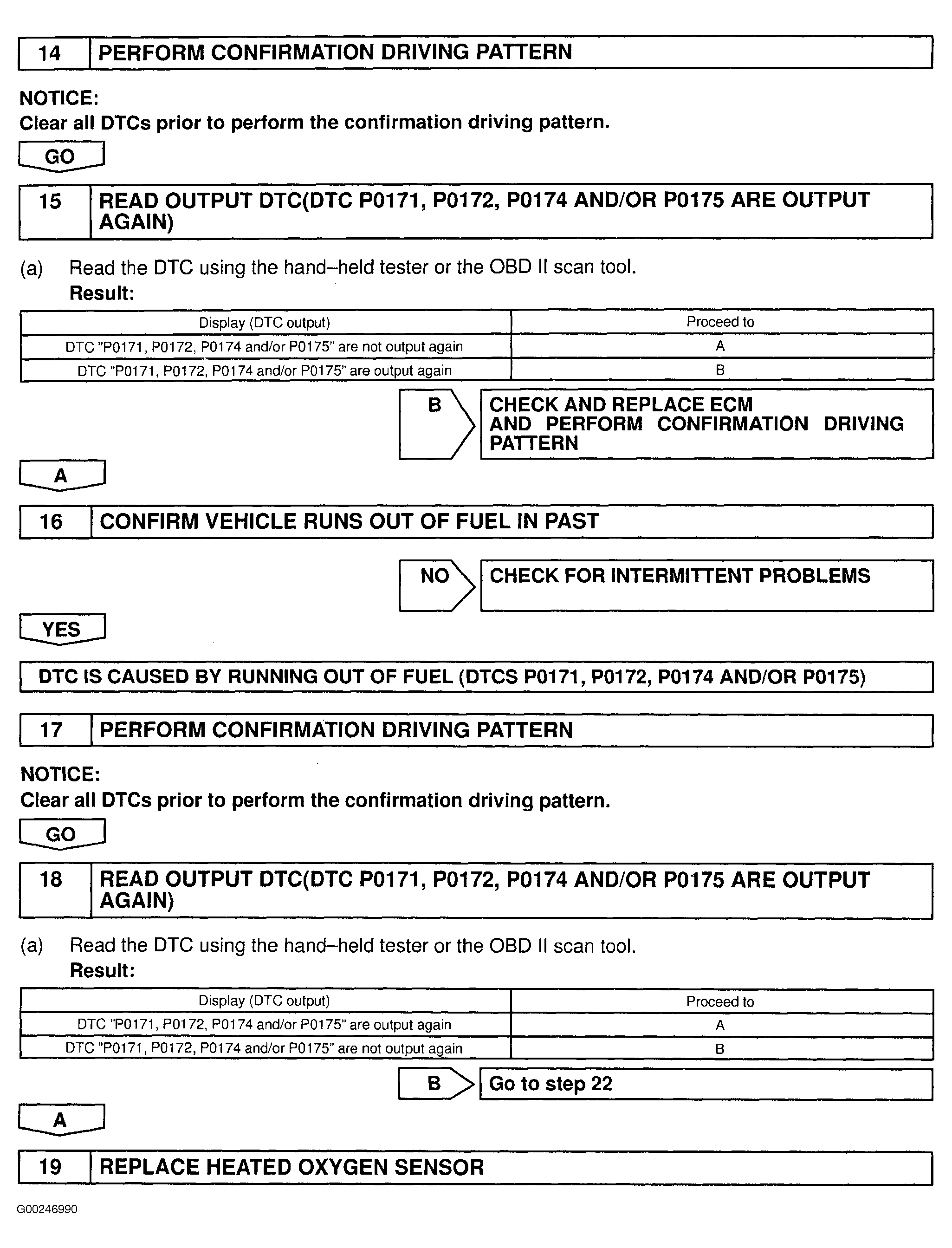

Fig 5: Diagnosis & Repair Of System Too Lean Or Rich (Step 14-19)

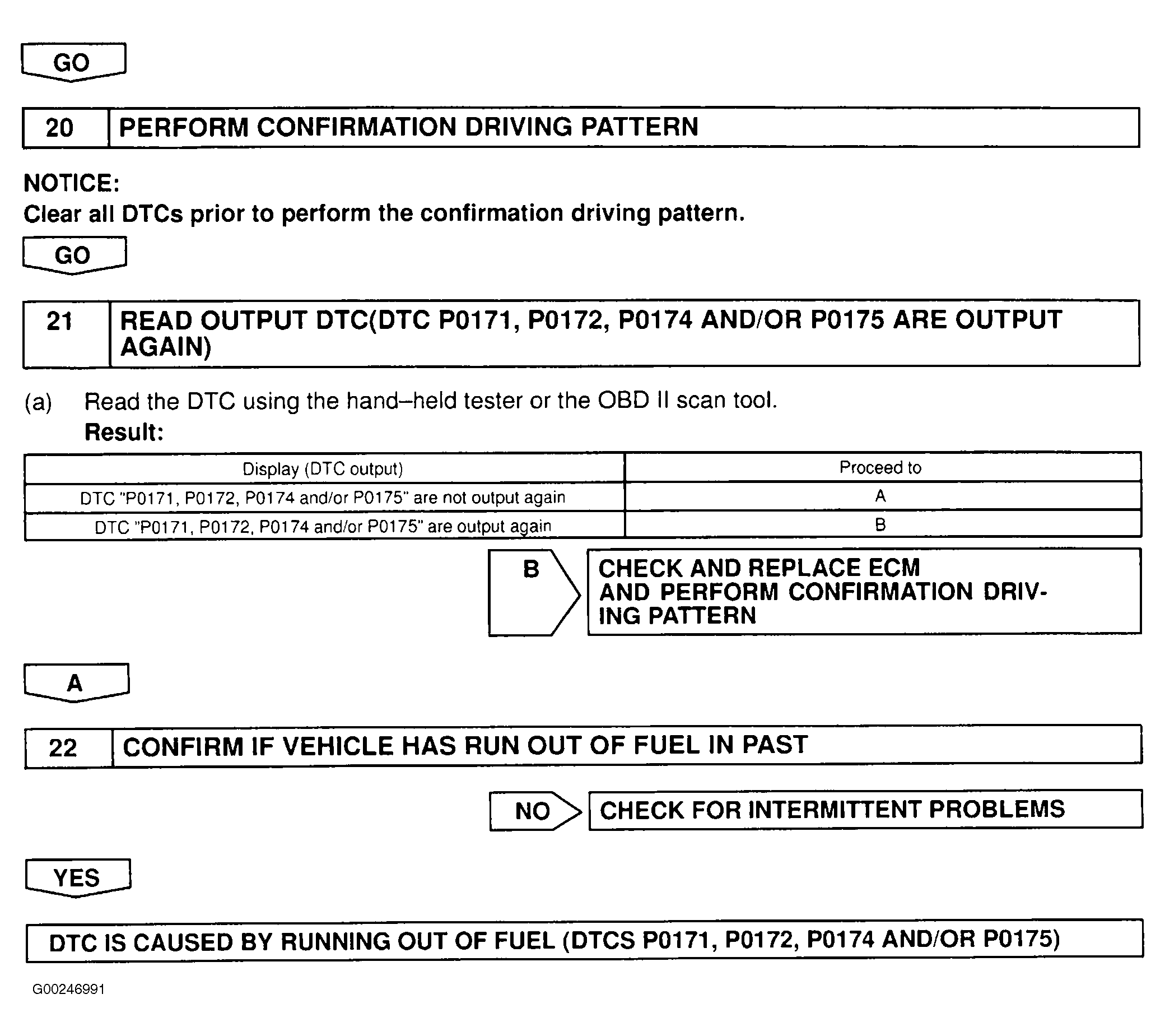

Fig 6: Diagnosis & Repair Of System Too Lean Or Rich (Step 20-22)
