Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1-Fig 3 .

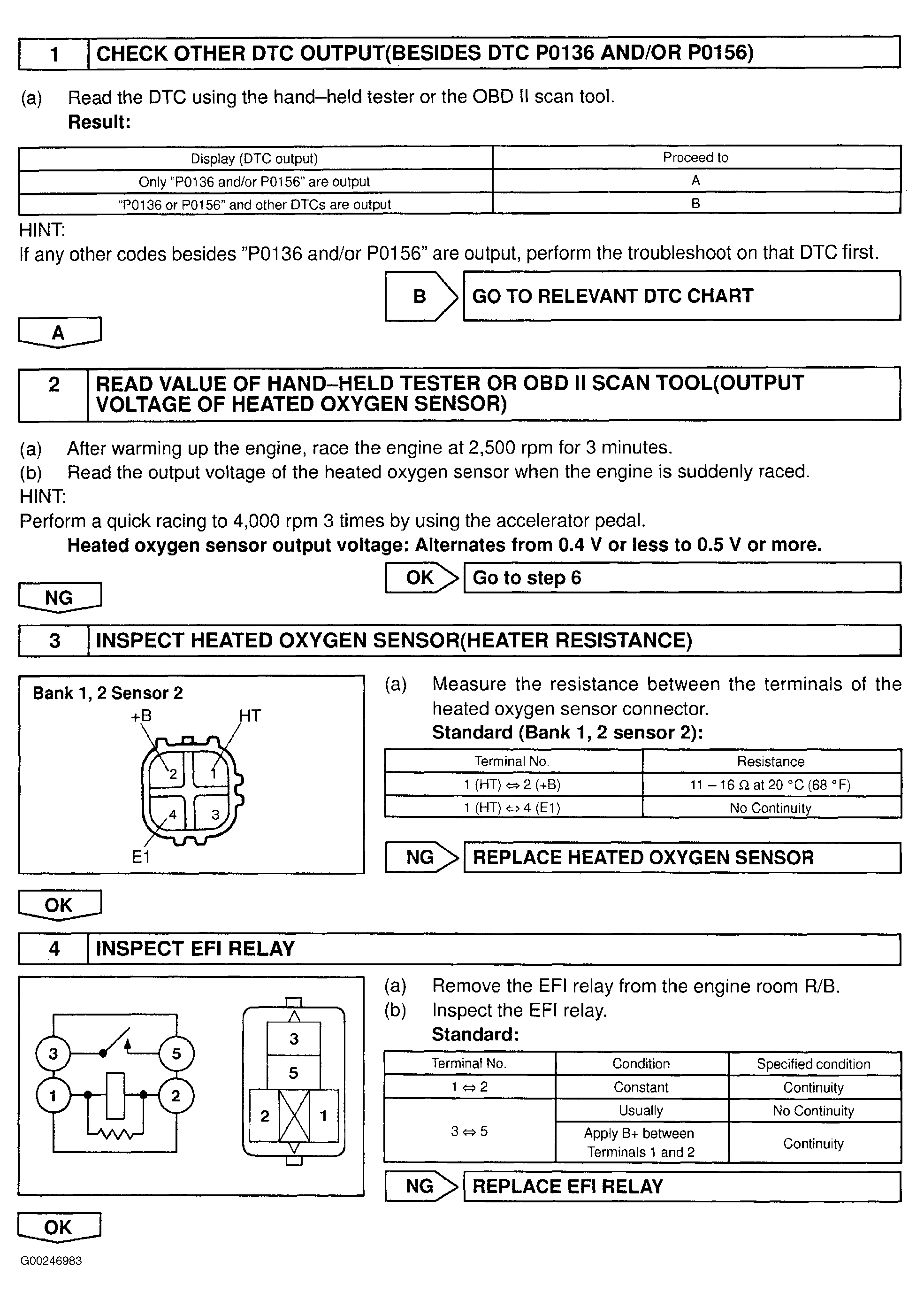

Fig 1: Diagnosis & Repair Of Oxygen Sensor Circuit Malfunction Sensor 2 (Step 1-4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

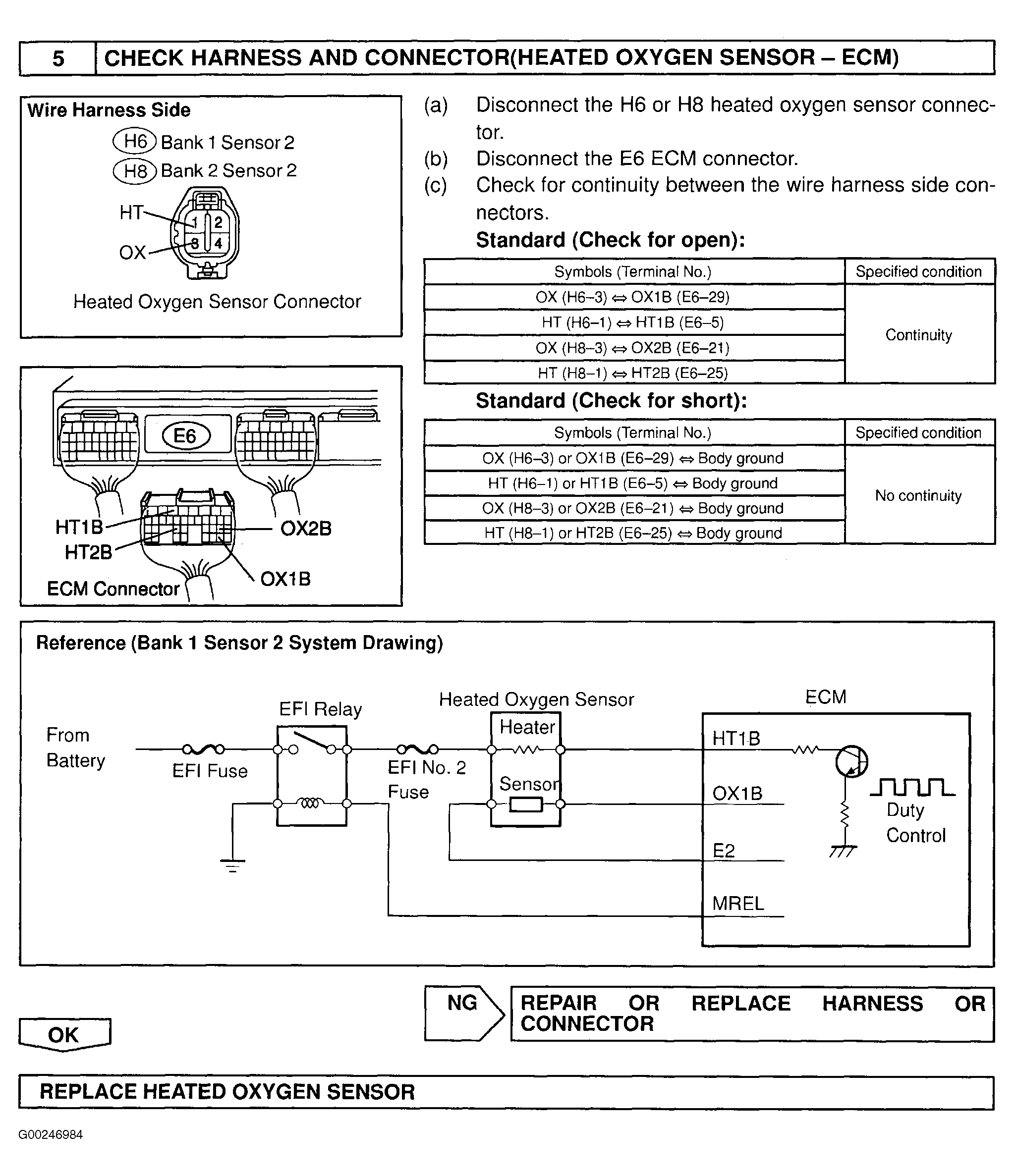

Fig 2: Diagnosis & Repair Of Oxygen Sensor Circuit Malfunction Sensor 2 (Step 5)

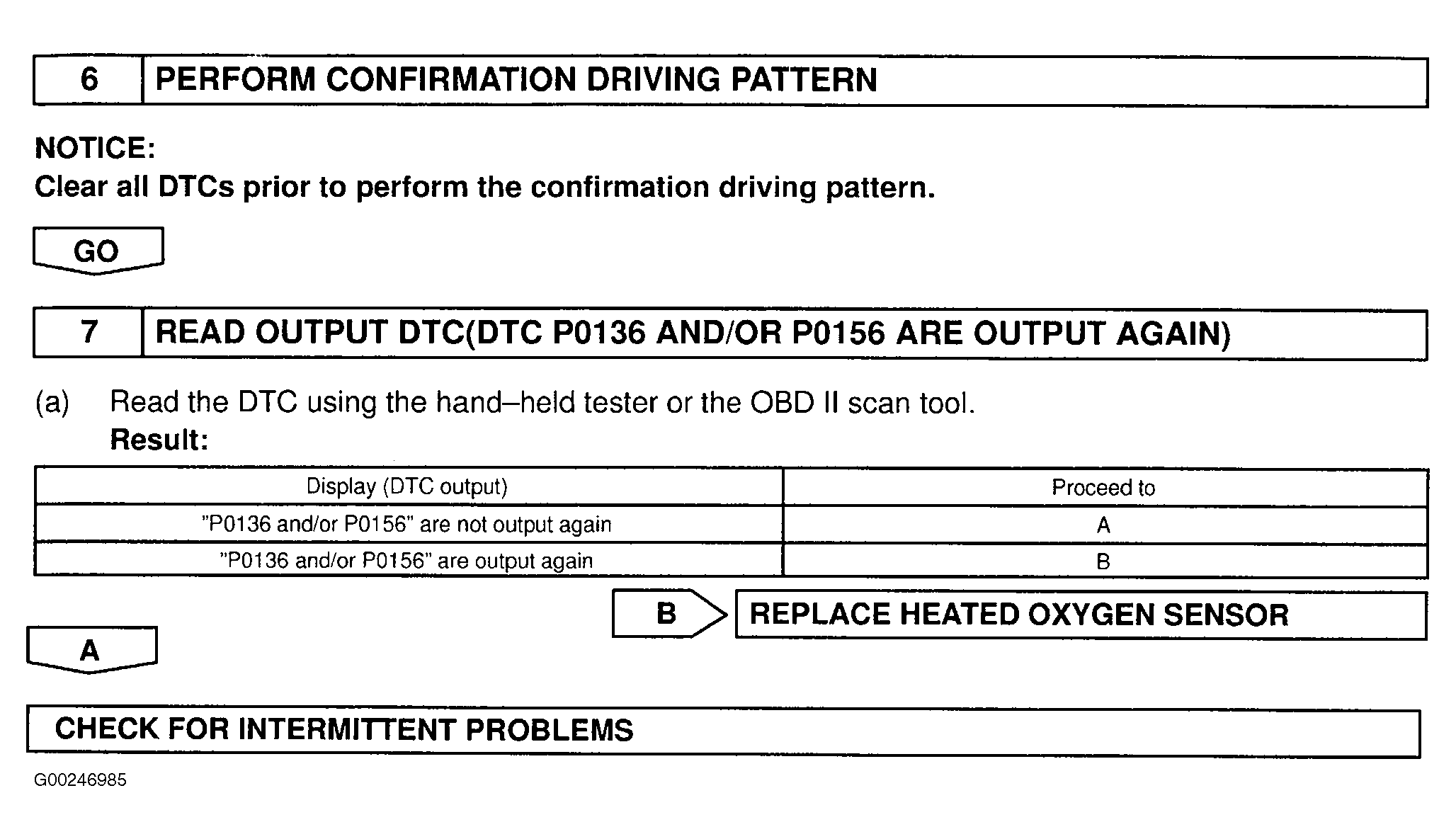

Fig 3: Diagnosis & Repair Of Oxygen Sensor Circuit Malfunction Sensor 2 (Step 6-7)
