Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 4 .

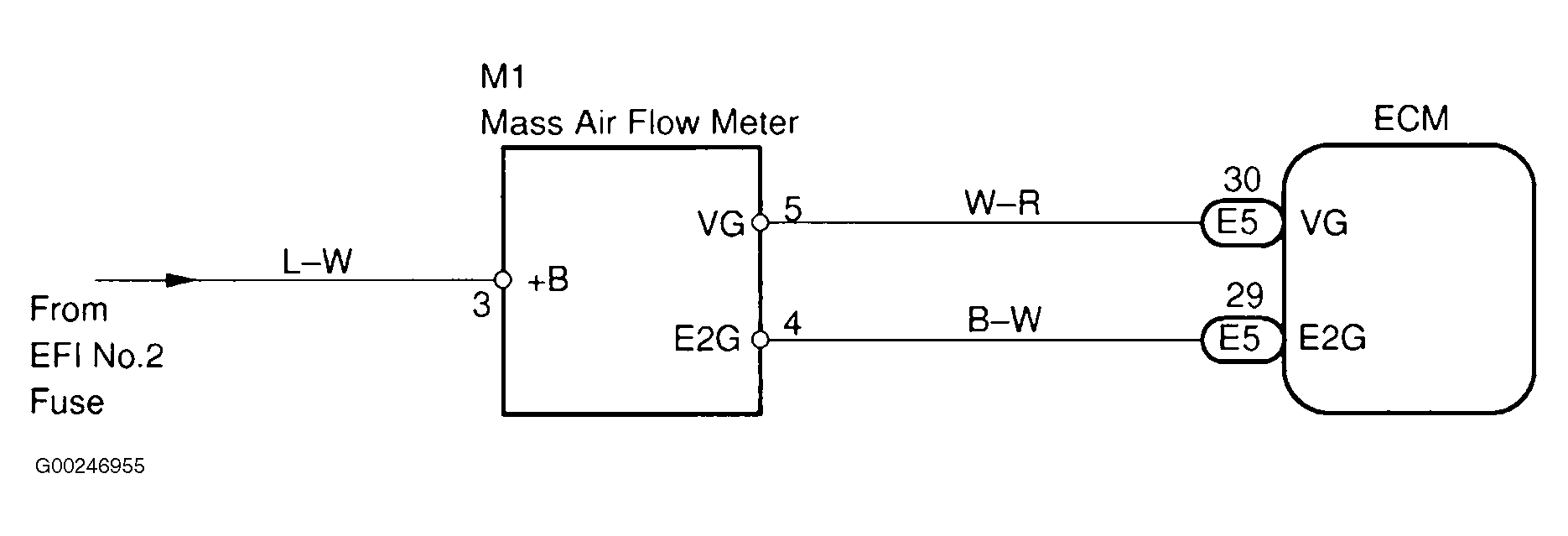

Fig 1: Mass Airflow Meter Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

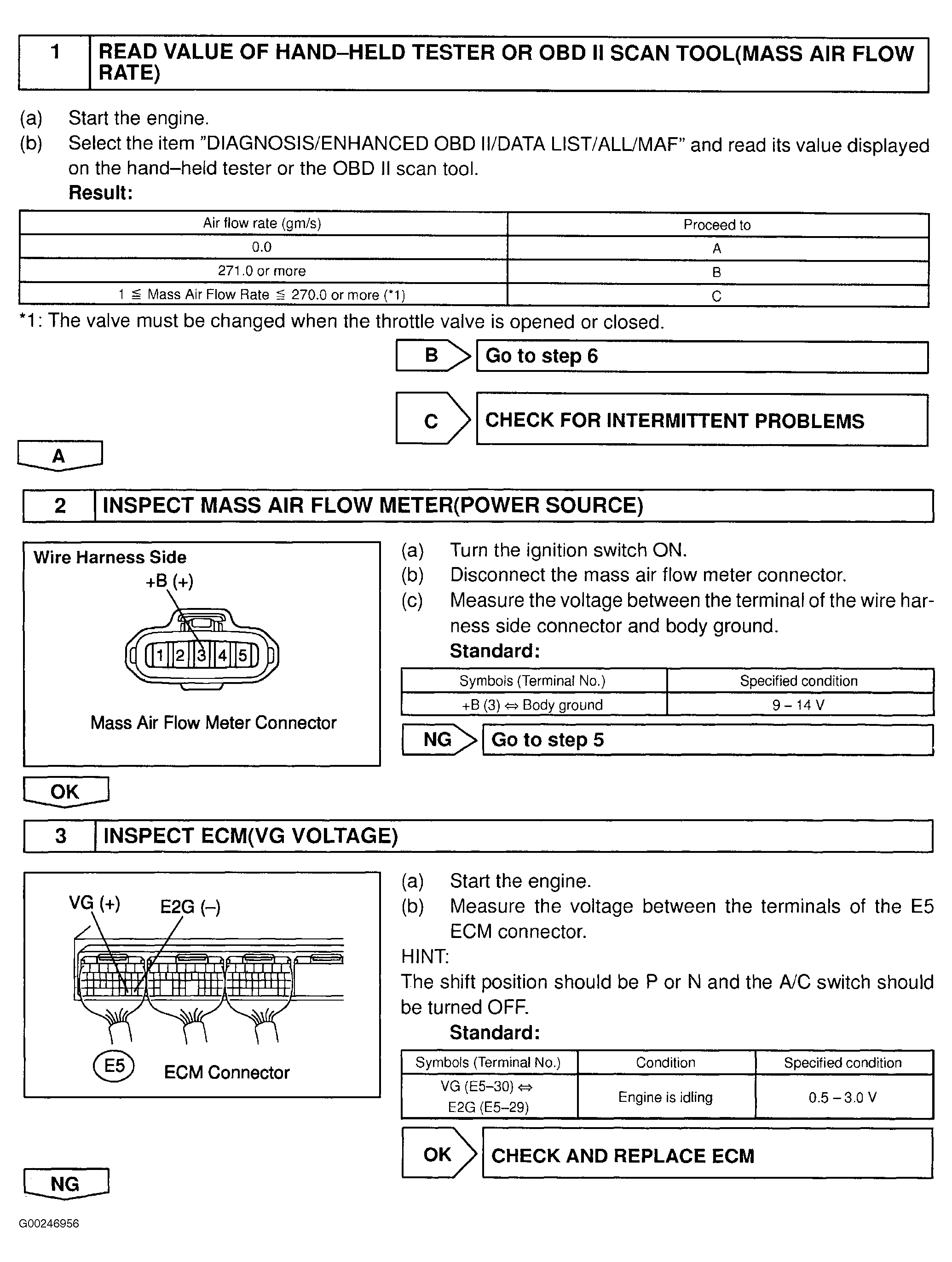

Fig 2: Diagnosis & Repair Of Mass Air Flow Meter Circuit (Step 1-3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

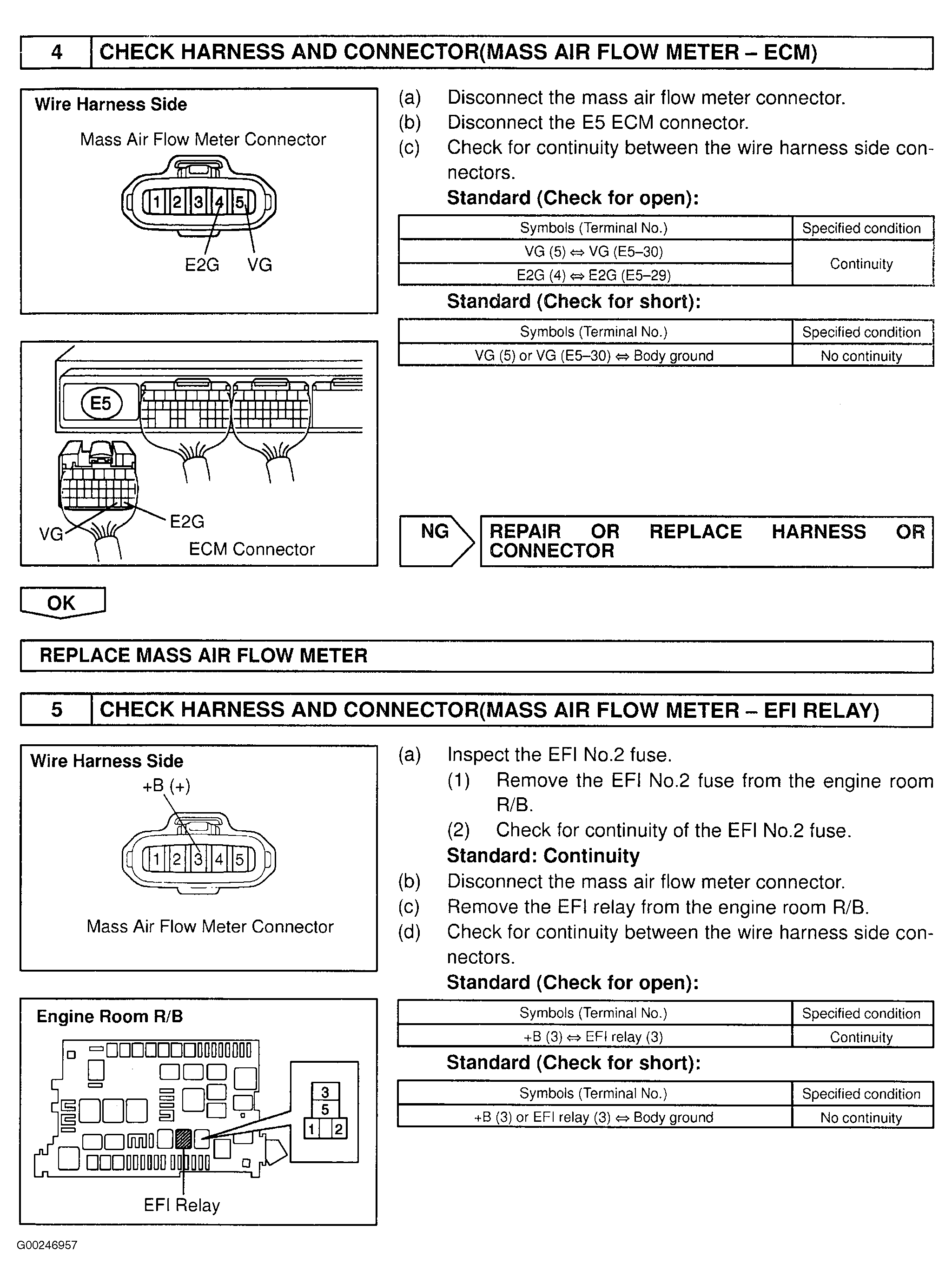

Fig 3: Diagnosis & Repair Of Mass Air Flow Meter Circuit (Step 4-5)

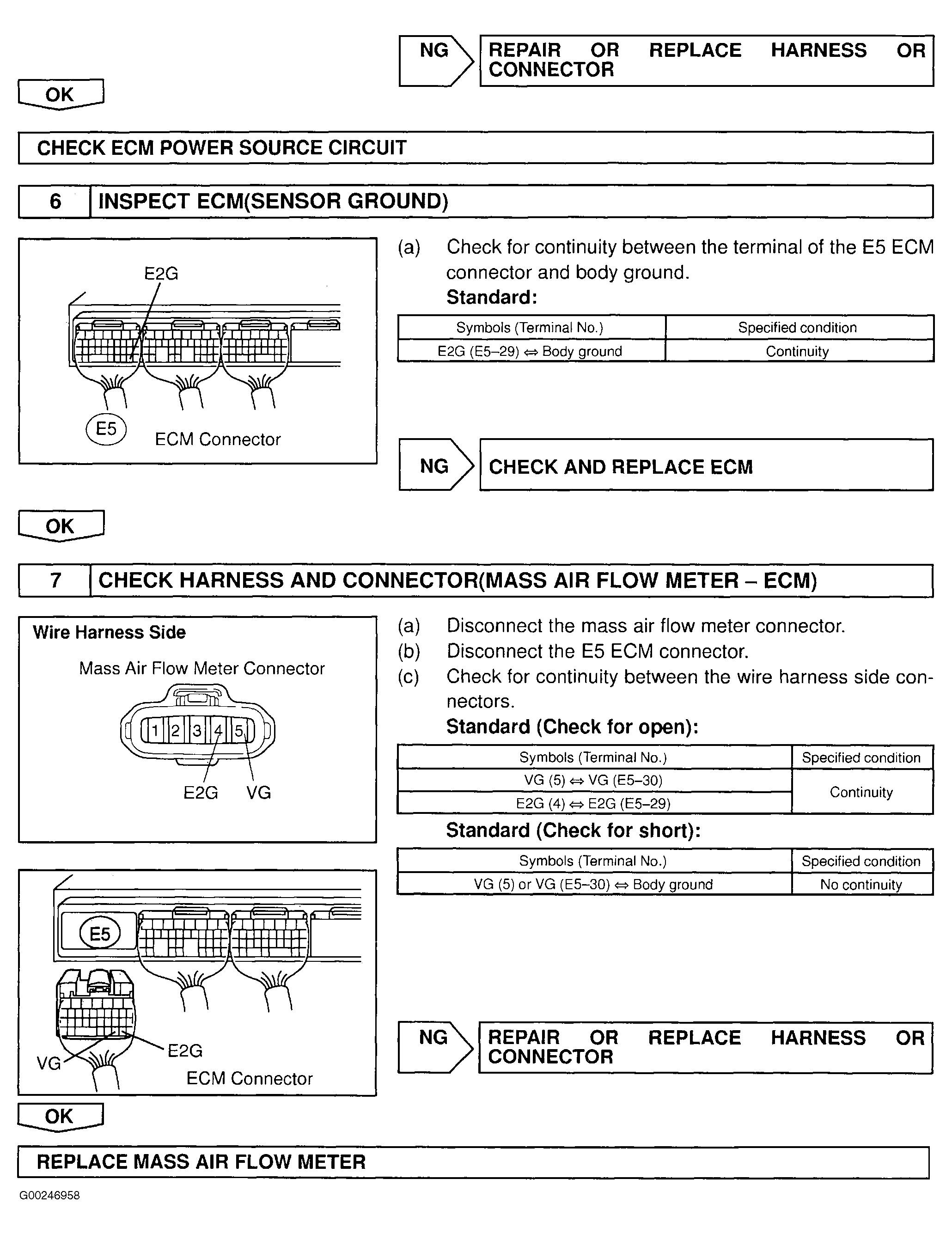

Fig 4: Diagnosis & Repair Of Mass Air Flow Meter Circuit (Step 6-7)
