Power Door Lock Motor

WARNING: This page is about a different car, the 2003 Toyota Camry and 2002 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door panel for access to door lock motor assembly. See POWER DOOR LOCK ASSEMBLY (FRONT DOORS)  or POWER DOOR LOCK ASSEMBLY (REAR DOORS)  under REMOVAL & INSTALLATION. Disconnect 10-pin electrical harness connector from door lock assembly.

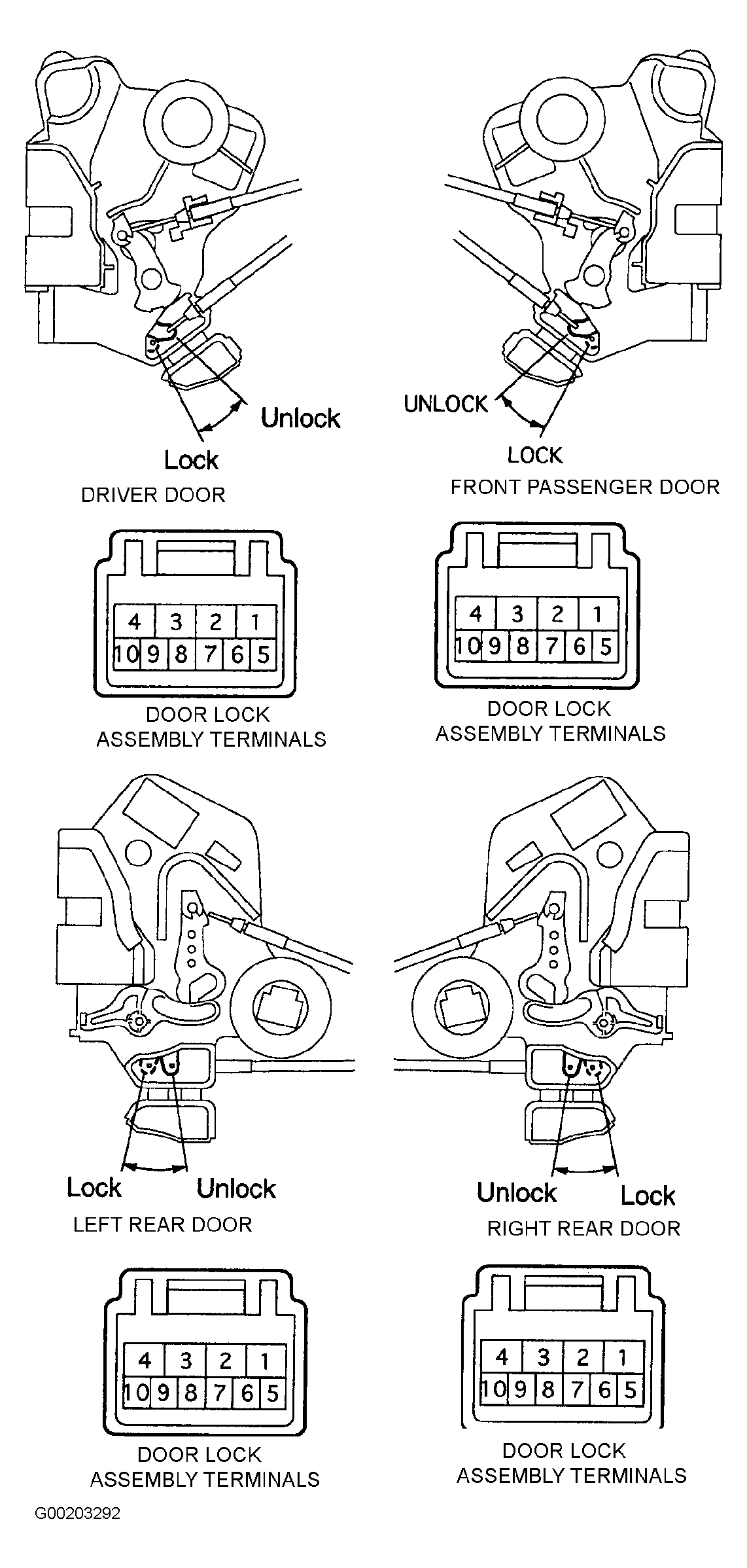

  2. Using jumper wires, apply battery voltage and ground to specified terminals on door lock assembly and check that door lock motor moves door lock link to UNLOCK position. Reverse jumper wires so polarity is reversed and check that door lock motor moves door lock link to LOCK position. See Figure. Replace door lock assembly if operation is not as specified. See POWER DOOR LOCK ASSEMBLY (FRONT DOORS)  or POWER DOOR LOCK ASSEMBLY (REAR DOORS)  under REMOVAL & INSTALLATION.
