Readiness Monitor Drive Pattern

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For readiness monitor drive pattern description, see Fig 1.

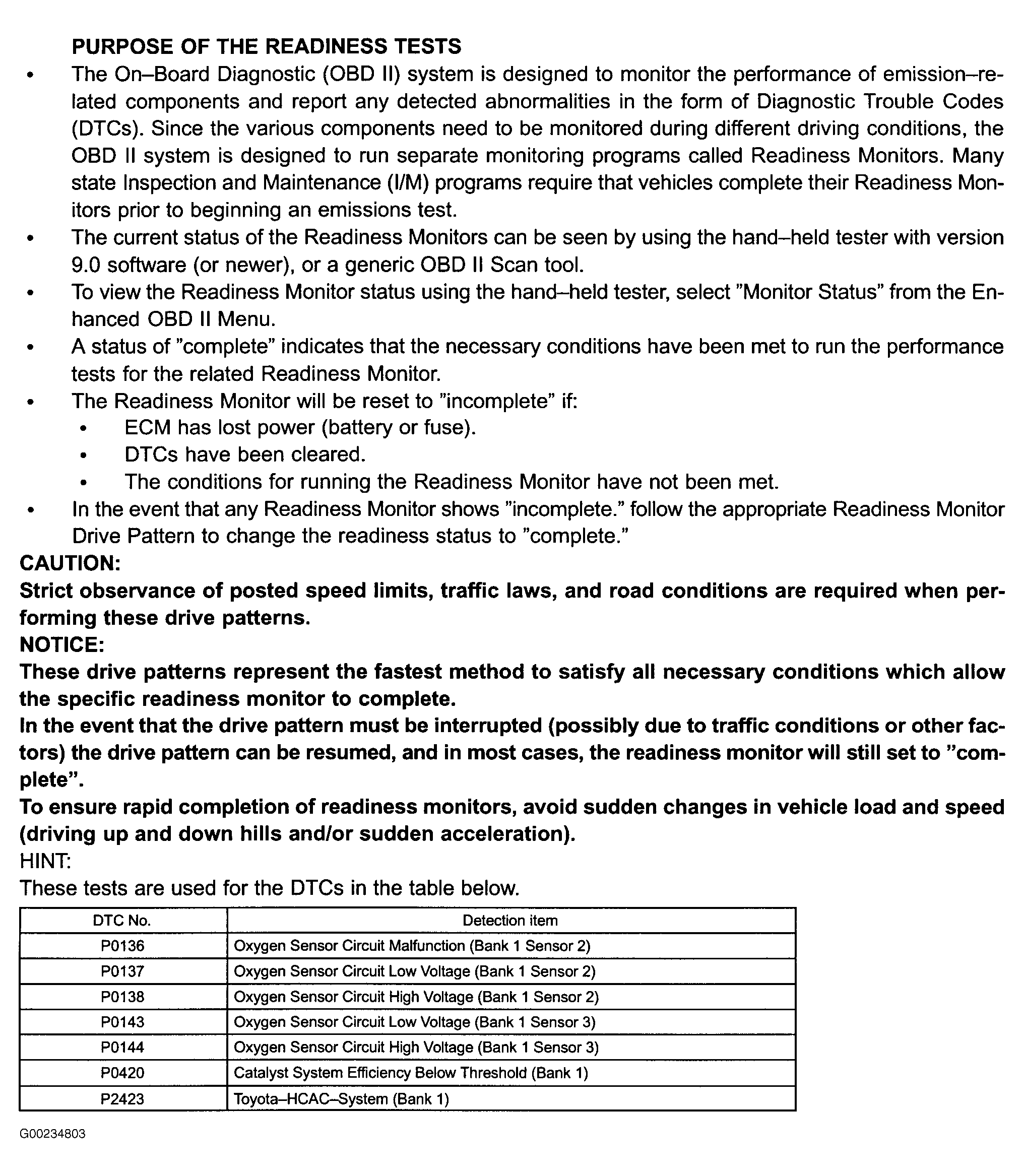

Fig 1: Readiness Monitor Drive Pattern Description
G00234803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
