Mode 06 Data

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

To read MODE 06 DATA, see Fig 1.

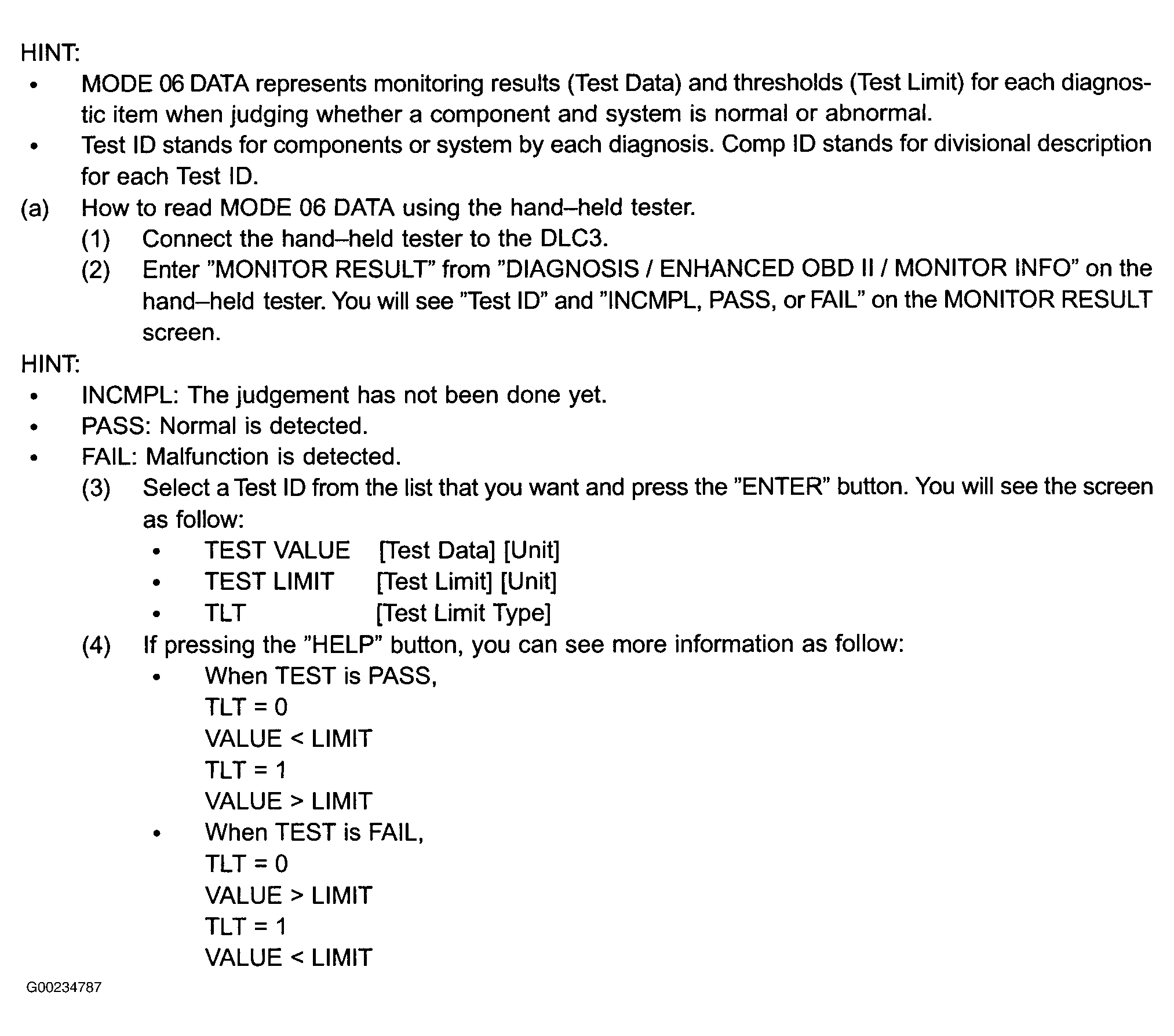

Fig 1: Reading MODE 06 DATA
G00234787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
