Data List
WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
According to the DATA LIST displayed by the OBD II scan tool or hand-held tester, you can read the value of the switches, sensors, actuators and so on without parts removal. Reading the DATA LIST as a first step of trouble shooting is one of the method to shorten the labor time.
NOTE:
The values given below for normal condition are representative values. A vehicle may still be normal even if it's value differs from those listed here. So, do not solely depend on the normal condition here when deciding whether a part is faulty or not.
- Warm up the engine and turn the ignition switch OFF.
- Connect the OBD II scan tool or the hand-held tester to the DLC3 . See Figure.
- Turn the ignition switch and hand-held tester or OBD II scan tool ON.
- Select the item DIAGNOSIS / ENHANCED OBD II / DATA LIST.

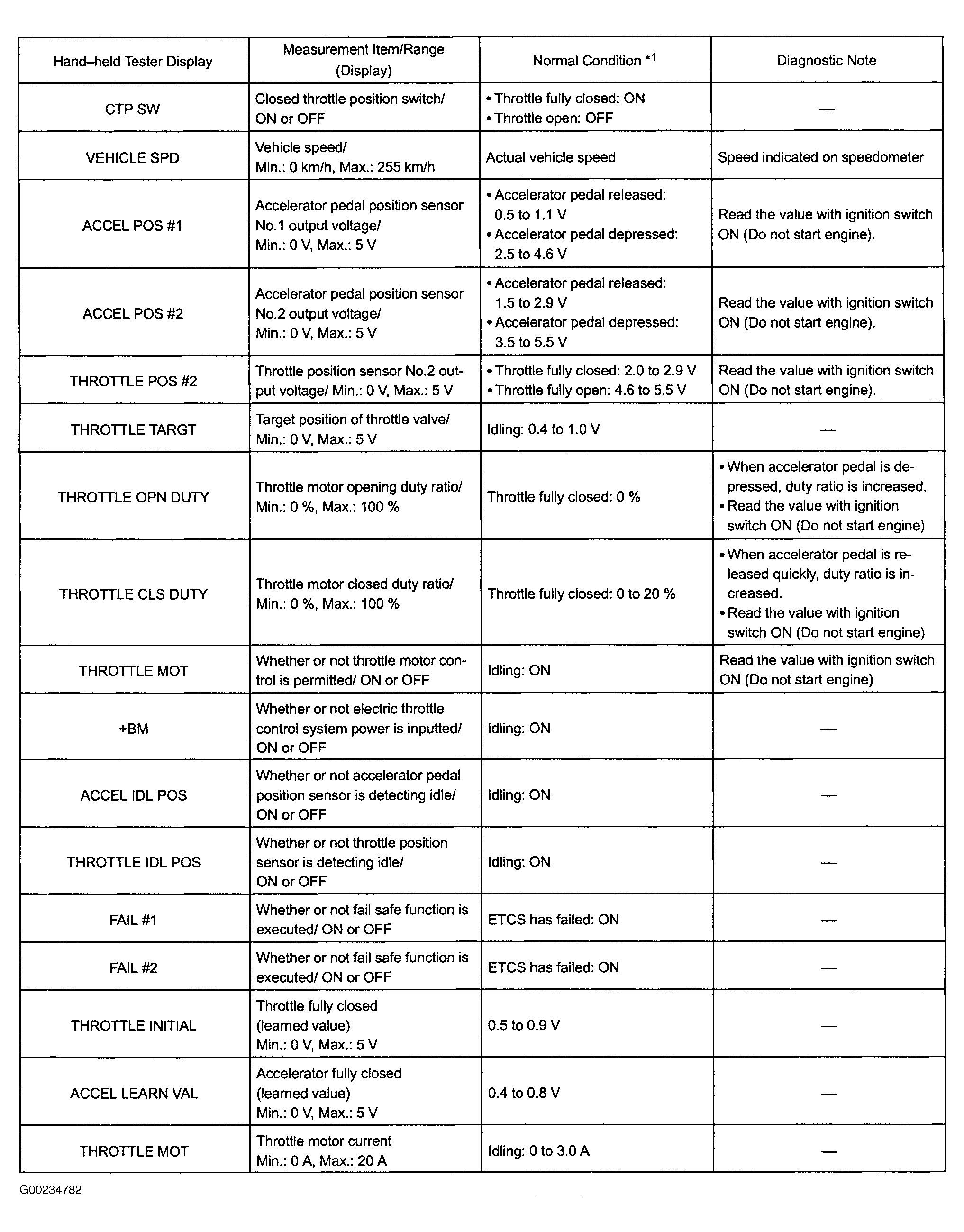

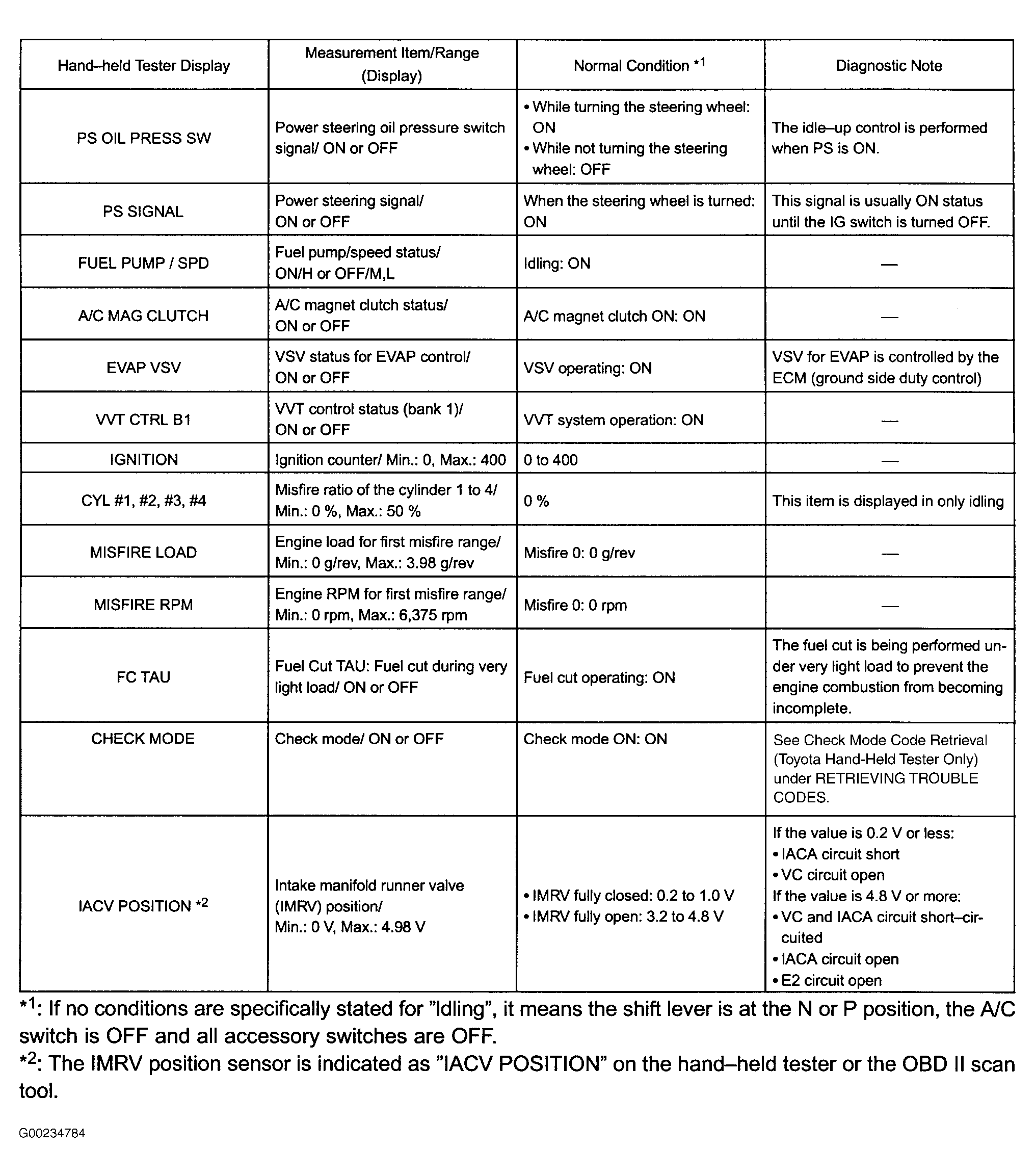

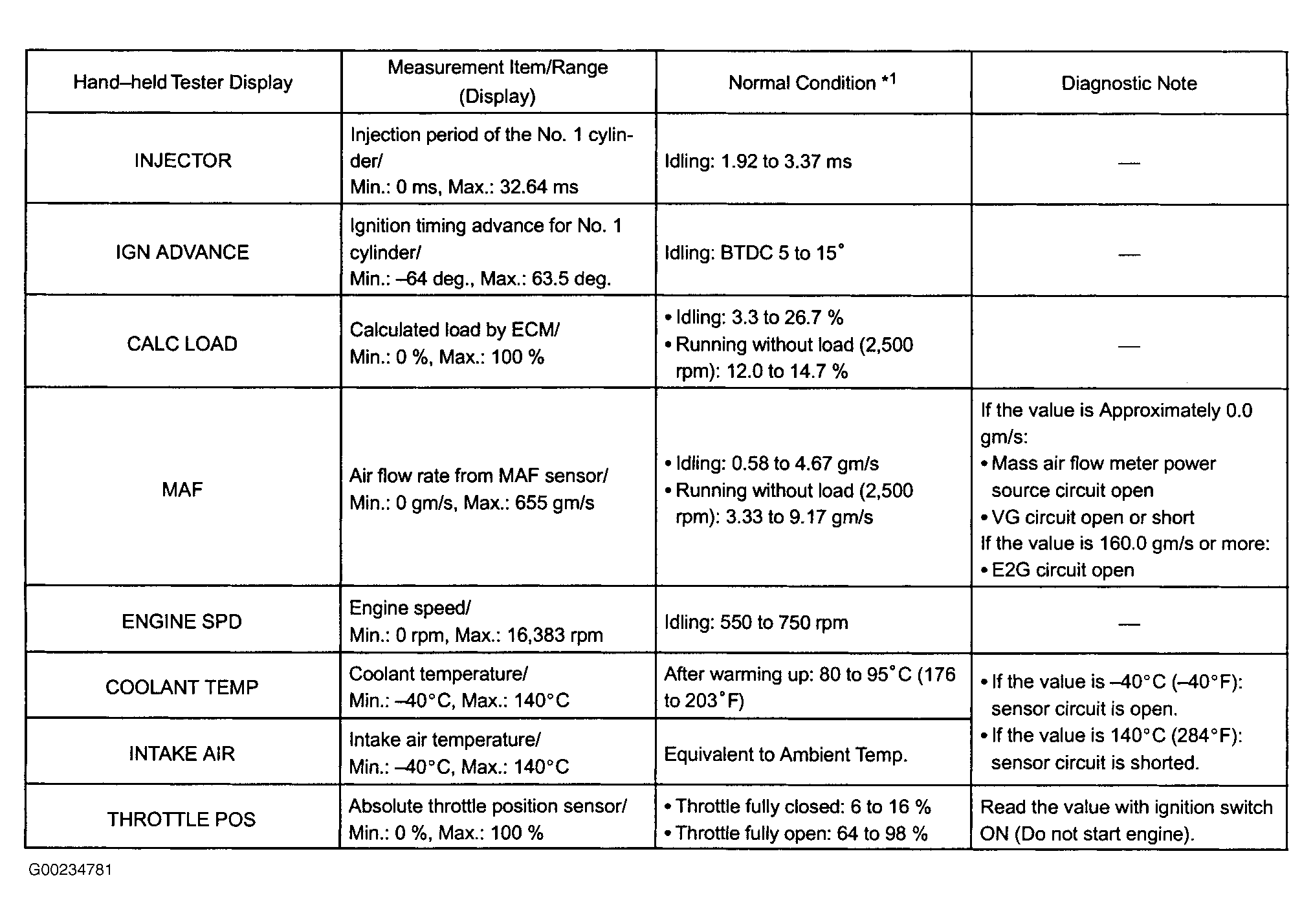

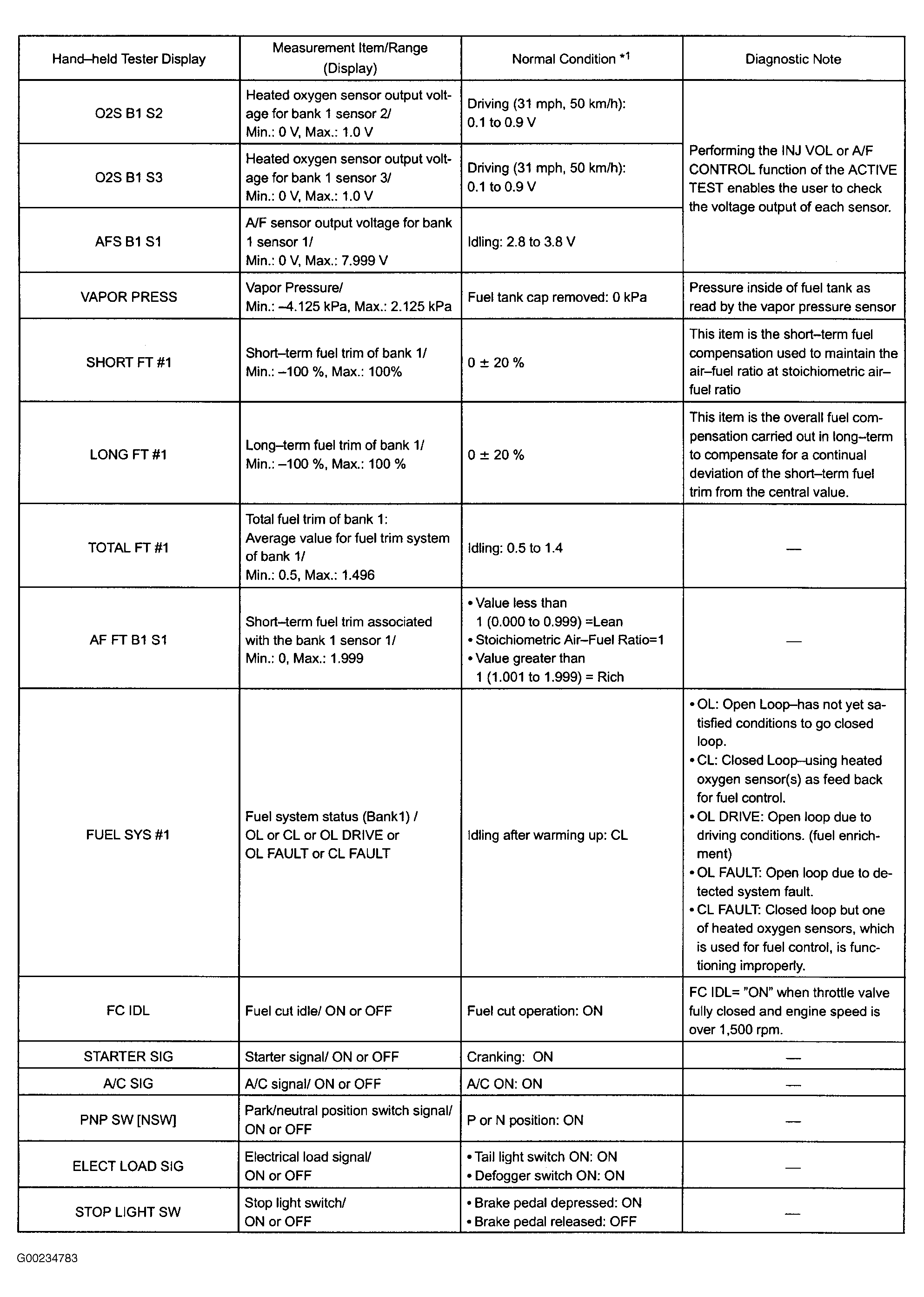

- According to the display on tester, read the DATA LIST. See Fig 1-Fig 4 .
