Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

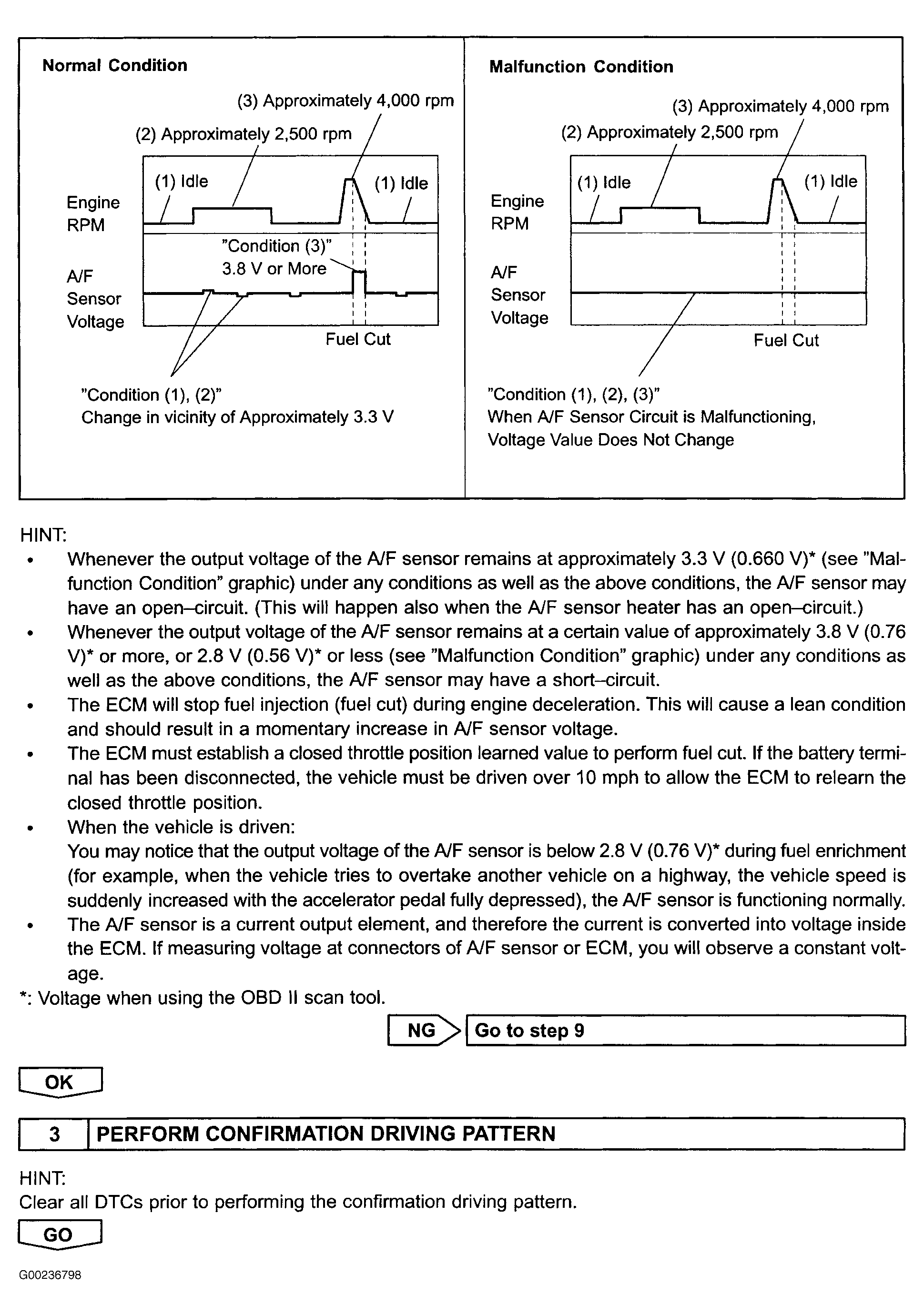

  • DTC P2A00 may be also detected, when the air-fuel ratio is stuck rich or lean.
  • A low A/F sensor voltage could be caused by a rich air fuel mixture. Check for conditions that would cause the engine to run rich.
  • A high A/F sensor voltage could be caused by a lean air fuel mixture. Check for conditions that would cause the engine to run lean.
  • Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When trouble shooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

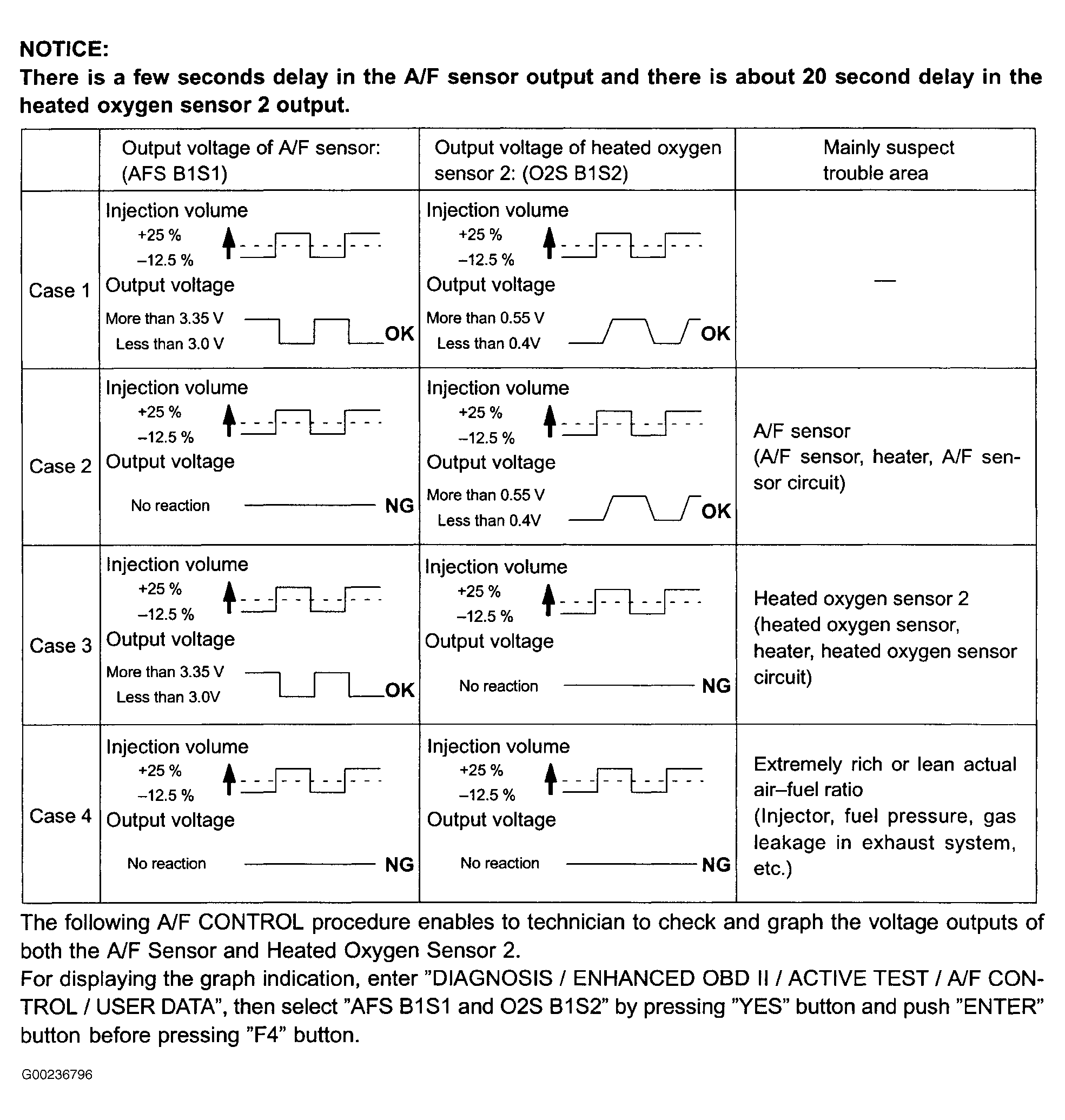

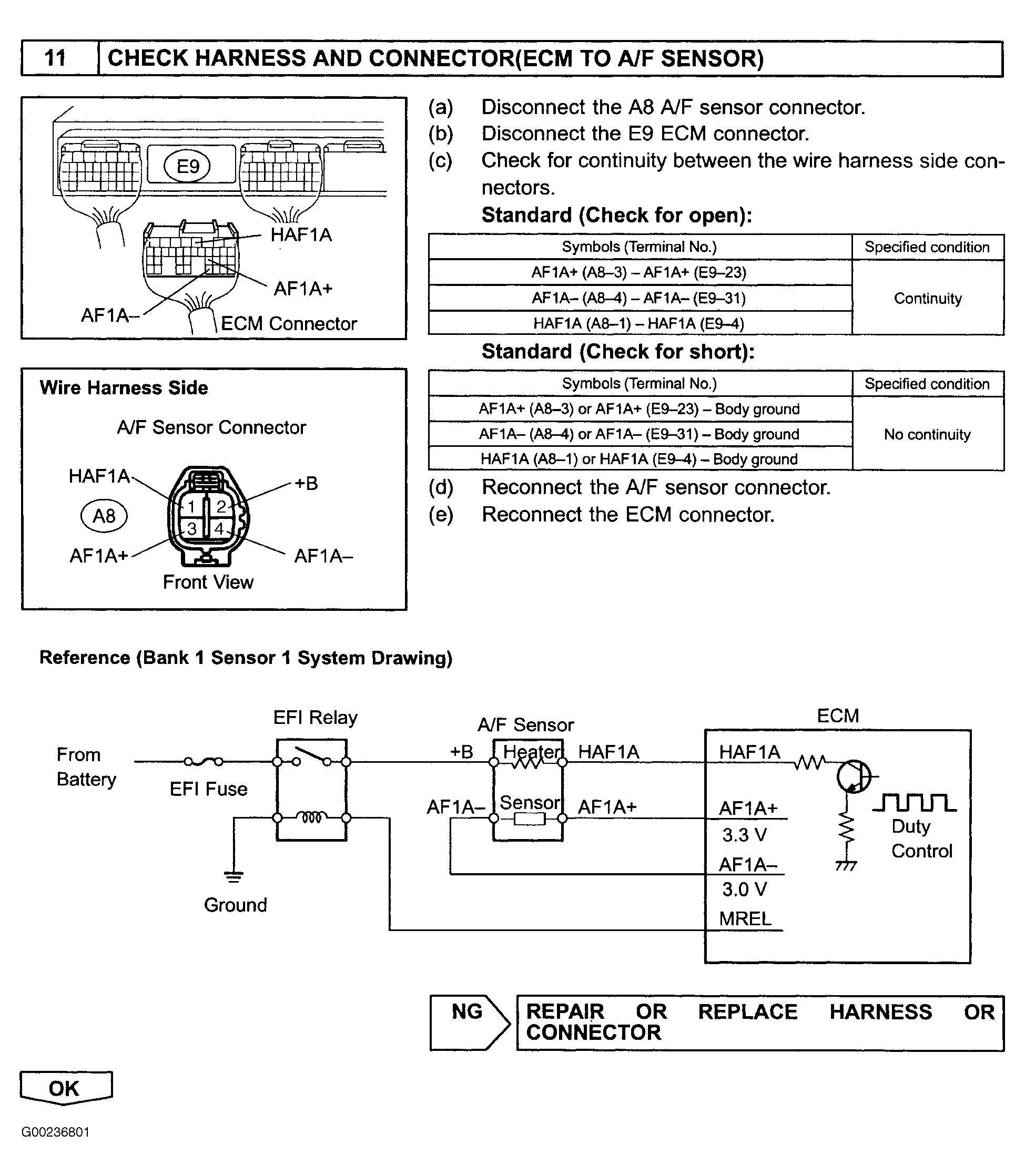

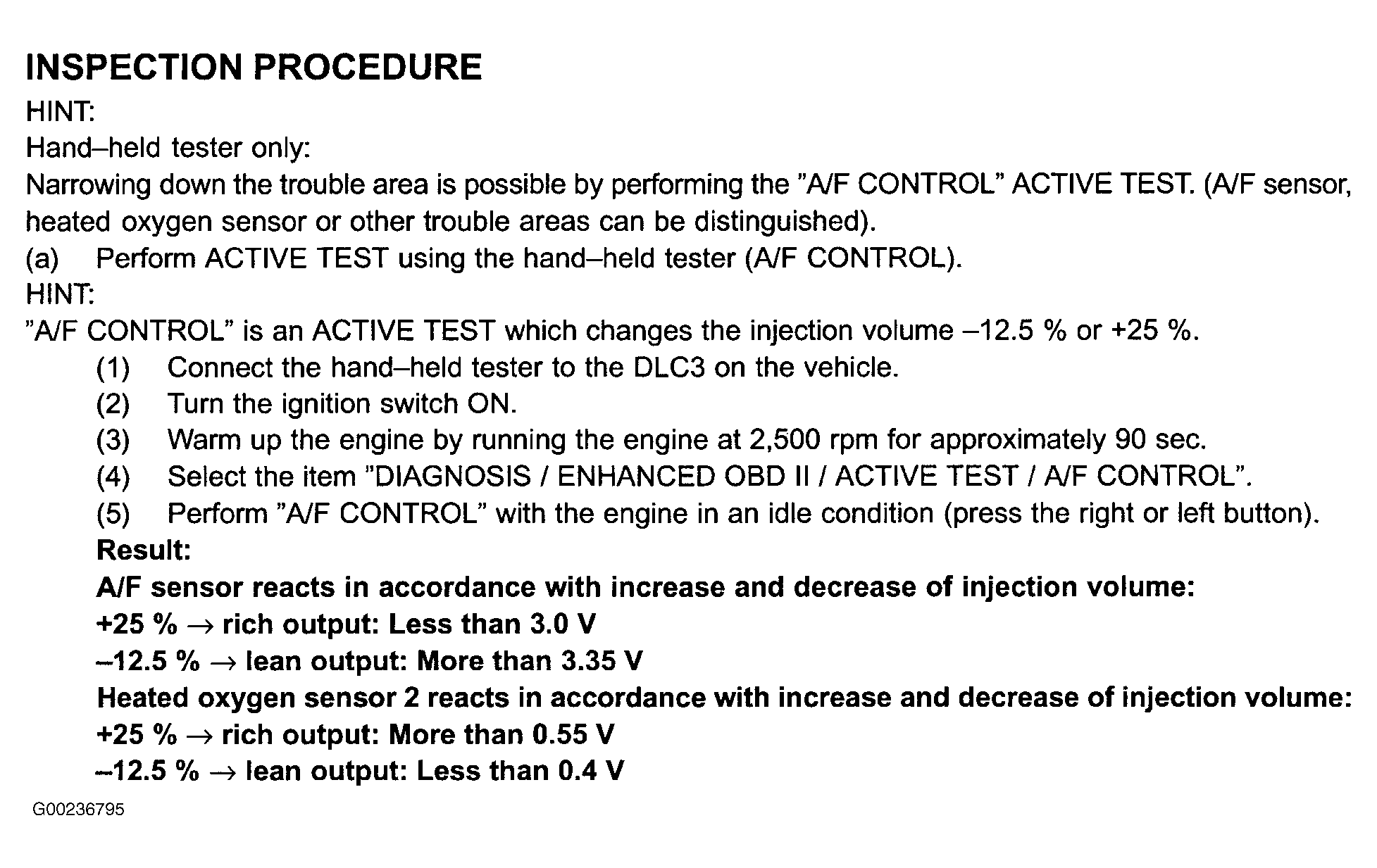

For wiring diagram, see DTC P2195: OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK NO. 1 SENSOR NO. 1) & DTC P2196: OXYGEN (A/F) SENSOR SIGNAL STUCK RICH (BANK NO. 1 SENSOR NO. 1) . For diagnosis and repair active test, see Figure and Figure . For diagnosis and repair:

For relevant DTC chart, see DIAGNOSTIC TROUBLE CODE DEFINITIONS . For confirmation driving pattern, see DTC P2195: OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK NO. 1 SENSOR NO. 1) & DTC P2196: OXYGEN (A/F) SENSOR SIGNAL STUCK RICH (BANK NO. 1 SENSOR NO. 1) . To check the ECM, see PIN VOLTAGE CHARTS article. For ECM location, see ENGINE CONTROL MODULE LOCATION  under SELF-DIAGNOSTIC SYSTEM. To testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYL article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article.

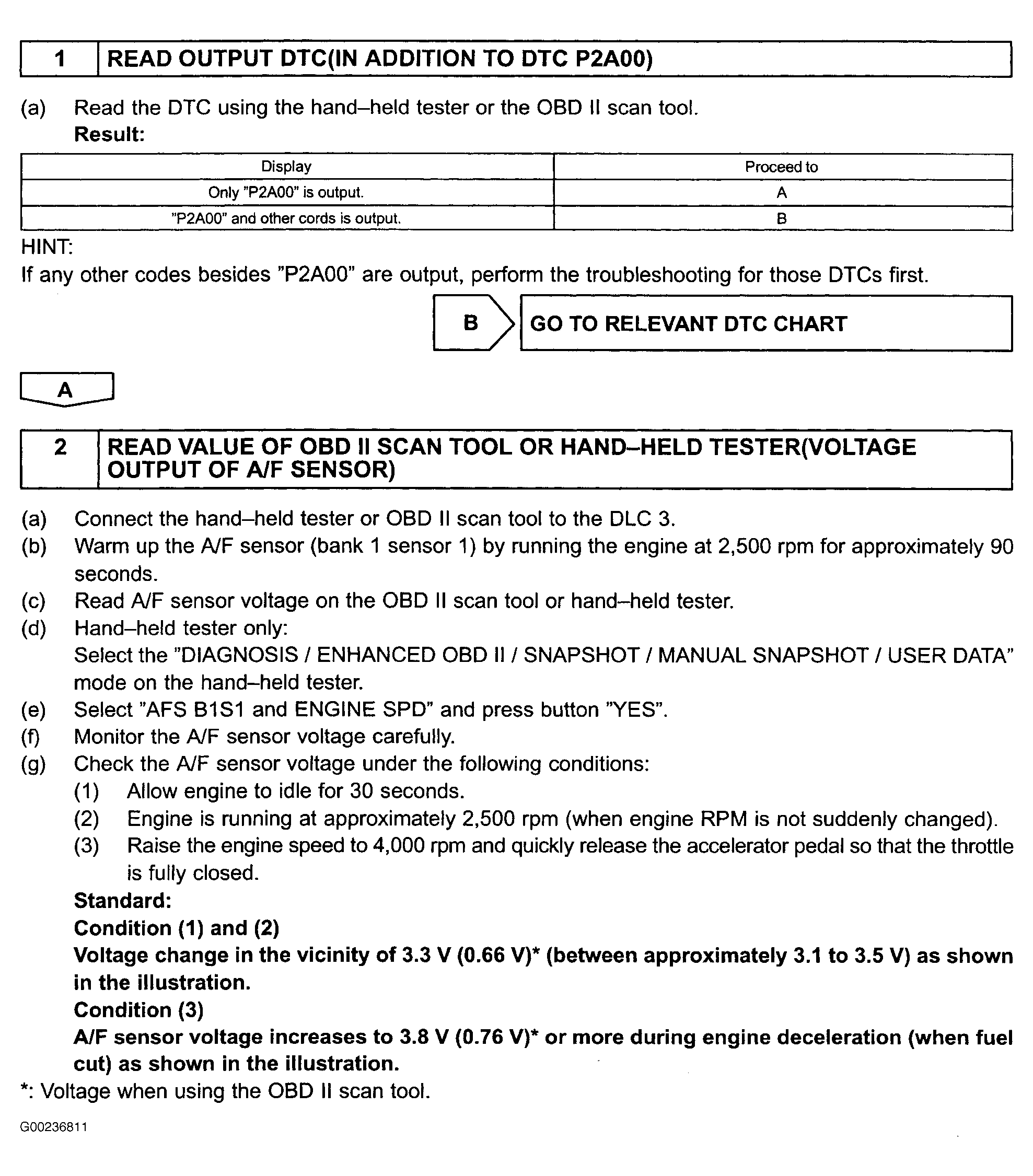

Fig 1: DTC P2A00 Diagnostic Procedure (Steps 1-2)
G00236811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

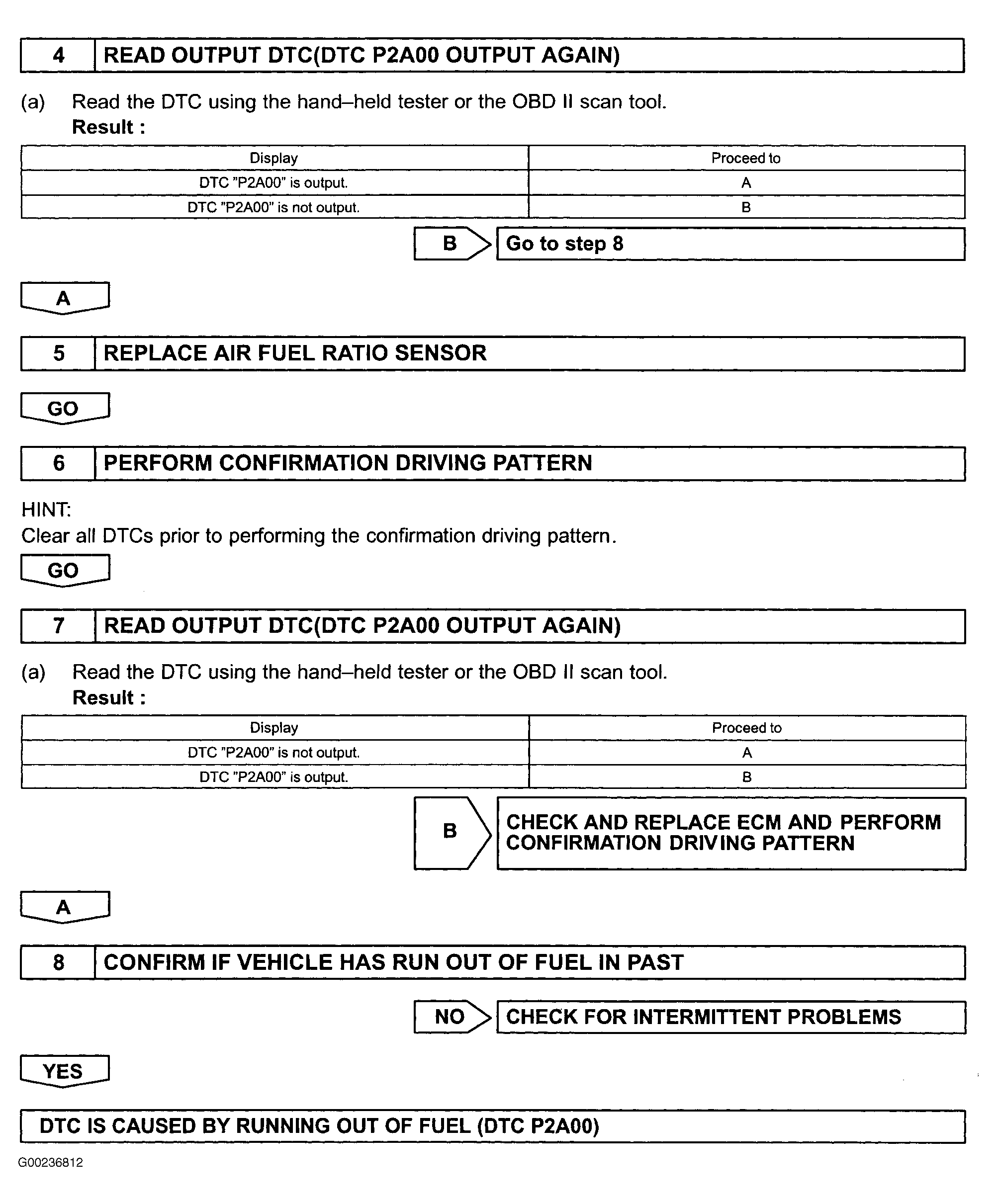

Fig 2: DTC P2A00 Diagnostic Procedure (Steps 4-8)
G00236812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

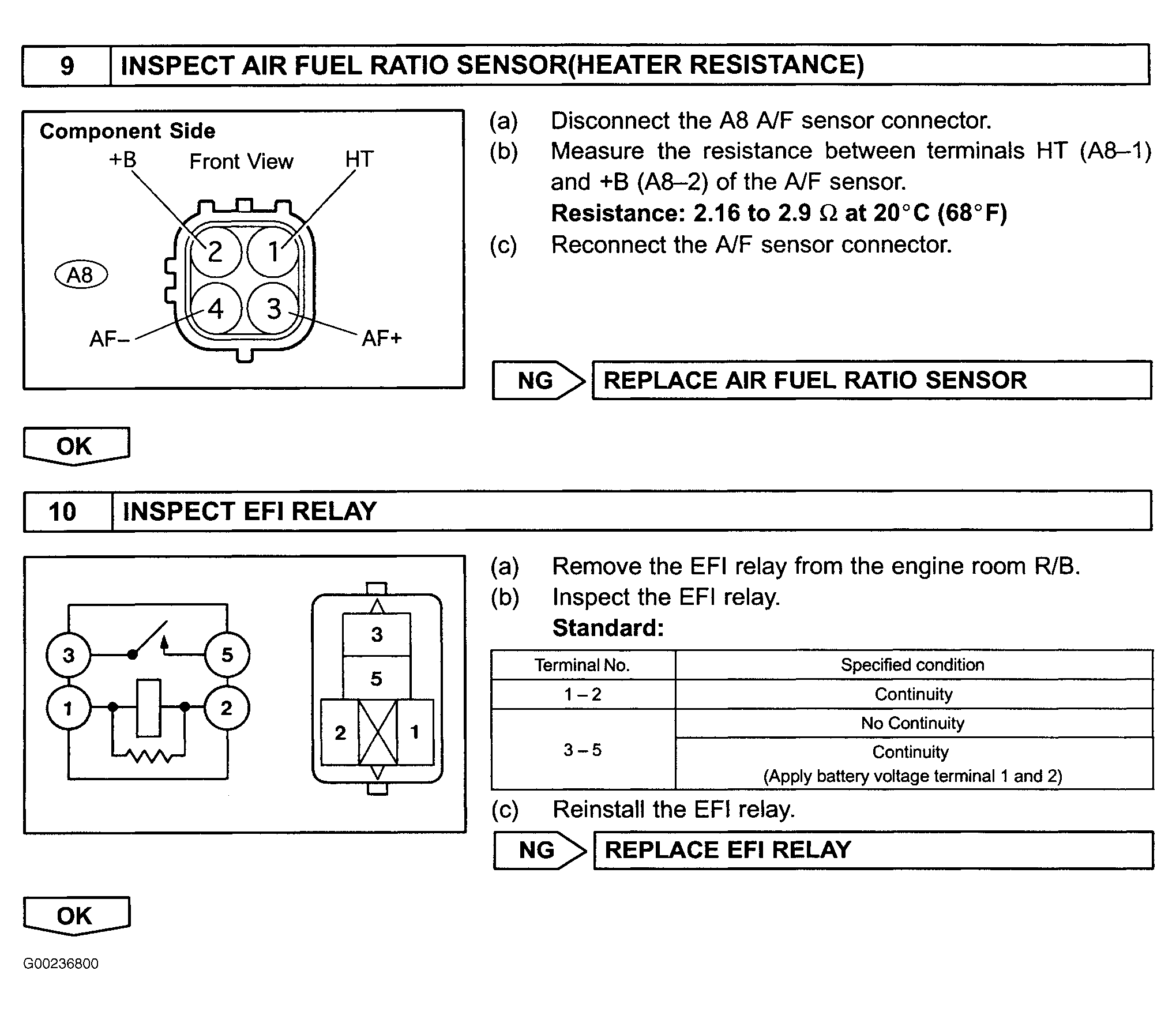

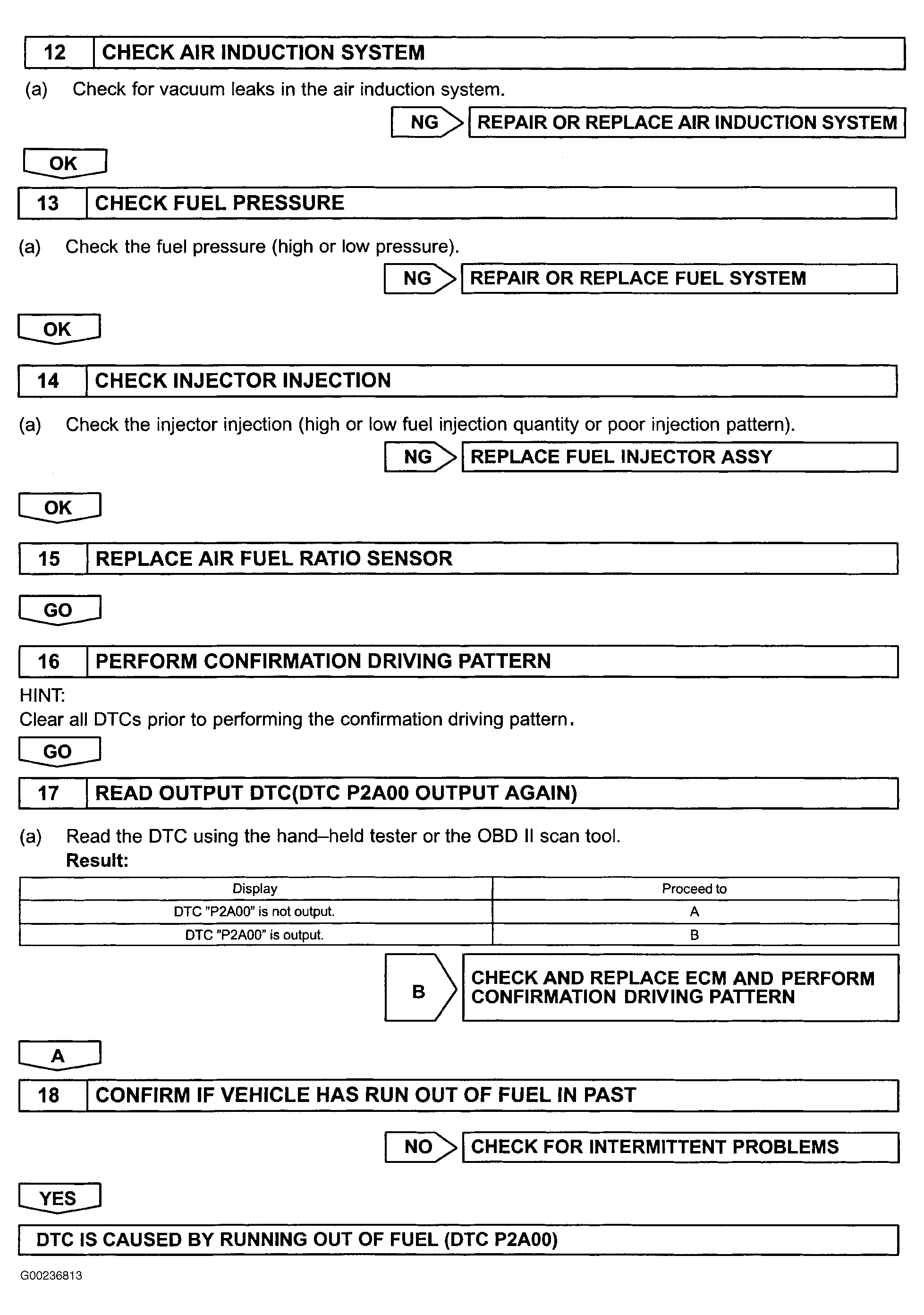

Fig 3: DTC P2A00 Diagnostic Procedure (Steps 12-18)
G00236813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
