Perform A/F Control

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

To perform air-fuel ratio (A/F) control, see Fig 1.

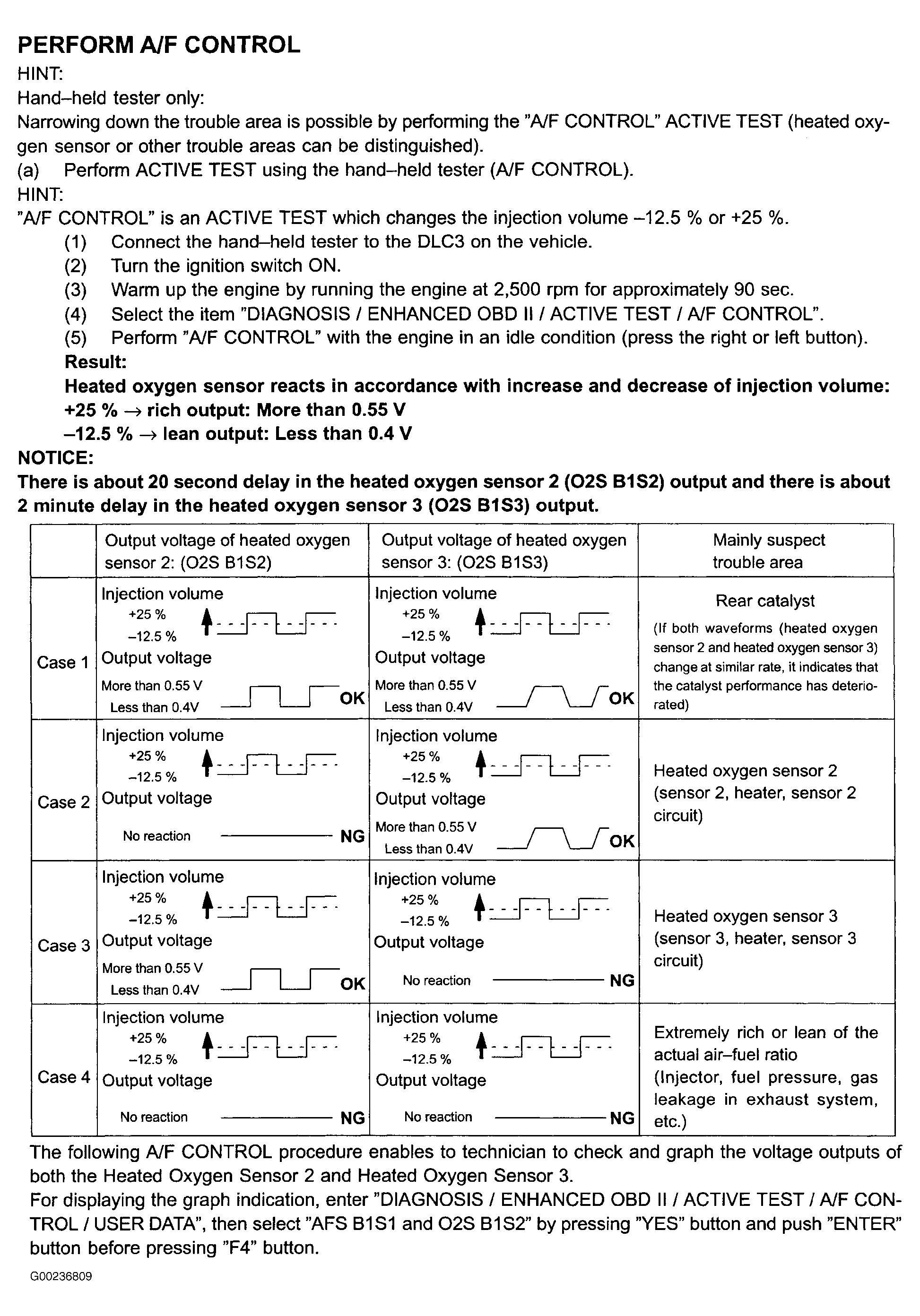

Fig 1: DTC P2423 A/F Control Active Test
G00236809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
