Circuit Description

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For circuit description, see Fig 1 and Fig 2 . DTC detecting condition is when signal length ratio is greater than 0.75.

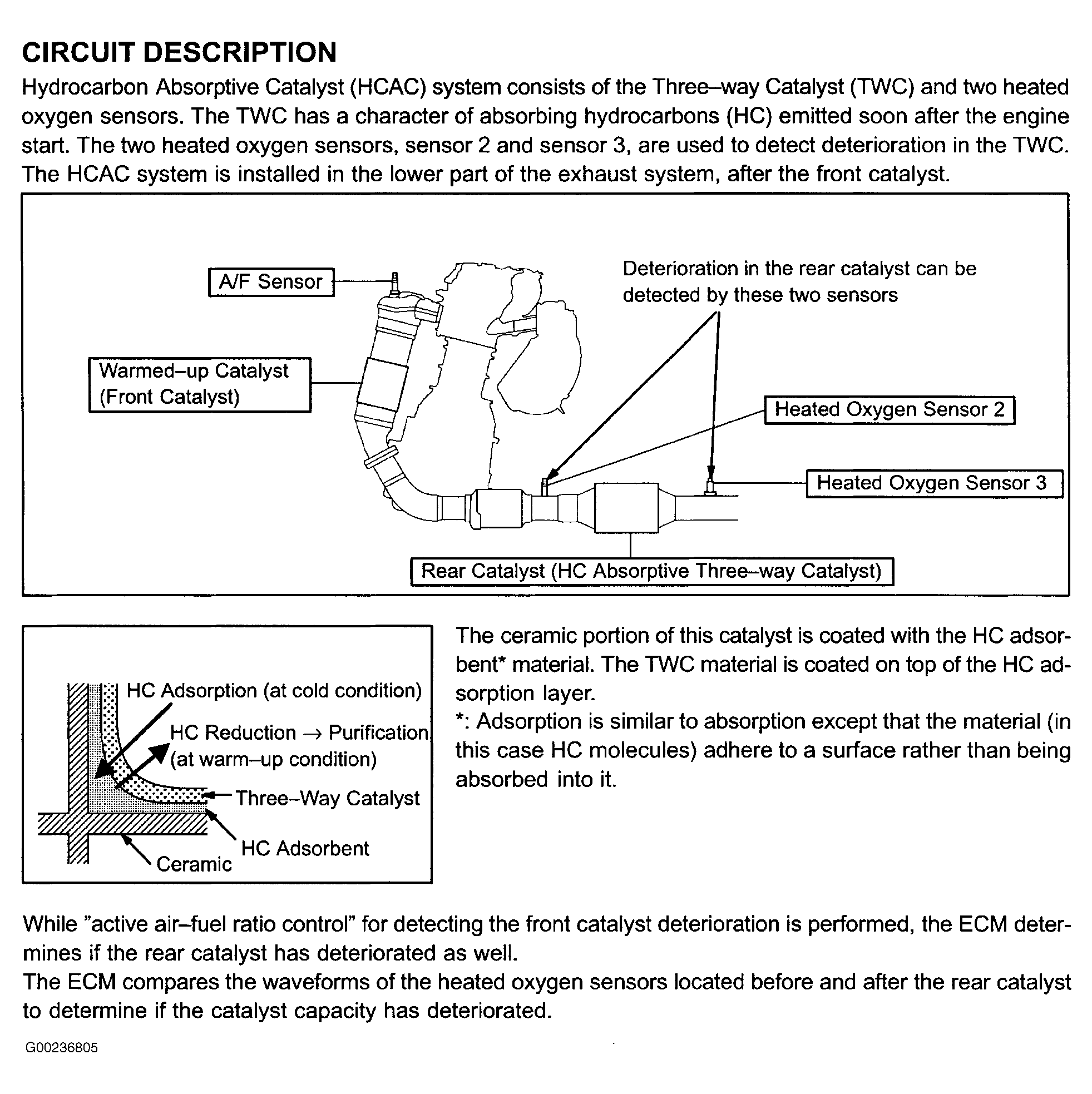

Fig 1: DTC P2423 Circuit Description (1 Of 2)
G00236805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

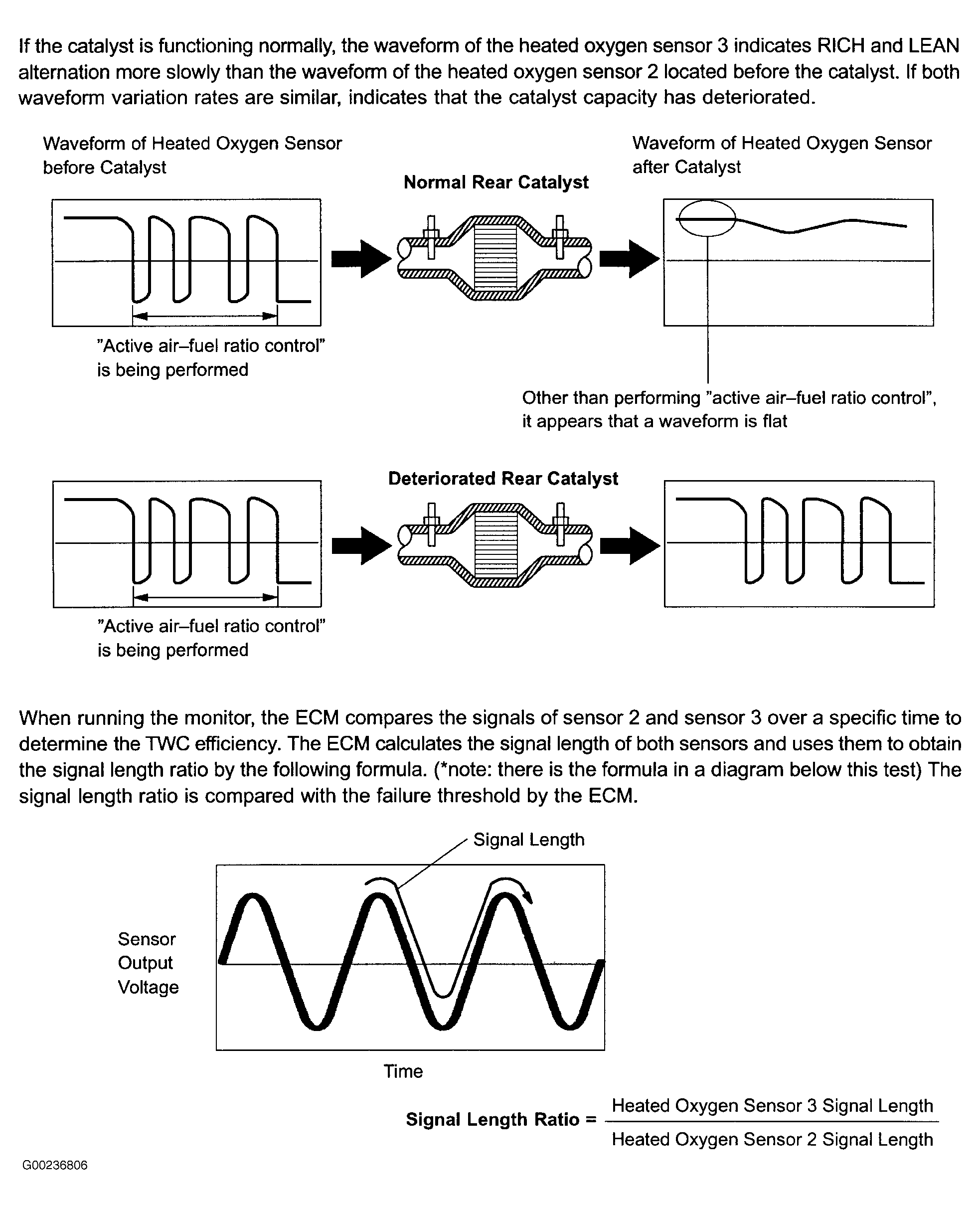

Fig 2: DTC P2423 Circuit Description (2 Of 2)
G00236806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
